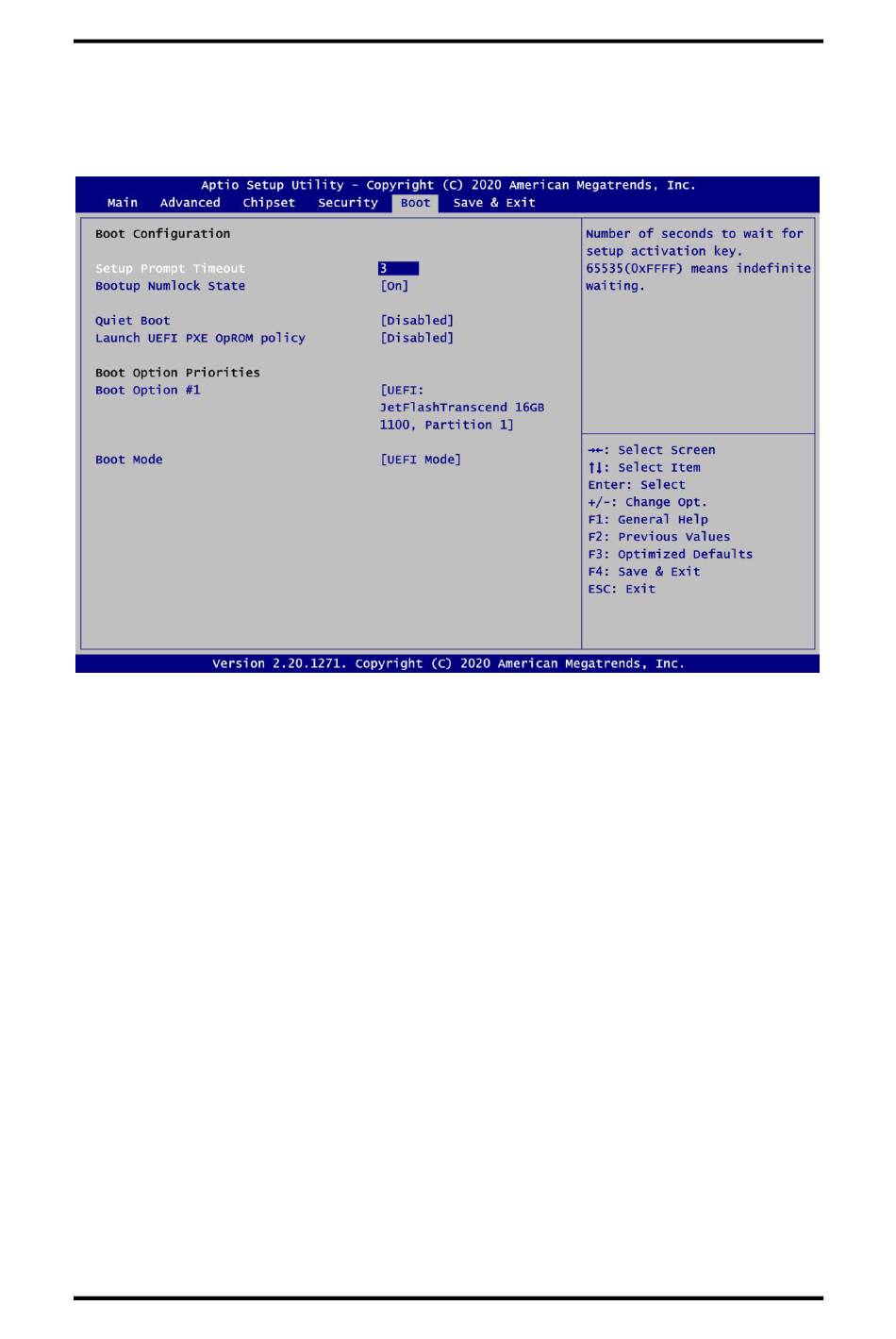

Boot Menu

The Boot menu allows users to change boot options of the system.
 Setup Prompt Timeout
Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite
waiting.
 Bootup NumLock State
Use this item to select the power-on state for the keyboard NumLock.
 Quiet Boot
Select to display either POST output messages or a splash screen during boot-up.

Launch UEFI PXE OpROM policy
Use this item to enable or disable the boot ROM function of the onboard LAN chip when
the system boots up.
Boot Option Priorities [Boot Option #1, ...]

These are settings for boot priority. Specify the boot device priority sequence from the
available devices.
 Boot Mode
Use this option for boot mode settings.
- UEFI Boot: Select support to boot any UEFI-capable OS.
- Legacy Boot: Select support to boot non UEFI-capable OS that expects a legacy BIOS
interface.
