GRAPHTEC CE6000 Series Service Manual page 201

(6) Remove the two M3L6 binding head screws holding the Pen-relay board, and then detch the Pen-
relay board.

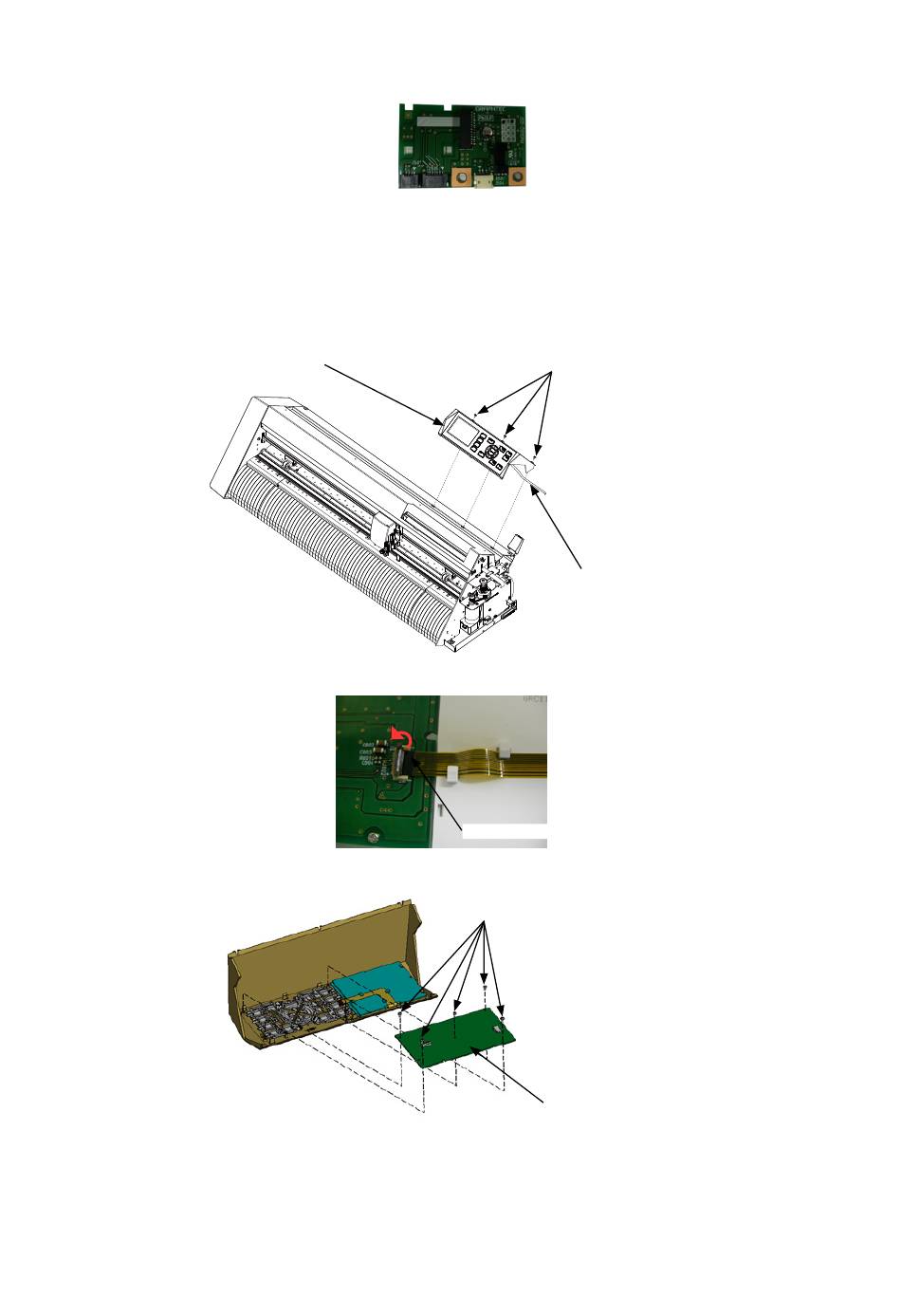

• Removing (D) Control Panel Board, CE6000, (E) LCD, BTG240128SFBWBGG, CE6000
(1) Detach the right side cover.
(2) Disconnect the control panel flexible cable from the main board.
(3) Remove the three M3L5 binding head screws holding the control panel assembly, and then detach
the control panel assembly.
Control panel assembly
(4) Disconnect the LCD flexible cable from the control panel key board.
(5) Remove the five M2L5 self-tapping screws holding the control panel key board.
CE6000-UM-251-9370
12 Target electrical component for WEEE instruction
M3L5 binding head screw
Control panel flexible cable
LCD flexible cable
M2L5 self tapping screw
Control panel key board
12-6
