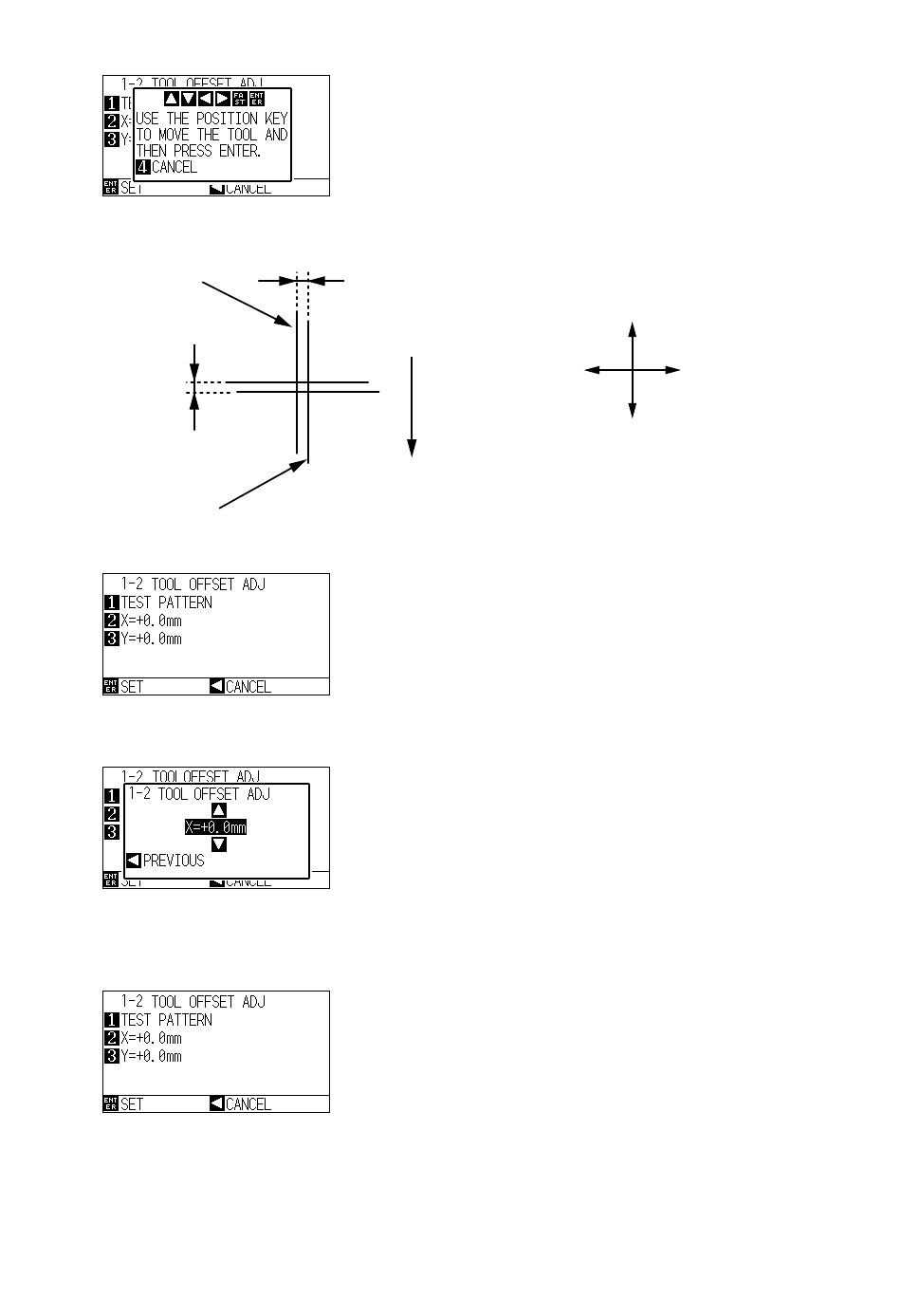

(10) Press the F1 key to display the menu shown below.
(11) Use the ARROW keys to move the pen to an open area to plot the adjustment pattern.
(12) Press the ENTER key to plot the cross marks by pen 1 and pen 2 shown below.
Cross mark
plotted by
pen 1
X
Cross mark plotted by pen 2
(13) When they have been plotted, the menu shown below is displayed.
(14) Measure the offset between the pen 1 cross mark and the pen 2 lines.
(15) Press the F2 key to display the menu shown below.
(16) Set the X-offset value. Press the UP ARROW key or DOWN ARROW key to change the number
based on the pen 1 cross mark.
(17) Press the left position key when the X direction is adjusted.
CE6000-UM-251-9370
Y
Media feed
direction
7-33
7 ELECTRICAL ADJUSTMENTS
+X
+Y -Y
-X
