Mechanical Installation

3 Mechanical Installation
3 3

3.1 Unpacking

3.1.1 Items Supplied
Items supplied may vary according to product configu-
ration.
•
Make sure the items supplied and the
information on the nameplate correspond to the
order confirmation.
•
Check the packaging and the adjustable
frequency drive visually for damage caused by
inappropriate handling during shipment. File any
claim for damage with the carrier. Retain
damaged parts for clarification.
1
T/C: FC-302PK37T2E20H1BGXXXXSXXXXA6BKC4XXXD0
2
P/N: 131X3537
4
0.37kW/ 0.50HP
5
IN: 3x200-240V 50/60Hz 2.2A
6
OUT: 3x0-Vin 0-1000Hz 2.4A
7
CHASSIS/ IP20 Tamb.50 C/122 F
* 1 3 1 X 3 5 3 7 0 1 0 1 2 2 G 4 3 0 *
10

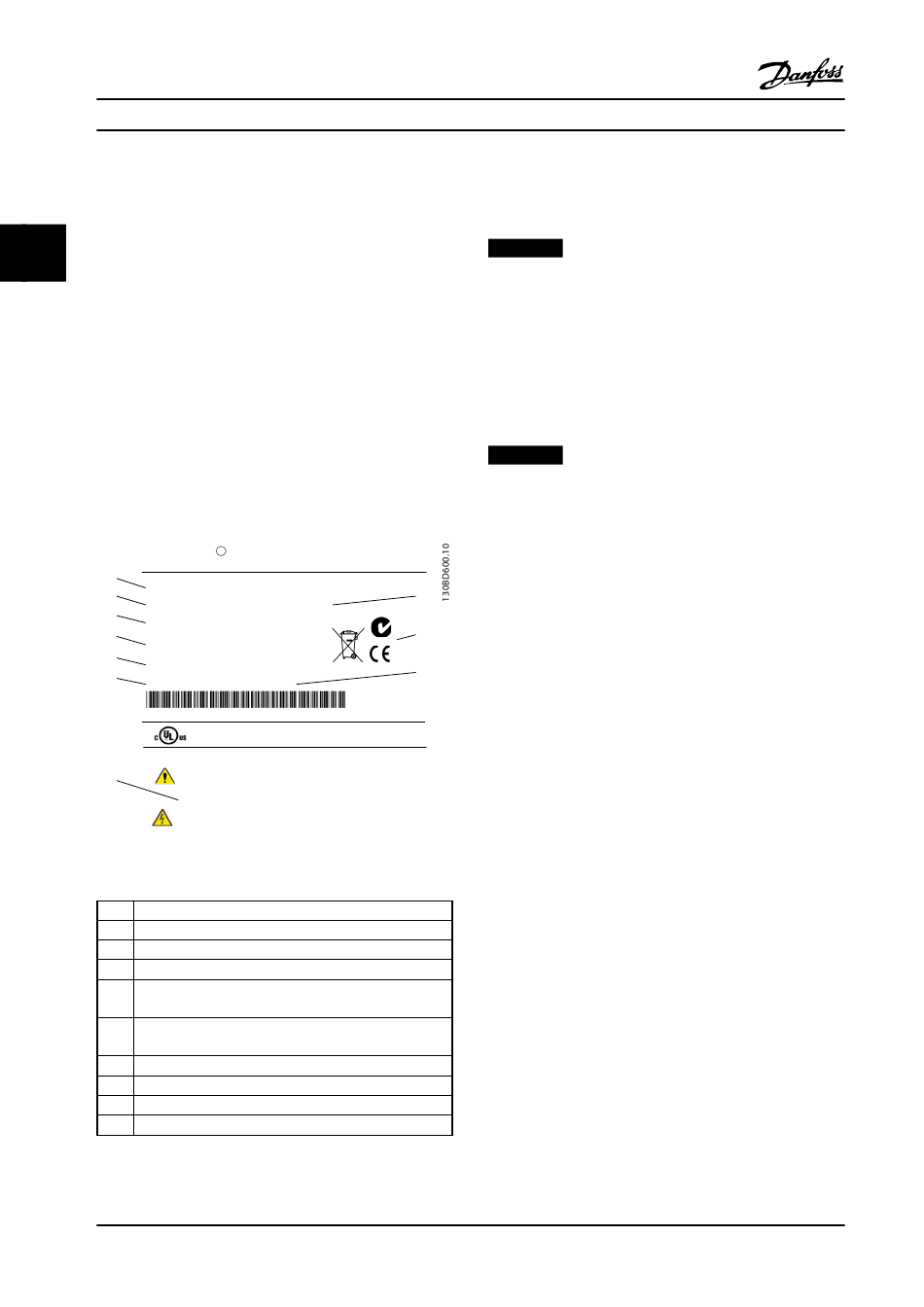

Figure 3.1 Product Nameplate (Example)
1 Type code
2 Order number
3 Serial number
4 Power rating
Input voltage, frequency and current (at low/high
5
voltages)
Output voltage, frequency and current (at low/high
6
voltages)
7 Enclosure type and IP rating
8 Maximum ambient temperature
9 Certifications
10 Discharge time (Warning)
Table 3.1 Legend to Figure 3.1
10
VLT R
Automation Drive
www.danfoss.com
S/N: 010122G430
o o
Listed 76X1 E134261 Ind. Contr. Eq.
CAUTION:
See manual for special condition/mains fuse
`
voir manual de conditions speclales/fusibles
WARNING:
Stored charge, wait 4 min.
`
Charge residuelle, attendez 4 min.
Danfoss A/S © Rev. 2014-02-10 All rights reserved.
Instruction Manual
NOTICE!
Do not remove the nameplate from the adjustable
frequency drive (loss of warranty).
3.1.2 Storage
Ensure that requirements for storage are fulfilled. Refer to
chapter 8.4 Ambient Conditions for further details.

3.2 Installation Environments

NOTICE!
In environments with airborne liquids, particles, or
corrosive gases, ensure that the IP/Type rating of the
equipment matches the installation environment. Failure
to meet requirements for ambient conditions can reduce
lifetime of the adjustable frequency drive. Ensure that
requirements for air humidity, temperature and altitude
are met.
3
9 Vibration and Shock
The adjustable frequency drive complies with requirements
for units mounted on the walls and floors of production
8
premises, as well as in panels bolted to walls or floors.
MADE IN DENMARK
For detailed ambient conditions specifications, refer to
chapter 8.4 Ambient Conditions.
