Danfoss VLT AutomationDrive FC 301 Instruction Manual page 37

Application Set-up Examples

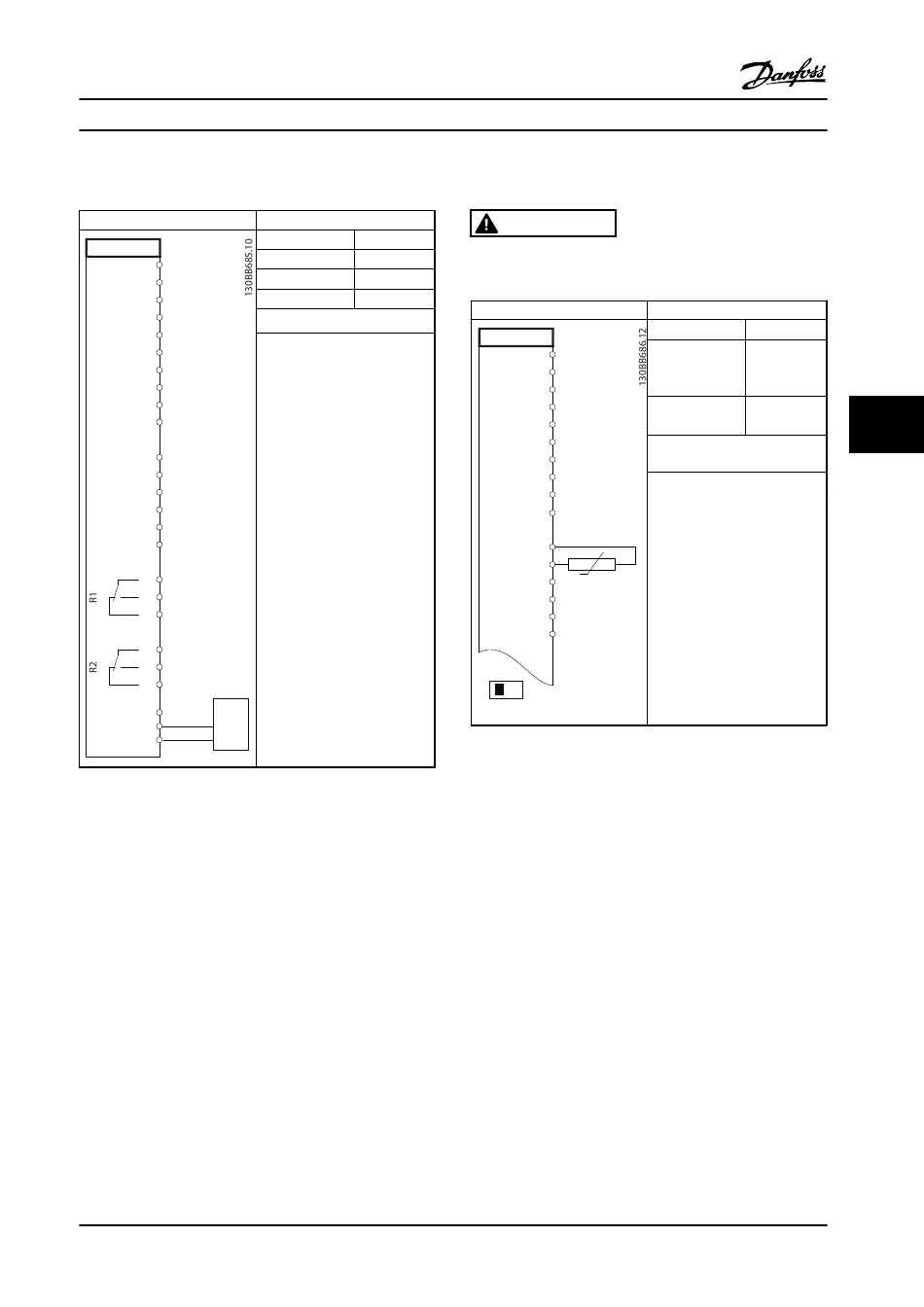

6.1.5 RS-485
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
01
02
03
04
05
RS-485
06
61
+
68
69
-
Table 6.11 RS-485 Network Connection
MG33AN22
Instruction Manual
Parameters
Function Setting
8-30 Protocol FC*
8-31 Address 1*
8-32 Baud Rate 9600*
* = Default Value
Notes/comments:
Select protocol, address and
baud rate in the above-
mentioned parameters.
D IN 37 is an option.
Danfoss A/S © Rev. 2014-02-10 All rights reserved.
6.1.6 Motor Thermistor
CAUTION
Use only thermistors with reinforced or double insulation
to meet PELV insulation requirements.
VLT
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN 37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
U - I
A53
Table 6.12 Motor Thermistor
Parameters
Function Setting
1-90 Motor [2]
Thermal Thermistor
Protection
trip
1-93 Thermistor [1] Analog
Source input 53
* = Default Value
Notes/comments:
If only a warning is desired,
1-90 Motor Thermal Protection
should be set to [1] Thermistor
warning.
D IN 37 is an option.
35
6 6
