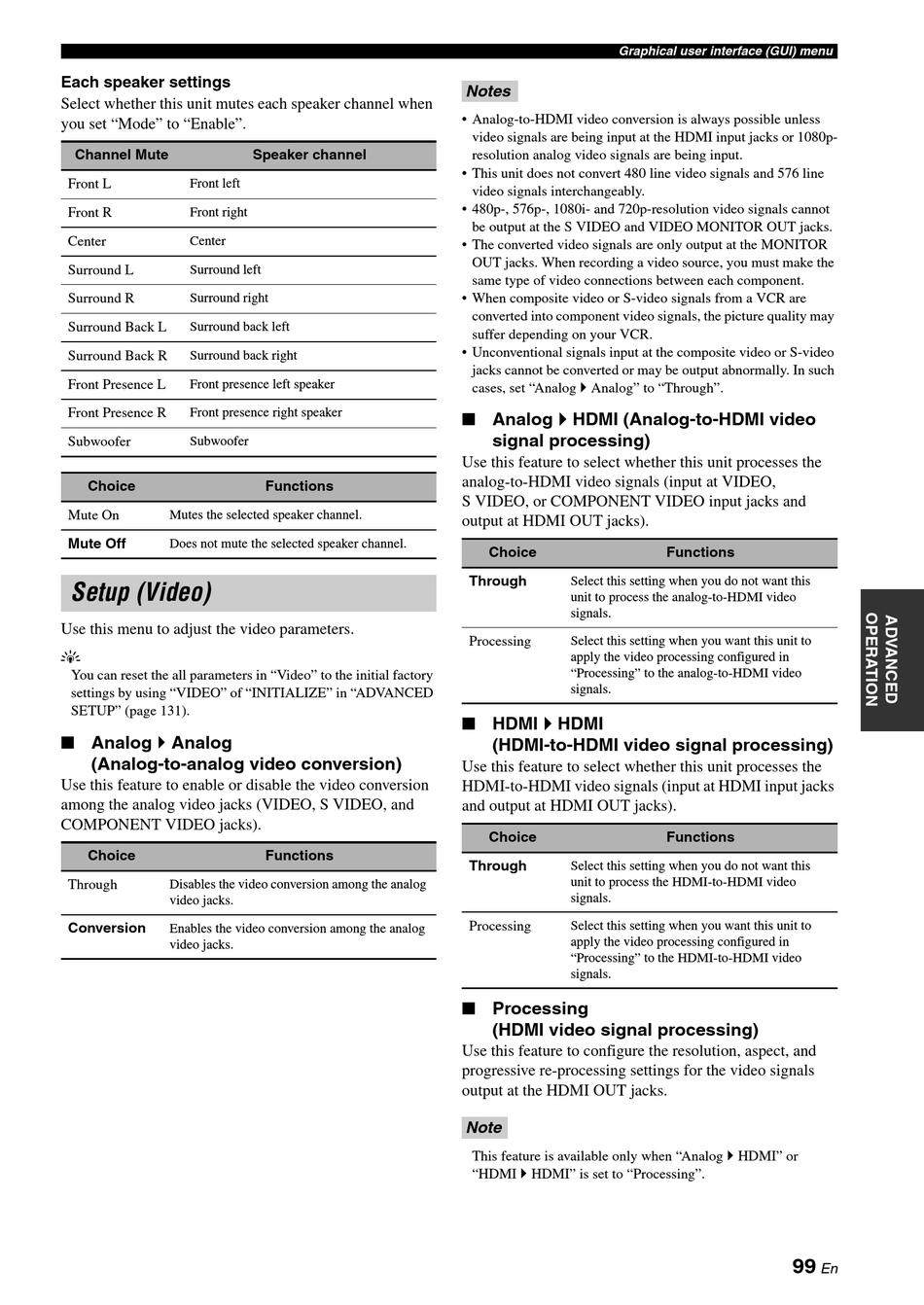

Each speaker settings
Select whether this unit mutes each speaker channel when
you set "Mode" to "Enable".
Channel Mute
Front L Front left
Front R Front right
Center Center
Surround L Surround left
Surround R Surround right
Surround Back L Surround back left
Surround Back R Surround back right
Front Presence L Front presence left speaker
Front Presence R Front presence right speaker
Subwoofer Subwoofer
Choice
Mute On Mutes the selected speaker channel.
Mute Off Does not mute the selected speaker channel.

Setup (Video)

Use this menu to adjust the video parameters.
y
You can reset the all parameters in "Video" to the initial factory
settings by using "VIDEO" of "INITIALIZE" in "ADVANCED
SETUP" (page 131).
■ Analog
Analog
(Analog-to-analog video conversion)
Use this feature to enable or disable the video conversion
among the analog video jacks (VIDEO, S VIDEO, and
COMPONENT VIDEO jacks).
Choice
Through Disables the video conversion among the analog
video jacks.
Conversion Enables the video conversion among the analog
video jacks.
Speaker channel
Functions
Functions
Graphical user interface (GUI) menu
Notes
• Analog-to-HDMI video conversion is always possible unless
video signals are being input at the HDMI input jacks or 1080p-
resolution analog video signals are being input.
• This unit does not convert 480 line video signals and 576 line
video signals interchangeably.
• 480p-, 576p-, 1080i- and 720p-resolution video signals cannot
be output at the S VIDEO and VIDEO MONITOR OUT jacks.
• The converted video signals are only output at the MONITOR
OUT jacks. When recording a video source, you must make the
same type of video connections between each component.
• When composite video or S-video signals from a VCR are
converted into component video signals, the picture quality may
suffer depending on your VCR.
• Unconventional signals input at the composite video or S-video
jacks cannot be converted or may be output abnormally. In such
cases, set "Analog Analog" to "Through".
■ Analog
HDMI (Analog-to-HDMI video
signal processing)
Use this feature to select whether this unit processes the
analog-to-HDMI video signals (input at VIDEO,
S VIDEO, or COMPONENT VIDEO input jacks and
output at HDMI OUT jacks).
Choice
Through Select this setting when you do not want this
unit to process the analog-to-HDMI video
signals.
Processing Select this setting when you want this unit to
apply the video processing configured in
"Processing" to the analog-to-HDMI video
signals.
■ HDMI
HDMI
(HDMI-to-HDMI video signal processing)
Use this feature to select whether this unit processes the
HDMI-to-HDMI video signals (input at HDMI input jacks
and output at HDMI OUT jacks).
Choice
Through
Select this setting when you do not want this
unit to process the HDMI-to-HDMI video
signals.
Processing Select this setting when you want this unit to
apply the video processing configured in
"Processing" to the HDMI-to-HDMI video
signals.
■ Processing
(HDMI video signal processing)
Use this feature to configure the resolution, aspect, and
progressive re-processing settings for the video signals
output at the HDMI OUT jacks.
Note
This feature is available only when "Analog HDMI" or
"HDMI HDMI" is set to "Processing".
Functions
Functions
