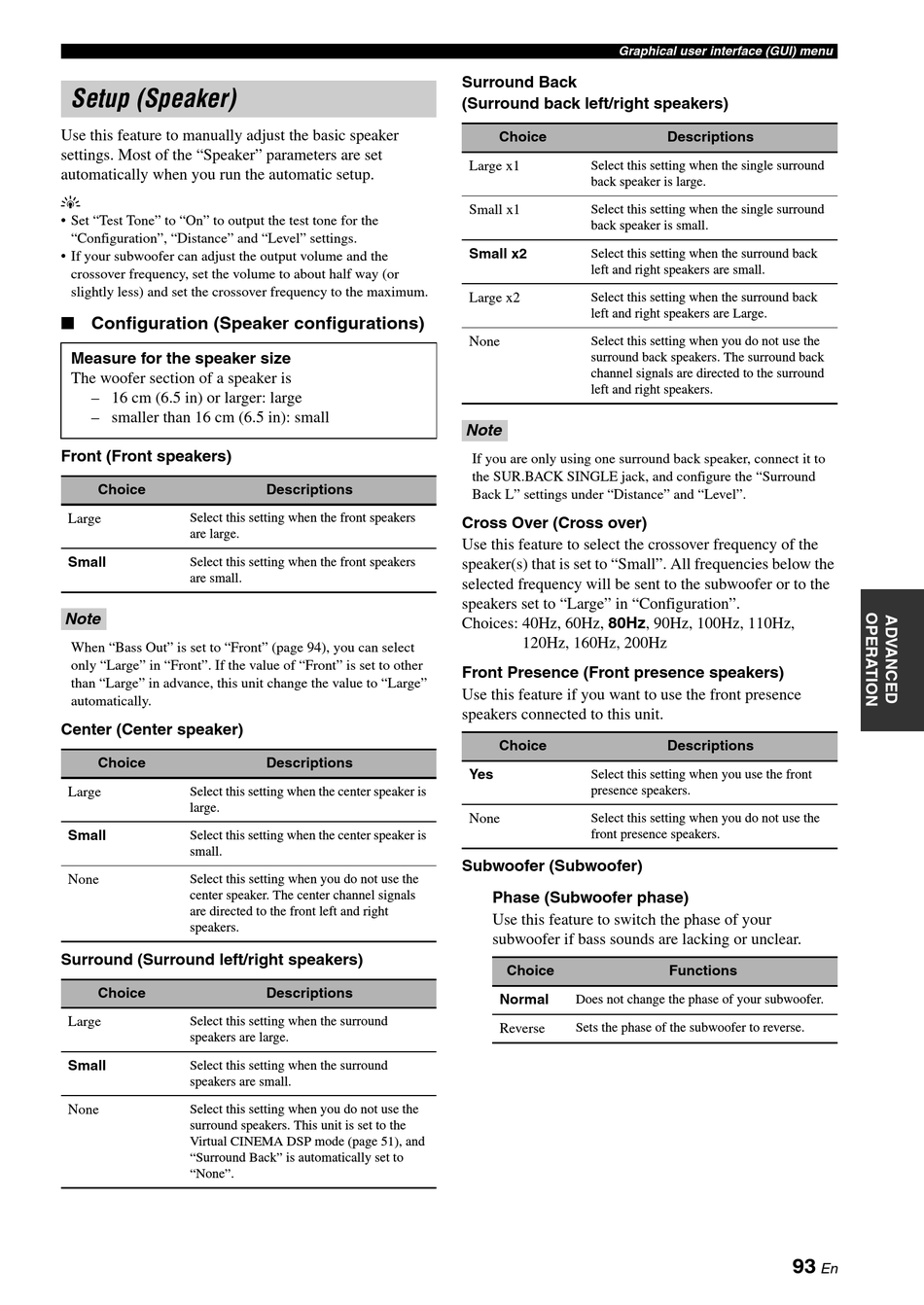

Setup (Speaker)

Use this feature to manually adjust the basic speaker
settings. Most of the "Speaker" parameters are set
automatically when you run the automatic setup.
y
• Set "Test Tone" to "On" to output the test tone for the
"Configuration", "Distance" and "Level" settings.
• If your subwoofer can adjust the output volume and the
crossover frequency, set the volume to about half way (or
slightly less) and set the crossover frequency to the maximum.
■ Configuration (Speaker configurations)
Measure for the speaker size
The woofer section of a speaker is
– 16 cm (6.5 in) or larger: large
– smaller than 16 cm (6.5 in): small
Front (Front speakers)
Choice
Large Select this setting when the front speakers
are large.
Small Select this setting when the front speakers
are small.
Note
When "Bass Out" is set to "Front" (page 94), you can select
only "Large" in "Front". If the value of "Front" is set to other
than "Large" in advance, this unit change the value to "Large"
automatically.
Center (Center speaker)
Choice
Large Select this setting when the center speaker is
large.
Small Select this setting when the center speaker is
small.
None
Select this setting when you do not use the
center speaker. The center channel signals
are directed to the front left and right
speakers.
Surround (Surround left/right speakers)
Choice
Large Select this setting when the surround
speakers are large.
Small Select this setting when the surround
speakers are small.
None Select this setting when you do not use the
surround speakers. This unit is set to the
Virtual CINEMA DSP mode (page 51), and
"Surround Back" is automatically set to
"None".
Descriptions
Descriptions
Descriptions
Graphical user interface (GUI) menu
Surround Back
(Surround back left/right speakers)
Choice
Large x1 Select this setting when the single surround
back speaker is large.
Small x1 Select this setting when the single surround
back speaker is small.
Small x2 Select this setting when the surround back
left and right speakers are small.
Large x2 Select this setting when the surround back
left and right speakers are Large.
None Select this setting when you do not use the
surround back speakers. The surround back
channel signals are directed to the surround
left and right speakers.
Note
If you are only using one surround back speaker, connect it to
the SUR.BACK SINGLE jack, and configure the "Surround
Back L" settings under "Distance" and "Level".
Cross Over (Cross over)
Use this feature to select the crossover frequency of the
speaker(s) that is set to "Small". All frequencies below the
selected frequency will be sent to the subwoofer or to the
speakers set to "Large" in "Configuration".
Choices: 40Hz, 60Hz, 80Hz, 90Hz, 100Hz, 110Hz,
120Hz, 160Hz, 200Hz
Front Presence (Front presence speakers)
Use this feature if you want to use the front presence
speakers connected to this unit.
Choice
Yes
Select this setting when you use the front
presence speakers.
None Select this setting when you do not use the
front presence speakers.
Subwoofer (Subwoofer)
Phase (Subwoofer phase)
Use this feature to switch the phase of your
subwoofer if bass sounds are lacking or unclear.
Choice
Normal Does not change the phase of your subwoofer.
Reverse Sets the phase of the subwoofer to reverse.
Descriptions
Descriptions
Functions
