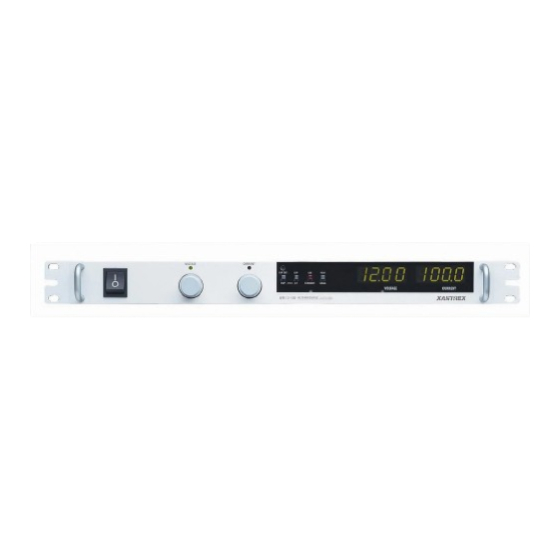

- Page 1 Internal Ethernet and RS-232 Interface for XFR Series Programmable DC Power Supplies ENET-XFR ENET-XFR3 Operating Manual...
- Page 3 XFR 1.2kW and 2.8kW Ethernet/RS-232 Interface Option Operating Manual...
- Page 4 About Xantrex Xantrex Technology Inc. is a world-leading supplier of advanced power electronics and controls with products from 50 watt mobile units to one MW utility-scale systems for wind, solar, batteries, fuel cells, microturbines, and backup power applications in both grid-connected and stand-alone systems. Xantrex products include inverters, battery chargers, programmable power supplies, and variable speed drives that convert, supply, control, clean, and distribute electrical power.
-
Page 5: About This Manual
About This Purpose This 232 Interface models of XFR Series DC output power supplies. This manual provides you with specifications, user options, and configuration instructions for the interface, along with a command set which allows you to control your power supply from a computer console. Error messages and calibration procedures are also included. - Page 6 About This Manual Organization This Manual Chapter 1, “Features” Chapter 2, “Installation and Configuration” procedures for cleaning, shipping, and storage procedures. Chapter 3, “Operation” registers, and error codes. Chapter 4, “Calibration” current mode calibration as well as over voltage protection (OVP) calibration.
-
Page 7: Related Information
Important: These notes describe things which are important for you to know, but not as serious as a caution or warning. Related Information You can find more information about Xantrex Technology Inc. as well as its products and services at www.xantrex.com TM-XR9B-01XN... -
Page 9: Important Safety Instructions
Important Safety Instructions WARNING: High Energy and High Voltage Exercise caution when using and calibrating a power supply. High energy levels can be stored at the output voltage terminals on a power supply in normal operation. In addition, potentially lethal voltages exist in the power circuit and on the output and sense connectors of a power supply with a rated output greater than 40 V. - Page 10 viii...
-
Page 11: Table Of Contents
Contents Important Safety Instructions 1 Features Description - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–1 Features and Functions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–2 Interface Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -1–2 Ethernet Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–3... - Page 12 Contents Baud Rate Selection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–18 Flow Control Selection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–19 Remote/Local Operation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–20 Remote/Local Mode Startup - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–20...
- Page 13 4 Calibration Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–1 Voltage Mode Calibration - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -4–3 Voltage Calibration Setup - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–3 Voltage Program Calibration Procedure - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–3...
- Page 15 Figures Figure 1-1 Sample configuration using (1200 Watt DC Power Supplies Shown) - - - - - - - - - - - - - - - - - - - - 1–2 Figure 2-1 Power Supply Front Panel with (1200 Watt Power Supply Shown) - - - - - - - - - - - - - - - - - - - - - - - - 2–4 Figure 2-2 Ethernet/RS-232 Interface...
- Page 17 Tables Table 2-1 Remote Programming LEDs - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–4 Table 2-2 Ethernet/RS-232 Interface Table 2-3 Ethernet Table 2-4 RS-232...
-
Page 19: Features
Description Ethernet/RS-232 Interface option card for all models of the XFR series of DC output power supply. Installed internally, the interface card allows you to remotely control your power supply through your existing network, or via a direct connection to your computer. It features an auto-sensing 10/100Base-T network interface that provides fast programming and readback utilizing an extensive command set. -
Page 20: Features And Functions
Features Figure 1-1 Sample configuration using (1200 Watt DC Power Supplies Shown) Features and Functions Interface Features • Programmable soft limits for voltage and current • Programmable over voltage protection with reset • Easy-to-use, self-documenting command set • Standardized commands for complete communication with any of the supplies in the system •... -
Page 21: Ethernet Features
Ethernet Features • Auto-sensing 10/100Base-T network interface • Robust onboard TCP/IP stack supports: • • • Universal IP Address Assignment via: • • • • Easy configuration via web browser (HTTP) • RealPort® COM/TTY port redirection software • Status LEDs for Link, Activity, and Diagnostics •... - Page 22 1–4...
-
Page 23: Installation And Configuration
Introduction Ethernet/RS-232 Interface local distributor or service center can also install the interface, especially for use in a previously-purchased supply already on site. You must then configure the Interface-enhanced supply for your system using the “Basic Setup Procedure - RS-232” on page To use this product, you must have the following equipment: •... - Page 24 Installation and Configuration Also, depending on your specific configuration, you will need additional items. Ethernet • CAT 5 network cable to connect XFR to your network • computer connected to the network Ethernet • CAT 5 crossover cable to connect XFR directly to your computer •...
-
Page 25: Initial Inspection
Initial Inspection On first receiving your unit, perform a quick physical check. • Ensure each package contains a power supply with its 232 Interface power supply will be identified in the supply's documentation. • Inspect the unit for any signs of physical damage such as scratches, cracks, or broken switches, connectors, or displays. -
Page 26: Front Panel
Installation and Configuration Front Panel Figure 2-1 Ethernet/RS-232 Interface Remote Programming LEDs in Remote Programming LEDs. See table. Figure 2-1 Power Supply Front Panel with (1200 Watt Power Supply Shown) Table 2-1 Remote Programming LEDs L E D 2–4 shows the front panel of an XFR 1200 Watt supply with installed. -
Page 27: Ethernet/Rs-232 Interface Subplate And Pcb
Ethernet/RS-232 Interface Ethernet/RS-232 Interface the unit. Rear panel components are identified in Note: On some models, the subplate is rotated 180 degrees. Figure 2-2 Ethernet/RS-232 Interface (XFR 1.2kW shown - located on power supply rear cover) I t e m TM-XR9B-01XN Subplate and PCB Subplate is visible from the rear panel of... - Page 28 Installation and Configuration Figure 2-3 Interface change modes or settings. COP LEDs CR167 CR166 Subplate 1 2 3 Ethernet Bridge Figure 2-3 Ethernet/RS-232 Interface 2–6 CAUTION Use proper static control techniques to avoid damage to static- sensitive components on the printed circuit board shows the internal components on the PCB.
-
Page 29: Figure 2-3 Ethernet/Rs-232 Interface
Table 2-2 Ethernet/RS-232 Interface J U M P E R S E L E C T I O N Baud rate selection (default 9600) RS-232 flow control selection hardware (RTS/ CTS) or software (XON/ XOFF) Unused Power-On remote/local J3, J4, Ethernet or RS232 mode J5, J6 Local OVP control... -
Page 30: Changing Internal Jumpers
Installation and Configuration Changing Internal Jumpers Some of the settings on the selectable by way of jumpers on the printed circuit board. The procedure for changing the jumpers varies depending on if you have a 1.2kW XFR, or a 2.8kW XFR. Procedure for 1.2kW XFR Ensure that the input power connection has been disconnected and the unit is powered off before you attempt to remove the top cover. -
Page 31: Procedure For 2.8Kw Xfr
Changing Internal Jumpers Once that is complete, turn the board over and, if necessary, remove the short ribbon cable connected to J64 on the interface card to get access to the under side of the PCB. You can now scan the board and refer to Figure to locate the various components and jumpers on the PCB. -
Page 32: Basic Setup Procedure
Installation and Configuration Basic Setup Procedure - This procedure can be used as a quick reference for those familiar with the configuration requirements for the installed in the DC power supply. For those who want more information, each step refers to more detailed procedures located in subsequent sections. -
Page 33: Basic Setup Procedure - Rs
Basic Setup Procedure - This procedure can be used as a quick reference for those familiar with the configuration requirements for the installed in the DC power supply. For those who want more information, each step refers to more detailed procedures located in subsequent sections. -
Page 34: Configuring For Ethernet Or Rs-232
Installation and Configuration Configuring for Ethernet or RS-232 This interface card can be configured for RS-232 the instrument will be configured for you should only need to follow these instructions if you are switching over to RS-232, or back to Ethernet. To switch between the two configurations, you must change internal jumpers on the interface card. -
Page 35: Ethernet Communications
Ethernet Communications Ethernet Connection There are two options for controlling your XFR power supply via Ethernet Computer." The first option is to connect the power supply to a network, and control the unit from your computer which is also connected to the network. -
Page 36: Locating The Power Supply On Your Network
Installation and Configuration Locating the Power Supply on Your Network 1. Record the MAC address for your power supply. This will be visible at the back of the XFR, on the interface card subplate. For example, MAC Address: ______________________________ 2. Insert the Xantrex XFR Ethernet Software Utilities CD into your CD drive. -
Page 37: Configuring Ethernet Bridge
Configuring Ethernet Bridge Ethernet/RS-232 Interface the ethernet packets to serial data signals for processing by the embedded microcontroller. The Ethernet Bridge must be properly configured for serial communications with the microcontroller. For example, settings on the Bridge, such as Baud Rate and Flow Control, must match the jumper settings on the interface board. -
Page 38: Installing And Using Realport
Installation and Configuration Installing and Using RealPort® Background RealPort® software allows you to keep using your existing applications that rely on COM ports and RS-232 links for communication purposes, instead of having to develop TCP/IP based network applications. Installed on a network-enabled PC, RealPort® creates a virtual COM port. As such, your application still thinks it is working with a real serial port, such as COM1. -
Page 39: Communications
RS-232 Communications RS-232 Connection Use an approved RS-232 connector and null modem cable when connecting the connector uses the 9 pin mating connector on the rear panel. shows the pinouts for the RS-232 connector. Refer to on the rear panel subplate. Figure 2-5 RS-232 Connector Pinouts TM-XR9B-01XN WARNING... -
Page 40: Baud Rate Selection
Installation and Configuration Baud Rate Selection Serial transmission sends and receives data in bit streams at fixed bit rates. Both the computer and the interface must have the same bit rate setting for proper communication. The default baud rate is 9600. We recommend that you do not change this setting. -
Page 41: Flow Control Selection
Flow Control Selection Flow control signals regulate data flow for proper communication. To enable or disable the flow control, change the J2 FLW jumper according Table hardware protocols to control flow rates. You will need to remove the cover to change any jumpers. See page 2–8. -
Page 42: Remote/Local Operation
Installation and Configuration Remote/Local Operation Remote/Local Mode Startup The power supply can be set to start-up in remote or local mode. To change this setting, the PON REM jumper must be adjusted according to Table 2-9. You will need to remove the cover to change any jumpers. See “Changing Internal Jumpers”... -
Page 43: Remote Mode Operation
Table 2-10 Remote Mode Power On Conditions C o n d i t i o n Voltage Current Soft Voltage Limit Soft Current Limit OVP Trip Voltage Delay Remote Enable Foldback Protection Output Hold Unmask AUXA AUXB Remote Mode Operation While in remote mode, use the interface commands to control the output of the power supply from a computer. -
Page 44: Local Mode Operation
Installation and Configuration Local Mode Operation In local mode operation, you set the voltage and current output levels and the OVP trip level with controls located on the front panel. Refer to the operating manual for a description of the functions available at the front panel. -
Page 45: Local Lockout (Llo) Command
Local Lockout (LLO) Command Use the Local Lockout command to disable the LOCAL button on the power supply front panel. With LLO in effect, you cannot return to local control by pressing the front panel LOCAL switch. You can still return to local mode by sending the Go to Local (GTL) command. -
Page 46: Additional User Options And Settings
Installation and Configuration Additional User Options and Settings You can customize remote operation settings for OVP (over voltage protection) control and TTL shutdown by changing jumper positions on Ethernet/RS-232 Interface information on how to use over voltage protection and TTL shutdown. OVP Selection Over voltage protection (OVP) on the the factory for remote software operation. -
Page 47: Ttl Shutdown Polarity
TTL Shutdown Polarity You can use the Shutdown function to disable or enable the supply's output. Disabling the supply using TTL shutdown allows you to make adjustments to the load or to the power supply without shutting down the power supply. With the shutdown is activated by a TTL signal to Pin 1 of the user lines connector on the interface subplate. -
Page 48: User Signals
Installation and Configuration User Signals User Lines Connector Auxiliary User Lines connector, located on the rear panel, provides several signals to increase your operating control of the supply. These signals are dependent on the operator's design and uses. The operation of the user lines connector signal requires that you provide external Vcc and ground. -
Page 49: Figure 2-6 User Lines Signal Connector Circuit Block Diagram
User Signals Figure 2-6 User Lines Signal Connector Circuit Block Diagram TM-XR9B-01XN 2–27... -
Page 50: User Lines Cable Connection
Installation and Configuration User Lines Cable Connection Use a standard 8-position telephone jack and data cable to connect to the user line connector. Add a ferrite block to reduce radiated emission. The one inch square ferrite block with built-in housing clip is packaged and shipped with the power supply interface card. -
Page 51: Introduction
Introduction This section covers an extensive set of device-dependent commands, error codes, and status and fault register information. Operation Ethernet/RS-232 Interface programming, including... -
Page 52: Ethernet Operation
Operation RS-232 Operation When the can send and receive data between your power supply and computer, relying on bit serial communication. You can use the computer controller to issue commands to the power supply for programming, queries, calibration, or status. The power supply responds to the complete command set of device dependent software commands shown in “Command Reference”... -
Page 53: Command Format And Parameters
Command Format and Parameters The device-dependent language for the consists of commands and parameters. A command is a one word code which either gives instructions to the interface or asks for information from the interface. A command may be followed by one or more parameters, a short code that changes the state of the power supply or the state of the bit register. -
Page 54: Floating Point Number
Operation Table 3-1 Command Parameters P a r a m e t e r D e s c r i p t i o n <current>, <Ihi>, <Ilo> The current in amps or milliamps. If no unit is given, the default unit is amps. <time>... -
Page 55: Command Strings
Command Strings If you send more than one command line, separate the commands with a semicolon. The semicolon may be preceded or followed by spaces. Example: ISET 2.0A; VSET 5V ISET 2.0A; VSET 5V Command Terminators Terminators indicate the end of a command string and tell the power supply to execute the command. -
Page 56: Command Summary
Operation Command Summary Use these commands to control the operation of the supply. They are listed here in order of function such as PROGRAMMING, QUERY, CALIBRATION, and STATUS commands. See on page 3–9 use. Table 3-3 Programming Commands C o m m a n d D e s c r i p t i o n AUXA AUXB FOLD... -
Page 57: Table 3-4 Query Commands
Table 3-4 Query Commands C o m m a n d D e s c r i p t i o n AUXA? AUXB? CMODE? DLY? ERR? FOLD? HOLD? IMAX? IOUT? ISET? OUT? OVSET? REN? ROM? VMAX? VOUT? VSET? TM-XR9B-01XN Asks for the state of the set value for the AUXA command Asks for the state of the set value for the AUXB command Asks for the power supply’s calibration mode status. -
Page 58: Table 3-5 Calibration Commands
Operation Table 3-5 Calibration Commands C o m m a n d D e s c r i p t i o n CMODE IDATA IRDAT IRHI IRLO OVCAL VDATA VRDAT VRHI VRLO Table 3-6 Status Commands C o m m a n d D e s c r i p t i o n ASTS? FAULT? MASK... -
Page 59: Command Reference
Command Reference Table 3-7 Command Reference C o m m a n d D e s c r i p t i o n ASTS? Asks for the supply’s accumulated status register. The accumulated status register stores any bit that was entered in the status register since the accumulated status query command (ASTS?) was last used, regardless of whether the condition still exists. - Page 60 Operation Table 3-7 Command Reference C o m m a n d D e s c r i p t i o n DLY <seconds> Sets a programmable time delay employed by the supply before reporting fault conditions. The power supply uses the time delay after receiving a new output voltage or current setting via VSET or ISET, or after receiving RST, TRG, or OUT ON commands.
- Page 61 Table 3-7 Command Reference C o m m a n d D e s c r i p t i o n FOLD? Asks for the supply’s present foldback setting. Response: FOLD <mode> where mode is: 0 (OFF) or 1 (CV or Constant Voltage mode) or 2 (CC or Constant Current mode) Go to local.
- Page 62 Operation Table 3-7 Command Reference C o m m a n d D e s c r i p t i o n IMAX <current> Sets an upper soft limit on the supply’s programmed output current. If the soft limit is exceeded, or if the soft limit value is lower than the present output current setting, the supply will ignore the command, turn on the ERR LED, and set the ERR bit in the bit registers.
- Page 63 Table 3-7 Command Reference C o m m a n d D e s c r i p t i o n Disables the front panel LOCAL switch. When LLO is in effect you can only return to local mode using the GTL command. You can remove the local lockout with the REN command.
- Page 64 Operation Table 3-7 Command Reference C o m m a n d D e s c r i p t i o n REN <1/ON>, <0/ Remote Enable. When set to REN 0, the power supply is in local mode. If a OFF>...
- Page 65 Table 3-7 Command Reference C o m m a n d D e s c r i p t i o n UNMASK? Asks for the supply's fault conditions which are currently enabled (unmasked). Response: UNMASK <fault mask> where fault mask is the decimal equivalent of the total bit weights for the operating conditions as listed in the status and fault registers See VDATA...
- Page 66 Operation Table 3-7 Command Reference C o m m a n d D e s c r i p t i o n VRHI The power supply outputs a voltage value to an external voltmeter connected as part of the calibration procedure and records a voltage readback value internally. These values are at the high end of the programmed voltage range.
-
Page 67: Accumulated Status, Status, And Fault Registers
Accumulated Status, Status, and Fault Registers Ethernet/RS-232 Interface are always active. They are the accumulated status, status, and fault registers. You can use the status commands shown in Commands” on page 3–8 twelve conditions, each assigned a bit weight. When querying a register, the controller returns a response which is the sum of the weights of all relevant conditions. -
Page 68: Table 3-8 Accumulated Status, Status And Fault Registers
Operation Table 3-8 Accumulated Status, Status and Fault Registers C o n d i t i o n Constant voltage operation Constant current operation Not used Overvoltage protection tripped Over temperature protection tripped Supply external shutdown active Pin 1 of the user lines connector Foldback mode operation Remote programming error... -
Page 69: Error Codes
Error Codes If the ERR flag in the accumulated status or fault registers has been activated, an ERR? query will return an error number which corresponds to an event described in the following table. The ERR? query will also clear the ERR bit in the register. Table 3-9 Error Codes E r r o r # E r r o r I d e n t i f i c a t i o n TM-XR9B-01XN... -
Page 70: Troubleshooting
Operation Troubleshooting Diagnostic LEDs This section describes the diagnostic LEDs found on the Interface. Computer Operating Properly (COP) LEDs Ethernet/RS-232 Interface CR167, CR166, and CR89 on its PCB. Refer to 232 Interface PCB” on page LEDs turn on to signal COP events for the interface's microprocessors. Issue a RST (reset) command to turn off the diagnostic LEDs. -
Page 71: Mode Troubleshooting Tips
Ethernet Mode Troubleshooting Tips Table 3-10 Ethernet Mode Tips S y m p t o m P o s s i b l e C a u s e s Cannot establish Instrument is not properly communication or connected to the network cannot find XFR on network using the setup program from... - Page 72 Operation Table 3-10 Ethernet Mode Tips S y m p t o m P o s s i b l e C a u s e s Able to connect to Ethernet/RS-232 the device server Interface (Ethernet Bridge), for RS-232 communications but unable to control or receive a The embedded Ethernet...
-
Page 73: And/Or Ethernet Mode Troubleshooting Tips
RS-232 Mode Troubleshooting Tips Table 3-11 RS-232 Mode Tips S y m p t o m P o s s i b l e C a u s e s Cannot establish Using straight through communication RS-232 Null Modem cable Loose cables Baud rate mismatch Trying to communicate via... - Page 74 3–24...
-
Page 75: Calibration
Introduction You can calibrate the interface in either adjusting the signal levels on the interface card so that they correspond to the expected signal levels on the power supply's main assembly. You may need to recalibrate the interface if you replace parts either on the interface board or on the main power supply board, or if the unit falls out of specification due to component aging drifts. - Page 76 Calibration You can calibrate the • Voltage program • Voltage readback • Current program • Current readback • Overvoltage protection The following equipment will be required to accurately calibrate your unit: • Digital Voltmeter, 5 1/2 digit, 0.1% accuracy or better, with test leads •...
-
Page 77: Voltage Mode Calibration
Voltage Mode Calibration Voltage Calibration Setup 1. Disconnect the load from the power supply which is to be calibrated. 2. Connect a voltmeter across the power supply’s output terminals. Figure 4-1 Voltage Calibration Setup Voltage Program Calibration Procedure 1. Set the power supply for calibration as in 2. -
Page 78: Voltage Readback Calibration Procedure
Calibration Voltage Readback Calibration Procedure 1. Set the power supply for calibration as in 2. Activate calibration mode by sending command CMODE ON or CMODE 1 to the power supply. 3. Send command VRLO; IRLO to the power supply. Wait for the supply to settle. -
Page 79: Current Mode Calibration
Current Mode Calibration Current Calibration Setup 1. Disconnect the load from the power supply to be calibrated. 2. Connect a shunt across the supply's output terminals. 3. Connect a voltmeter across the shunt. Figure 4-2 Current Calibration Setup Current Program Calibration Procedure 1. -
Page 80: Current Readback Calibration Procedure
Calibration 7. Program the supply at various levels using the ISET command to confirm that the calibration was successful and that linearity is observed. Refer to the current program accuracy specification in Appendix 8. Turn off calibration mode by sending the command CMODE OFF or CMODE 0 to the power supply. -
Page 81: Over Voltage Protection (Ovp) Calibration
Over Voltage Protection (OVP) Calibration We recommend that you perform OVP calibration every six months. Connecting a digital voltmeter as in optional. 1. Disconnect all loads from the power supply. 2. Ensure that jumper J65 on the interface PCB is CLOSED to enable remote OVP calibration (Jumper J65 is closed at the factory). - Page 82 4–8...
-
Page 83: Specifications
Specifications The specifications in this section are warranted at 25°C ±5°C unless otherwise specified. All specifications are subject to change without notice. -
Page 84: Specifications For Xfr 1.2Kw With
Specifications Specifications for XFR 1.2kW with Interface Installed Table A-1 XFR 1.2kW 7.5 V to 40 V M o d e l s 7 . 5 - 1 4 0 Program Resolution Voltage 1.2mV Current 18.3mA 1.2mV Program Accuracy 10mV Voltage ±0.12% 500mA... - Page 85 Table A-2 XFR 1.2kW 60 V to 600 V M o d e l s 6 0 - 2 0 Program Resolution Voltage 9.3mV Current 2.6mA 9.3mV Program Accuracy 150mV Voltage ±0.25% 120mA Current ±0.1% 600mV Readback Resolution Voltage 9.3mV Current 2.6mA Readback Accuracy...
-
Page 86: Specifications For Xfr 2.8Kw With
Specifications Specifications for XFR 2.8kW with Interface Installed Table A-3 XFR 2.8kW 7.5 V to 40 V M o d e l s 7 . 5 - 3 0 0 Program Resolution Voltage 1.2mV Current 11.3mA 1.2mV Program Accuracy 10mV Voltage ±0.12% 300mA... - Page 87 Table A-4 XFR 2.8kW 60 V to 600 V M o d e l s 6 0 - 4 6 Program Resolution Voltage 9.3mV Current 1.4mA 9.3mV Program Accuracy 150mV Voltage ±0.3% 80mA Current ±0.1% 600mV Readback Resolution Voltage 9.3mV Current 1.4mA Readback Accuracy...
- Page 88 A–6...
-
Page 89: B Advanced Ethernet Administration
Appendix B statistics and interpret LED information. Advanced Ethernet Administration details how to change your network password, view port... -
Page 90: Changing The Root Password
Advanced Ethernet Administration Changing the Root Password For security reason you will want to change the root password immediately. Important: Record you new password in a secure location. If you lose the password you will not be able to gain access to the configuration menu. -
Page 91: Resetting The Configuration To Defaults
Resetting the Configuration to Defaults Introduction This procedure will reset the configuration to defaults by using a web browser. This procedure also allows you to back up the configuration which provides a means for restoring it after you have worked through configuration issues. -
Page 92: Copying The Configuration To And From A Server
Advanced Ethernet Administration Copying the Configuration to and from a Server This procedure shows you how to copy the configuration to a server and to download a configuration from a server. 1. Open a web browser and enter the device server’s IP address in the URL window. -
Page 93: Interpreting Led Information
Interpreting LED Information Ethernet Bridge LEDs provide information on port activity, diagnostics, and Ethernet activity. Figure B-1 Ethernet Bridge LEDs Table B-1 Ethernet Bridge LEDs Interpretation L E D C o l o r F u n c t i o n Green Indicates serial port activity... - Page 94 B–6...
-
Page 95: Warranty And Product Information
In any warranty claim, dated proof of purchase must accompany the product and the product must not have been disassembled or modified without prior written authorization by Xantrex. TM-XR9B-01XN This Limited Warranty is provided by Xantrex Technology, Inc. If your product requires troubleshooting or warranty service, contact your 1-800-670-0707 (toll free) - Page 96 Warranty and Product Information Proof of purchase may be in any one of the following forms: • The dated purchase receipt from the original purchase of the product at point of sale to the end user, • The dated dealer invoice or purchase receipt showing original equipment manufacturer (OEM) status, or •...
-
Page 97: Return Material Authorization Policy
Exclusions If this product is a consumer product, federal law does not allow an exclusion of implied warranties. To the extent you are entitled to implied warranties under federal law, to the extent permitted by applicable law they are limited to the duration of this Limited Warranty. Some states and provinces do not allow limitations or exclusions on implied warranties or on the duration of an implied warranty or on the limitation or exclusion of incidental or consequential damages, so the above limitation(s) or exclusion(s) may not apply to you. -
Page 98: Information About Your System
Include the following: • The RMA number supplied by Xantrex Technology, Inc. clearly marked on the outside of the box. • A return address where the unit can be shipped. Post office boxes are not acceptable. - Page 100 Xantrex Technology Inc. 1 800 670 0707 Tel toll free NA 1 360 925 5097 Tel direct 1 800 994 7828 Fax toll free NA 1 360 925 5143 Fax direct customerservice@xantrex.com www.xantrex.com TM-XR9B-01XN Printed in Canada...
