2
About 20 seconds after the LCD initial screen (see Figure 7-3) is on, the Main Screen
will appear (see Figure 7-4). After you see the Main Screen, you can operate the
LCD. Please note that the Main Screen appears in the User login status as shown in
Modulon DPH Series
NOTE:
Their battery start buttons and locations are the same; thus, in this chapter,
only the diagram of 20 ~ 120 kVA UPS is taken as an example.
(20 ~ 120kVA UPS Front View
with Door Open)
GND B A GND B A
MODBUS BMS
DISPLAY
O/P DRY
I/P DRY
EXT. BATT
EXT.SWITCH
TEMP.
STATUS
CONTACT
CONTACT
BT1 BT2
S1
S2
P1
P2
P3
P1
P2
REPO
NC
NO
BT3 BT4
S3
S4
P4
P5
P6
P3
P4
PARALLEL

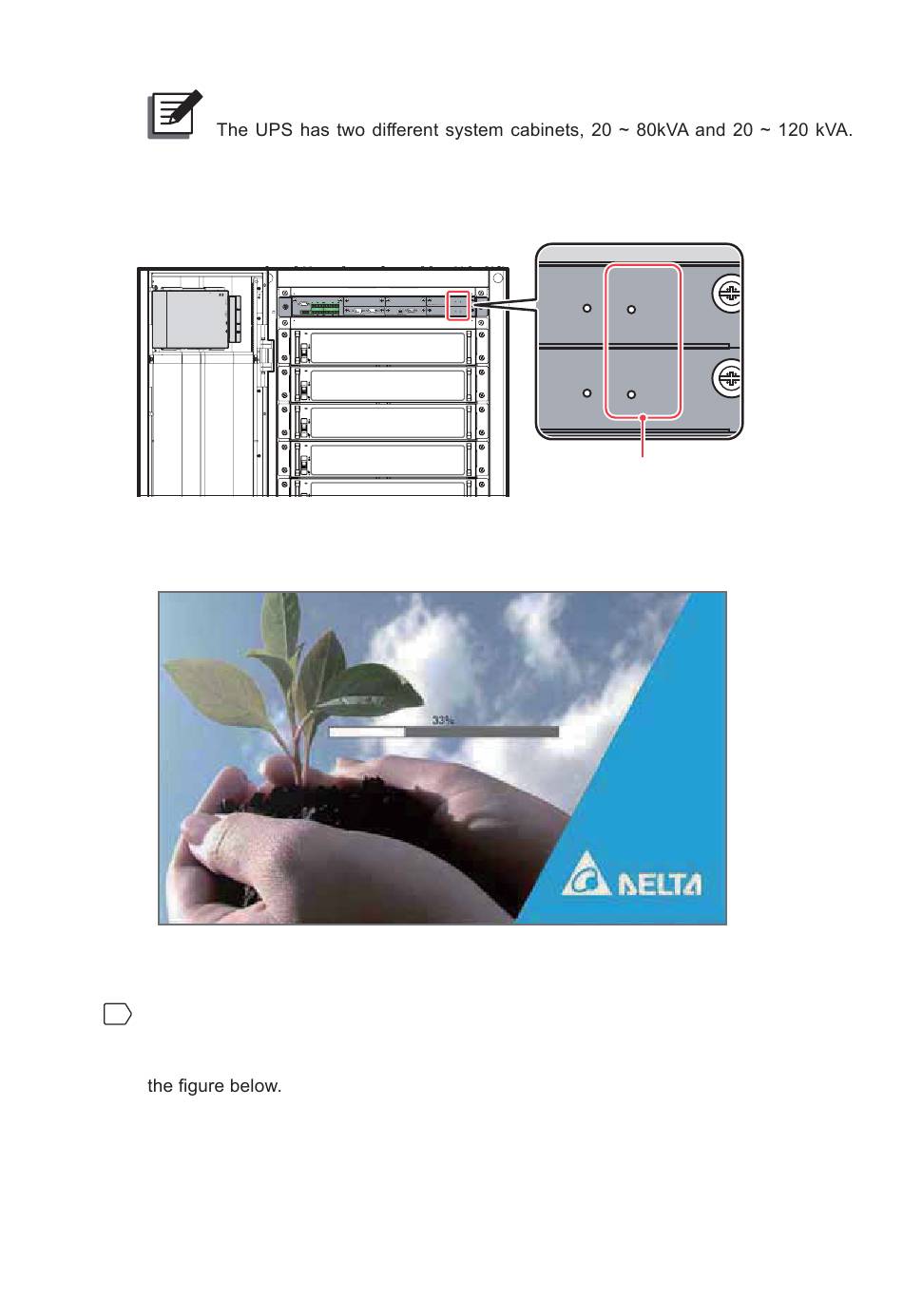

(Figure 7-2: The Position of Battery Start Buttons)
(Figure 7-3: LCD Initial Screen)
BATT.
START
BATT.
START
USB
RS-232
Battery Start Button x 2
7-4
BATT.
START
BATT.
START
