N
-
External
Battery
Cabinet
DC Fuse

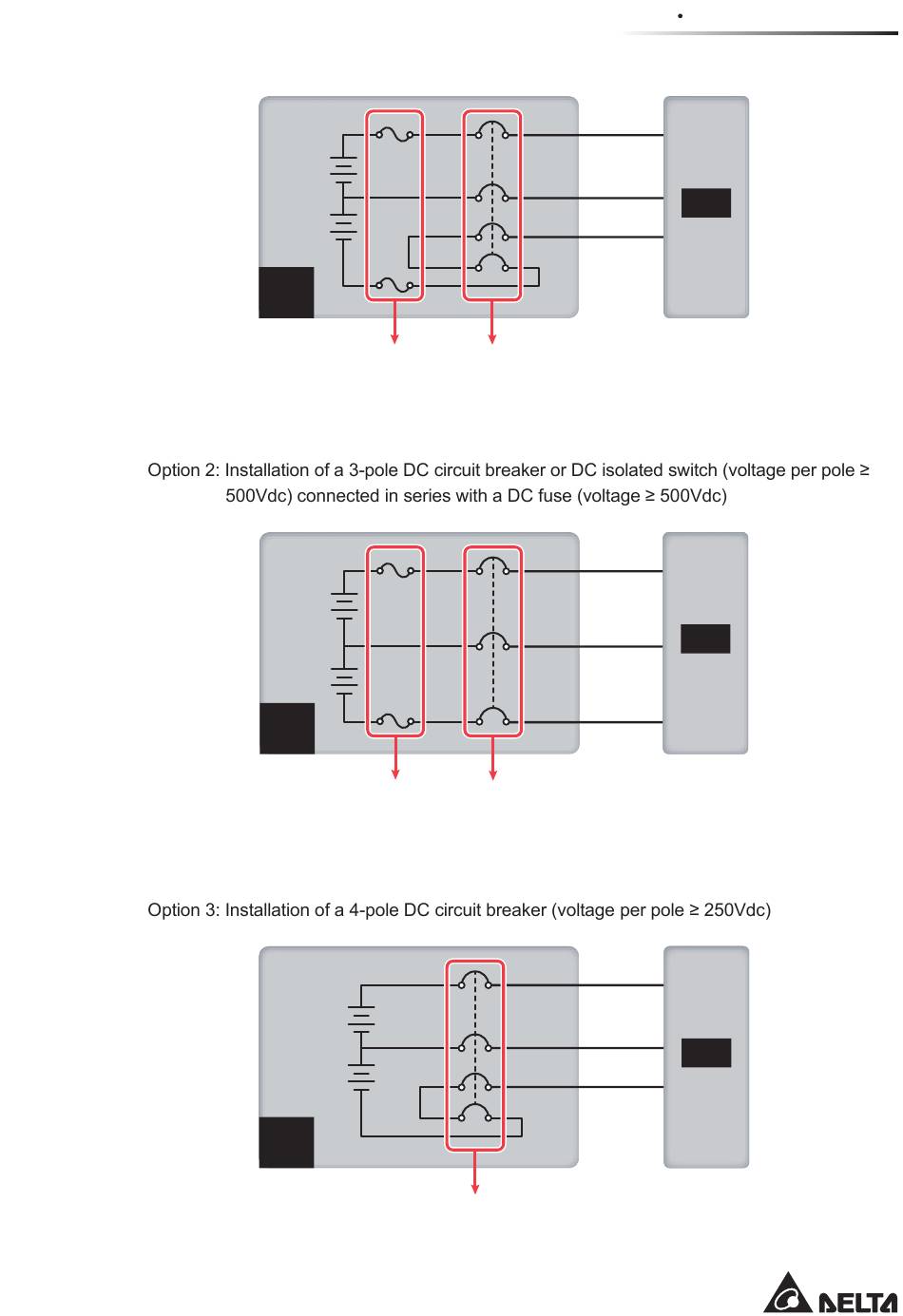

(Figure 5-21: Installation of a 4-Pole DC Circuit Breaker or DC Isolated Switch
Connected in Series with a DC Fuse)
+
N
-
External
Battery
Cabinet
DC Fuse
(Figure 5-22: Installation of a 3-Pole DC Circuit Breaker or DC Isolated Switch
Connected in Series with a DC Fuse)
+
N
-
External
Battery
Cabinet
(Figure 5-23: Installation of a 4-Pole DC Circuit Breaker)
4-Pole DC Circuit Breaker
or DC Isolated Switch
3-Pole DC Circuit Breaker
or DC Isolated Switch
4-Pole DC Circuit Breaker
5-27
5
Installation and Wiring
+
N
UPS
-
+
N
UPS
-
+
N
UPS
-
