Delta Modulon DPH Series User Manual page 150

7
Go to SETUP
UPS-1.1
MODE SETTING
8
After manually selecting Energy Recycle mode via the LCD, tap the icon (
located in the upper left corner of the screen to go back to the Main Screen.
9
Tap the ON/ OFF Button (
to power on the UPS's inverter. Please select 'YES'.
UPS-1.1
Power Flow
10
After selection of 'YES' to start up the UPS's inverter, each power module will start
up and perform self-inspection. At the same time, the system begins synchronization
with the bypass AC source. After the self-inspection is completed, the UPS will
automatically transfer to run in Energy Recycle mode and perform self-aging test.
Now, the tri-color LED indicator illuminates yellow and the following screen appears.
For the tri-color LED indicator location, please refer to Figure 2-12.
Modulon DPH Series
Mode Setting
MEASUREMENT SETUP MAINTENANCE
Mode Setting
Select to change system mode
On-Line Green

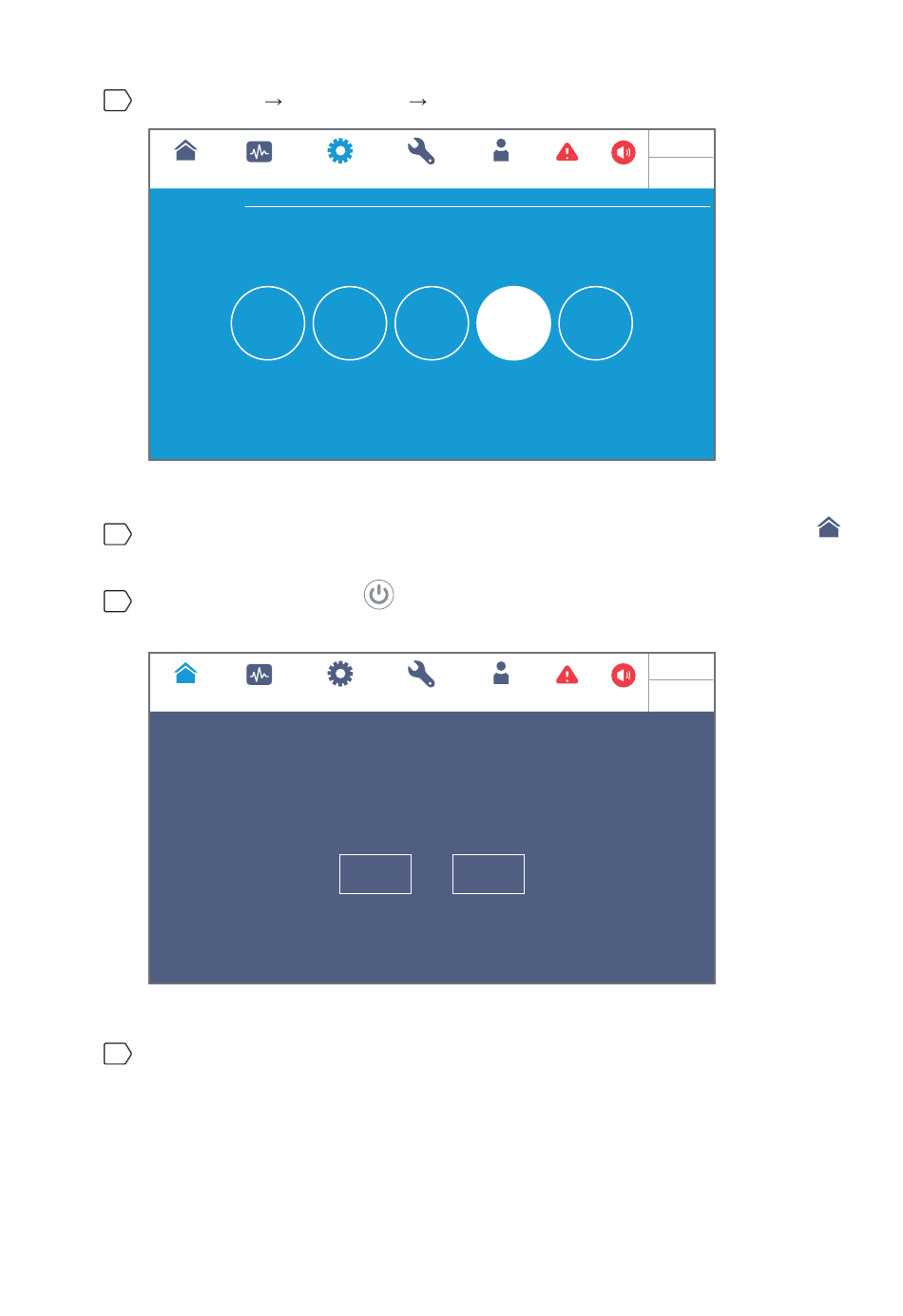

(Figure 6-42: Select Energy Recycle Mode)
MEASUREMENT SETUP MAINTENANCE
POWER ON ?
Yes
(Figure 6-43: Power on Reminder Screen)
Energy Recycle.
