Mounted Perpendicular To Storage - Steelcase c:scape Manual

Mounted Perpendicular
to Storage

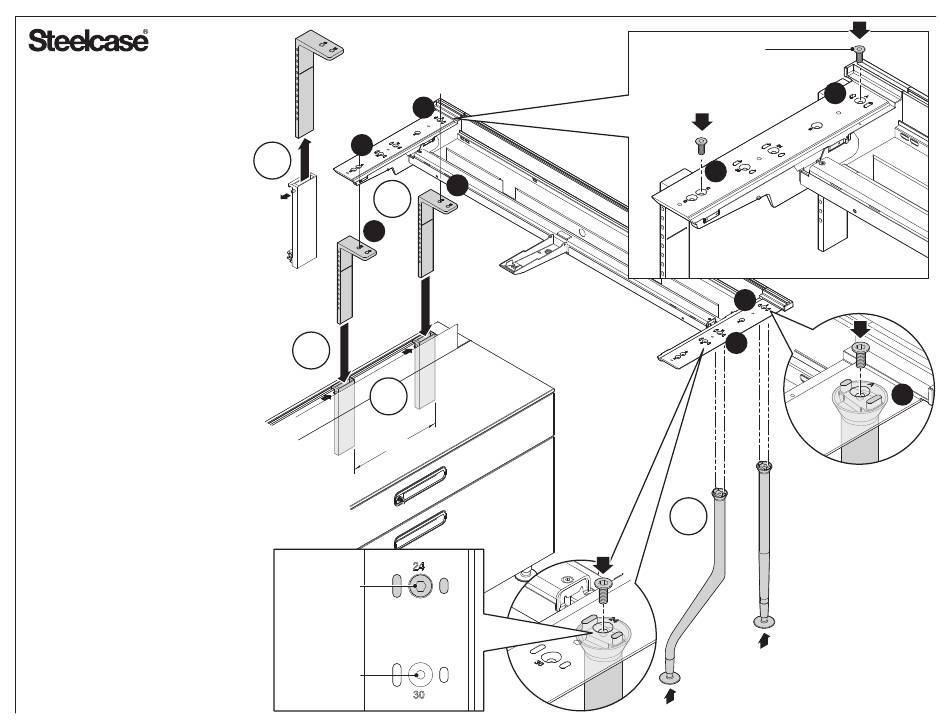

1.
Attach legs to understructure
•Posts use "A".
•"L" leg uses 24" or 30" depending
on worksurface depth.
2.
Loosen set screw on each tether bracket
assembly and remove upper 'L' bracket.
3.
Attach the lower tether assemblies to
storage.
•1st bottom tether assembly is
2" from back edge of desk.
•2nd bottom tether assembly is
16-1/2" edge to edge of 1st
bottom tether assembly.
4.
Attach upper 'L' tether brackets to
understructure.
•Understructure "A" and "C" to
'L' tether bracket "S" (STORAGE).
5.
If you are installing a 'cutout' version
worksurface, you will need to install the felt
liner into the connect zone trough.
6.
Install power and data components.
7.
Install worksurface onto understructure.
8.
Lower worksurface assembly into tether
brackets on storage unit.
9.
Lower to proper height and tighten set
screws on tether bracket.
10.
Level the unit.
11.
Adjust front bracket
to contact the top.
A
C
2
4
S
8
3
16-1/2"
24" DEEP
WORKSURFACE
LEG LOCATION
30" DEEP
WORKSURFACE
LEG LOCATION
S
3/8-16 X 3/4" BOLT
A
C
A
24
1
Page 15 of 21
939505503 Rev A
