Mounted Perpendicular
to Beam

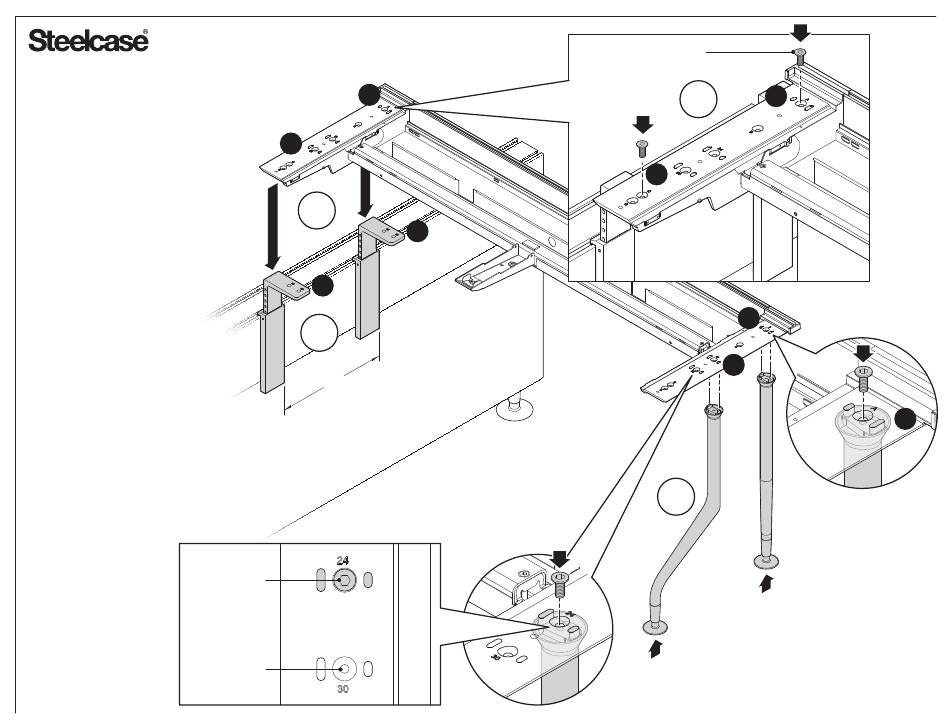

1.
Attach legs to understructure
•Posts use "A".
•"L" leg uses 24" or 30"
depending on worksurface
depth.
2.
Attach tethers to beam
•1st tether is 2" from back
edge of desk.
•2nd tether is 16-1/2" edge
to edge of 1st tether.
3.
Attach understructure onto
tethers
•Understructure "A" and "C"
to tether "B" (BEAM).
4.
If you are installing a 'cutout'
version worksurface, you will need
to install the felt liner into the
connect zone trough.
5.
Install power and
data components.
6.
Install worksurface
WORKSURFACE
onto understructure.
LEG LOCATION
7.
Level the unit.
8.
Adjust front bracket
WORKSURFACE
to contact the top.
LEG LOCATION
A
C
3
B
2
16-1/2"
24" DEEP
30" DEEP
B
3/8-16 X 3/4" BOLT
3 A
C
A
24
1
A
