Steelcase, Inc.
Grand Rapids, MI 49501
U.S.A.
1-888-783-3522

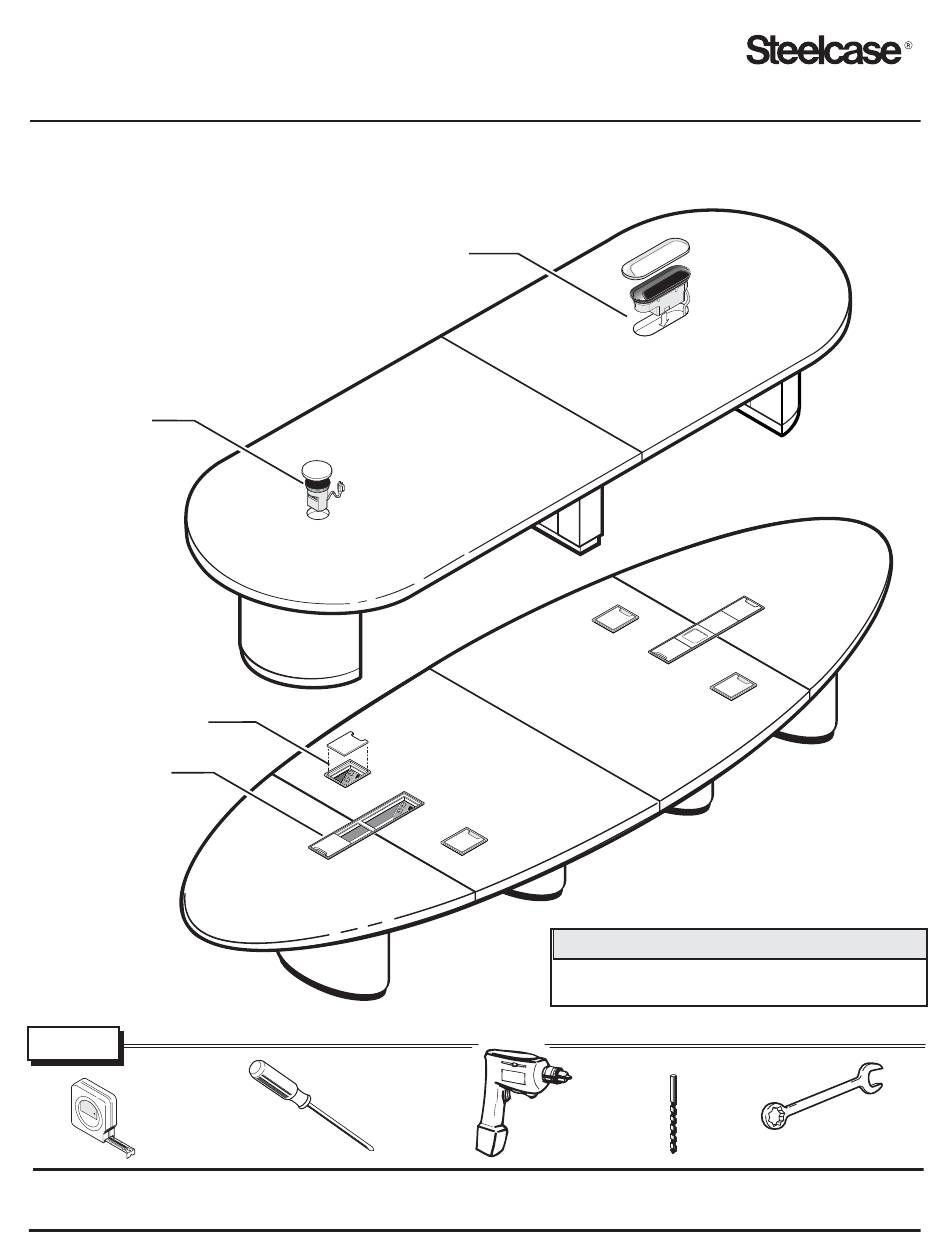

Convene - Sectional Table Top Assembly
RACETRACK TOP WITH ROUND
AND OVAL POWER PORTS
ROUND
POWER PORT
POWER UNIT
POWER CHANNEL
TOOLS
47
80
86
48
L u
9
f k i n
Tape Measure
3 m
R
/ 1 0
'
Assembly Directions
and Table Base Installation
OVAL
POWER PORT
Screw Driver
Printed in U.S.A.
POWER UNIT/CHANNEL
IMPORTANT NOTE
Install Power Unit/Power Channel before base.
(See Assembly Direction N9501956)
1/8"
Power Driver
Drill Bit
w/square tip
OVAL TOP WITH
7/16" Wrench
Page 1 of 11
N9501959 Rev. F
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Steelcase Convene
Summary of Contents for Steelcase Convene
- Page 1 Steelcase, Inc. Grand Rapids, MI 49501 U.S.A. 1-888-783-3522 Convene - Sectional Table Top Assembly and Table Base Installation OVAL POWER PORT RACETRACK TOP WITH ROUND AND OVAL POWER PORTS ROUND POWER PORT POWER UNIT POWER CHANNEL OVAL TOP WITH POWER UNIT/CHANNEL IMPORTANT NOTE Install Power Unit/Power Channel before base.
- Page 2 Insert spacers into machine slot along top edge, spacing them equally along length. DO NOT GLUE. Push table top sections together and check alignment. Steelcase N9501959 REV. F Page 2 of 11...
- Page 3 NOTE: When assembling tops having three or more sections, completely assemble two sections separately. Attach hanger brackets to one of the completed sections (see figure B), then upright assembled sections to complete assembly. Steelcase N9501959 REV. F Page 3 of 11...
- Page 4 (10) screws. Install screws into these pilot holes. #10 x 1-3/4” SPIDER BRACKET Secure table base with screws (#10 X 1- 3/4”, 3 per foot). Steelcase N9501959 REV. F Page 4 of 11...
- Page 5 B. Attach plate to base with #10 counter sink screws (shipped with base). Ensure screw heads are flush MACHINE with plate RECESS REMOVABLE BASE ACCESS DOOR #10 COUNTER SINK SCREWS DRUM BASE Steelcase N9501959 REV. F Page 5 of 11...
- Page 6 U-BASES Follow these steps to attach reinforcement brackets to Rectangular and U-Bases on your Convene conference table. It’s important that you install four brackets per base, one bracket on front and back of each leg. Align holes in bracket with holes in plate.
- Page 7 Base access door can be removed for ease of base installation. Align base bracket with predrilled pilot holes. PILOT Mark and drill additional pilot holes, then secure HOLE with screws provided (#10 X 7/8”). Steelcase N9501959 REV. F Page 7 of 11...
- Page 8 HALF DRUM ELLIPTICAL BASE BASE Locate Base Brackets with either inside or outside set of holes, then install with (12) screws. CIRCULAR DRUM BASE X - BASE RECTANGULAR U - BASE BASE Steelcase N9501959 REV. F Page 8 of 11...
- Page 9 X Base U Base Elliptical Drum 60 X 192 Drum Half Drum Rectangle X Base U Base Elliptical Drum 60 X 216 Drum Half Drum Rectangle X Base U Base Elliptical Drum OVAL Steelcase N9501959 REV. F Page 9 of 11...
- Page 10 X Base U Base Elliptical Drum 66 X 168 Drum Half Drum Rectangle X Base U Base Elliptical Drum 72 X 168 Drum Half Drum Rectangle X Base U Base Elliptical Drum Steelcase N9501959 REV. F Page 10 of 11...
- Page 11 X Base U Base Elliptical Drum 72 X 192 Drum Half Drum Rectangle X Base U Base Elliptical Drum 75.5 72 X 216 Drum Half Drum Rectangle X Base U Base Elliptical Drum Steelcase N9501959 REV. F Page 11 of 11...
