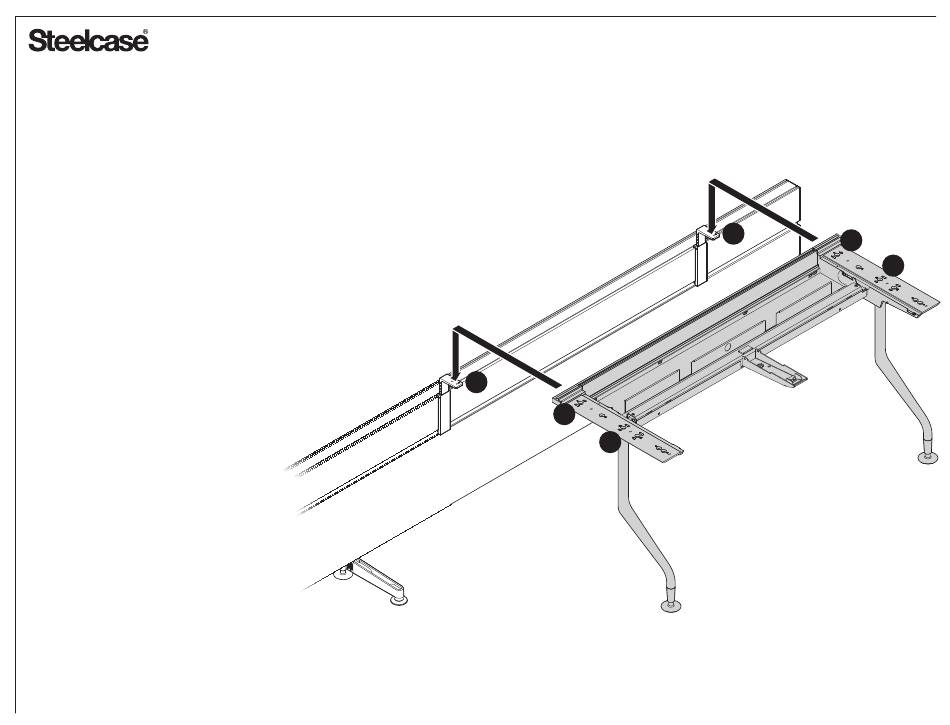

Mounted Parallel to Beam

1.
Attach legs to understructure
•"L" leg uses 24" or 30" depending on
worksurface depth.
2.
Attach tethers to beam
•1st tether 2" from desired edge of desk
location.
•2nd tether specing depends on width of
desk and types of attachment:
-Single desk: 6" less than overall width.
-Benching application, one end shared:
3" less than overall width of desk.
-Benching application, both end shared:
same as overall width of desk.
3.
Attach understructure "A" onto
tethers using positions "B" (BEAM).
4.
Level unit.
5.
If you are installing a 'cutout' version
worksurface, you will need to install the felt
liner into the connect zone trough.
6.
Install power and data components.
7.
Install worksurface and level.
B
A
24
B
A
24
