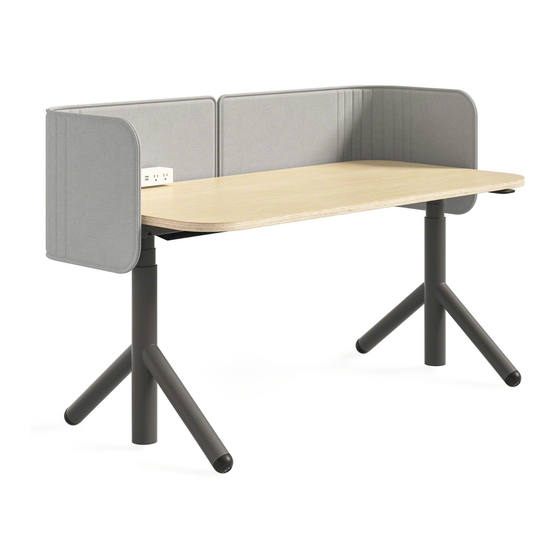

Steelcase Flex Series Manual

Hide thumbs Also See for Flex Series:

Manual (29 pages)

Quick manual (40 pages)

User manual (133 pages)

page of 30

/ 30
Bookmarks

Quick Links

Download this manual

Steelcase

Flex Collection - Height Adjustable Desk pg. 5, 8-22

Desk Curve Screen pg. 6, 23-27

Cable Manager pg. 7, 28

T-27

5mm

Optional

Height Adjustable Desk

Desk Curve Screen

Cable Manager

Page 1 of 30

Doc # 137597 Rev D

Need help?

Do you have a question about the Flex Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Steelcase Flex Series

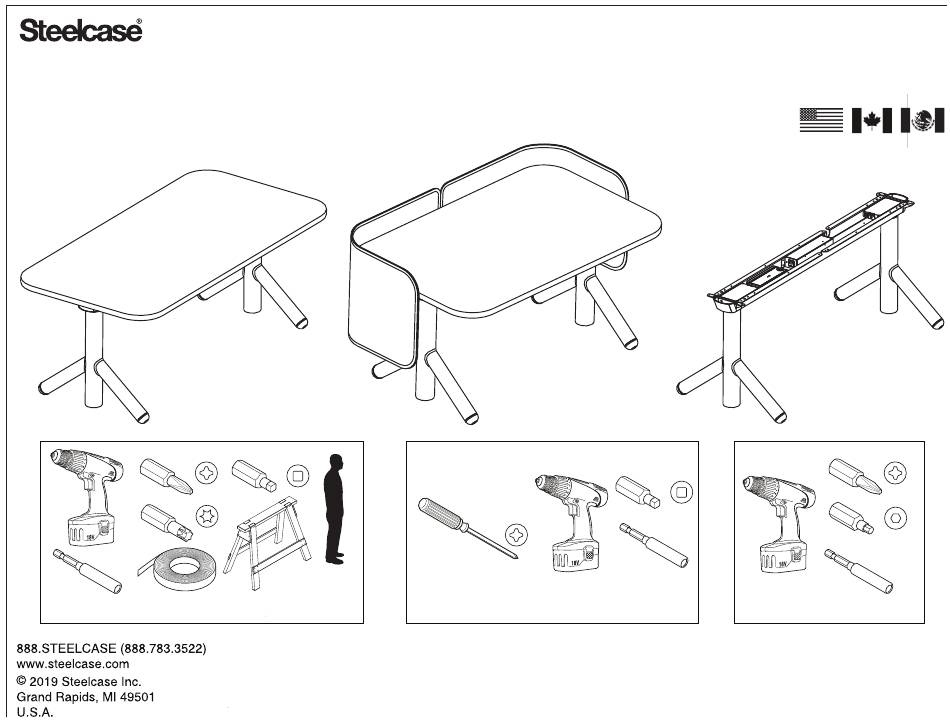

Page 1 Steelcase ® Flex Collection - Height Adjustable Desk pg. 5, 8-22 Desk Curve Screen pg. 6, 23-27 Cable Manager pg. 7, 28 T-27 Optional Height Adjustable Desk Desk Curve Screen Cable Manager Page 1 of 30 Doc # 137597 Rev D...
Page 2 IMPORTANT SAFETY INSTRUCTIONS: Read all instructions before using this furnishing. Please save these instructions. WARNING RISK OF SERIOUS INJURY DUE TO PINCH POINTS, TIPOVER, OR POTENTIAL COLLAPSE. RISK OF DEATH OR SERIOUS INJURY. CRUSH HAZARD - DO NOT PLACE FEET, LEGS OR OTHER BODY PARTS ON OBJECTS PLACED UNDER TABLE TOP OR BELOW MODESTY PANEL.
Page 3 BASE-ONLY WARNING RISK OF SERIOUS INJURY: MANDATORY REQUIREMENTS REGARDLESS OF WORKSURFACE MATERIAL OR CONSTRUCTION: WORKSURFACE DEPTH WORKSURFACE WIDTH ≥ ≤ WORKSURFACE OVERHANG Page 3 of 30 Doc # 137597 Rev D...
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS PLEASE SAVE THESE INSTRUCTIONS, AND THE USER GUIDE, IN AN OBVIOUS PLACE FOR THE END USER AFTER ASSEMBLY. Products with Polarized Plugs WARNING To reduce the risk of burns, fire, electric shock or injury to persons: Products with Grounded Plugs The desk or table shall be installed near power socket &...
Page 5 These drawings identify the parts included with your Height Adjustable Table. Some of these parts are considered by regulatory bodies to be critical components. If any parts shown here do not match your order, please contact Steelcase at www.steelcase.com/contact-us OPTIONAL...
Page 6 These drawings identify the parts included with your Height Adjustable Table. Some of these parts are considered by regulatory bodies to be critical components. If any parts shown here do not match your order, please contact Steelcase at www.steelcase.com/contact-us Screen Component List 1218269001 HARDWARE KIT #8-15 x 1/2"...
Page 7 These drawings identify the parts included with your Height Adjustable Table. Some of these parts are considered by regulatory bodies to be critical components. If any parts shown here do not match your order, please contact Steelcase at www.steelcase.com/contact-us Cable Tray Component List 1280049001 HARDWARE KIT #10-16 x 1/2"...
Page 8 10 Nm (88.50 in-lbs) Page 8 of 30 Doc # 137597 Rev D...
Page 9 10 Nm (88.50 in-lbs) Page 9 of 30 Doc # 137597 Rev D...
Page 10 7.5 Nm (66.38 in-lbs) Page 10 of 30 Doc # 137597 Rev D...
Page 11 Alternative Base Assembly 7.5 Nm (66.38 in-lbs) Page 11 of 30 Doc # 137597 Rev D...
Page 12 Page 12 of 30 Doc # 137597 Rev D...
Page 13 Desk Without Underside Power Page 13 of 30 Doc # 137597 Rev D...
Page 14 Desk Without Underside Power Page 14 of 30 Doc # 137597 Rev D...
Page 15 Desk With Underside Power Page 15 of 30 Doc # 137597 Rev D...
Page 16 Desk With Underside Power Page 16 of 30 Doc # 137597 Rev D...
Page 17 Desk With Underside Power Page 17 of 30 Doc # 137597 Rev D...
Page 18 Page 18 of 30 Doc # 137597 Rev D...
Page 19 Page 19 of 30 Doc # 137597 Rev D...
Page 20 Page 20 of 30 Doc # 137597 Rev D...
Page 21 Page 21 of 30 Doc # 137597 Rev D...
Page 22 Overhang Position Layout 1472.9mm (57.99") : X = 36.9mm (1.45") 1473.2mm (58") 1828.8mm (72") : X = 228.6mm (9") Page 22 of 30 Doc # 137597 Rev D...
Page 23 Cross-Recessed Drive Desk Screen Mount Use a Cross-Recessed Cross-Recessed Drive screwdriver, but if you’re going to use a power tool you need to turn the torque down! Not doing so can damage the plastic magnet holder! 1/2" Large Magnets DISCLAIMER: This component is not covered by the scope of the National Recognized Test Lab (NRTL) Listing.
Page 24 ® Small Magnet Align small magnet with opening of magnet holder. Release magnet, magnet will fall into place within magnet holder, on top of existing magnet. DISCLAIMER: This component is not covered by the scope of the National Recognized Test Lab (NRTL) Listing.
Page 25 Page 25 of 30 Doc # 137597 Rev D...
Page 26 Page 26 of 30 Doc # 137597 Rev D...
Page 27 Page 27 of 30 Doc # 137597 Rev D...
Page 28 Cable Tray Mount Page 28 of 30 Doc # 137597 Rev D...
Page 29 Page 29 of 30 Doc # 137597 Rev D...
Page 30 Page 30 of 30 Doc # 137597 Rev D...
