Steelcase Flex Series Manual
Hide thumbs
Also See for Flex Series:
- Quick manual (40 pages) ,
- Manual (30 pages) ,
- User manual (133 pages)
Advertisement
Quick Links
Download this manual
See also:
Quick Manual
Steelcase
®

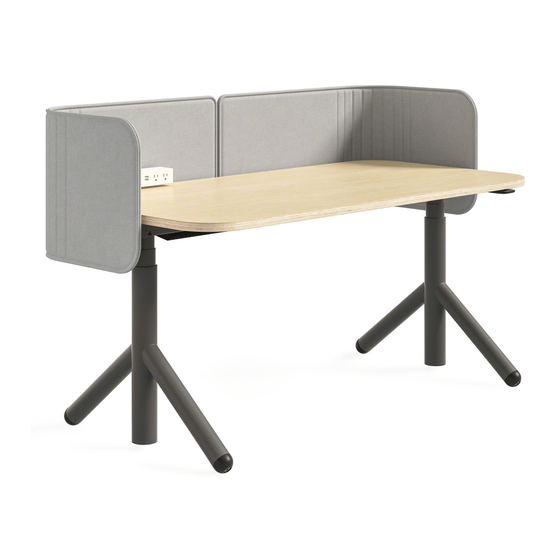

Flex Collection - Height Adjustable Desk pg. 5, 8-22
Desk Curve Screen pg. 6, 23-26
Cable Manager pg. 7, 27
T-20
T-27
5mm
2x
2x
Optional
Height Adjustable Desk
Desk Curve Screen
Cable Manager
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Steelcase Flex Series
Summary of Contents for Steelcase Flex Series

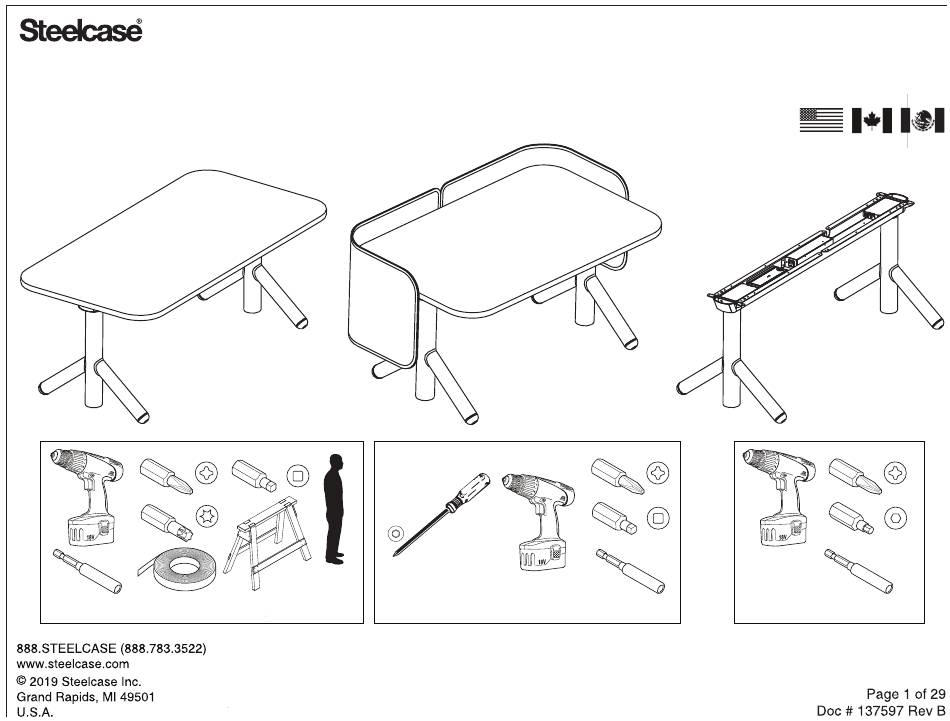

- Page 1 Steelcase ® Flex Collection - Height Adjustable Desk pg. 5, 8-22 Desk Curve Screen pg. 6, 23-26 Cable Manager pg. 7, 27 T-20 T-27 Optional Height Adjustable Desk Desk Curve Screen Cable Manager...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS: Read all instructions before using this furnishing. Please save these instructions. WARNING RISK OF SERIOUS INJURY DUE TO PINCH POINTS, TIPOVER, OR POTENTIAL COLLAPSE. RISK OF DEATH OR SERIOUS INJURY. CRUSH HAZARD - DO NOT PLACE FEET, LEGS OR OTHER BODY PARTS ON OBJECTS PLACED UNDER TABLE TOP OR BELOW MODESTY PANEL.
- Page 3 BASE-ONLY WARNING RISK OF SERIOUS INJURY: MANDATORY REQUIREMENTS REGARDLESS OF WORKSURFACE MATERIAL OR CONSTRUCTION: WORKSURFACE DEPTH WORKSURFACE WIDTH ≥ ≤ WORKSURFACE OVERHANG...
- Page 4 IMPORTANT SAFETY INSTRUCTIONS PLEASE SAVE THESE INSTRUCTIONS, AND THE USER GUIDE, IN AN OBVIOUS PLACE FOR THE END USER AFTER ASSEMBLY. Products with Polarized Plugs WARNING To reduce the risk of burns, fire, electric shock or injury to persons: Products with Grounded Plugs The desk or table shall be installed near power socket &...
- Page 5 These drawings identify the parts included with your Height Adjustable Table. Some of these parts are considered by regulatory bodies to be critical components. If any parts shown here do not match your order, please contact Steelcase at www.steelcase.com/contact-us OPTIONAL...
- Page 6 These drawings identify the parts included with your Height Adjustable Table. Some of these parts are considered by regulatory bodies to be critical components. If any parts shown here do not match your order, please contact Steelcase at www.steelcase.com/contact-us Screen Component List...
- Page 7 These drawings identify the parts included with your Height Adjustable Table. Some of these parts are considered by regulatory bodies to be critical components. If any parts shown here do not match your order, please contact Steelcase at www.steelcase.com/contact-us Cable Tray Component List 1280049001 HARDWARE KIT #10-16 x 1/2"...
- Page 8 10 Nm (88.50 in-lbs)
- Page 9 10 Nm (88.50 in-lbs)
- Page 10 7.5 Nm (66.38 in-lbs)
- Page 11 Alternative Base Assembly 7.5 Nm (66.38 in-lbs)
- Page 13 Desk Without Underside Power...
- Page 14 Desk Without Underside Power...
- Page 15 Desk With Underside Power...
- Page 16 Desk With Underside Power...
- Page 17 Desk With Underside Power...
- Page 22 Overhang Position Layout 1472.9mm (57.99") : X = 36.9mm (1.45") 1473.2mm (58") 1828.8mm (72") : X = 228.6mm (9")
- Page 23 T-20 Desk Screen Mount Use a T-20 screwdriver, but if you’re going to use a power tool you need to turn the torque down! Not doing so can damage the plastic magnet holder! DISCLAIMER:...
- Page 27 Cable Tray Mount...
