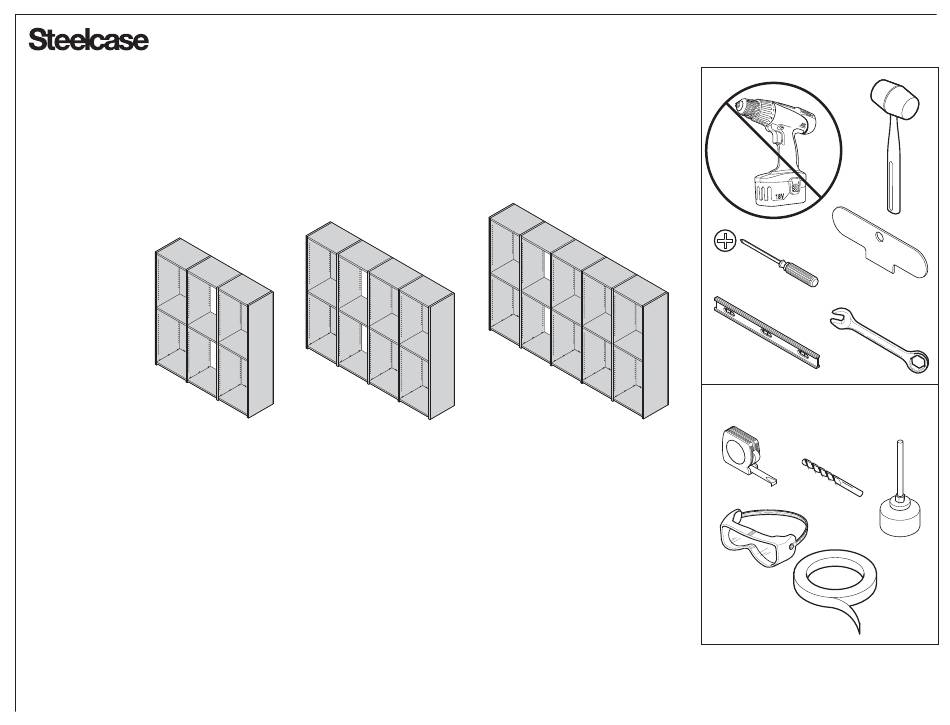

3 Unit
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2012 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.
NOTE:
Two people are recommended for the assembly of Workwall.
Make sure to assemble Workwall on a clean, padded surface
to avoid any scratches or damage to any of the parts.
4 Unit
NOTE:
Workwall can be used as a divider with
doors on either side of the unit.
NOTE:
Make sure the assembly has been completed
before removing all of the E, B, I, MC, ect.
stickers from the surfaces of all the parts.
Currency
#2
TOOLS FOR INSTALLING A 3" GROMMET ONLY
5 Unit
- Workwall
®
CAM LOCK
ADJUSTMENT TOOL
1/8"
(3.1 mm)
Drill Bit
3"
(76.2 mm)
Drill Bit
Page 1 of 12
939500279 Rev E
Advertisement
Related Manuals for Steelcase Currency Workwall
Summary of Contents for Steelcase Currency Workwall
- Page 1 If you have a problem, question, or request, call Drill Bit stickers from the surfaces of all the parts. your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
- Page 2 ® Components Letter Description End Panel Back Panel Inner Panel Top Shelf Middle Shelf, Closed Lower Shelf, Closed Middle Shelf, Open Lower Shelf, Open Adjustable Shelf Page 2 of 12 939500279 Rev E...
- Page 3 ® (Tips for Proper Alignment of Parts) Use mallet, before tightening cam screws, to CAM LOCK ADJUSTMENT TOOL bring parts together and avoid light leaks. TURN WRONG CLOCKWISE Make sure the cam lock is located parallel Fasten Cam Locks If the cam lock screw is not to the side of the visible, you have installed (The cam lock screw needs to...
-
Page 4: Opening Unit
® For ease of assembly, it is recommended to lay down the end panel (E) as shown. 3 Opening Unit NOTE: Before assembling each part, please make sure cams are parallel to the side of the surface & pins are nicely screwed with the collar touching the edge of the part. - Page 5 ® NOTE: Before assembling each part, please make sure cams are parallel to the side of the surface & pins are nicely screwed with the collar touching the edge of the part. (See page 3 for proper alignment of parts) Use mallet, before tightening cam screws, to bring parts together and avoid light leaks.
- Page 6 ® NOTE: Before assembling each part, please make sure cams are parallel to the side of the surface & pins are nicely screwed with TURN the collar touching the edge of the part. CLOCKWISE (See page 3 for proper alignment of parts) Use mallet, before tightening Fasten Cam Locks in 9 places (The cam lock screw needs to be turned...
- Page 7 ® NOTE: Before assembling each part, please make sure cams are parallel to the side of the surface & pins are nicely screwed with the collar touching the edge of the part. (See page 3 for proper alignment of parts) TURN Use mallet, before tightening cam screws, to CLOCKWISE...
- Page 8 ® NOTE: Before assembling each part, please make sure cams are parallel to the side of the surface & pins are nicely screwed with the collar touching the edge of the part. (See page 3 for proper alignment of parts) Use mallet, before tightening cam screws, to bring parts together and avoid light leaks.
-
Page 9: Adjustable Shelf Installation
® Adjustable Shelf Installation NOTE: The following is applicable to all scenarios. 3 unit is shown as an example. Insert shelf pins into side of wall. Repeat for other side. Before inserting shelf into unit, there are notches on the underside of the shelf which the pin fits into. - Page 10 ® Moving a Back Panel from one Opening to Another NOTE: The following is applicable to all scenarios. 3 opening unit is shown as an example. All three (3) fixed shelves can be rotated 180 and the back panel can be installed on the other side.
- Page 11 ® Push panel B outward first (2a) and then pull downward (2b). Remove panel B (2c). To make an open unit into a closed unit, you need to rotate the top shelf 180 and order a new middle and bottom fixed shelves. Page 11 of 12 939500279 Rev E...
- Page 12 ® Grommet Installation NOTE: The following is applicable to all scenarios. 3 unit is shown as an example. Determine placement of grommet. Check under shelf for possible interference with bases or hardware Make sure to stay 1-1/2" - 2" away from cams and pins that are used to assemble the unit.
