Back-To-Back Desks Perpendicular To Beam - Steelcase c:scape Manual

Back-to-Back Desks
Perpendicular to Beam

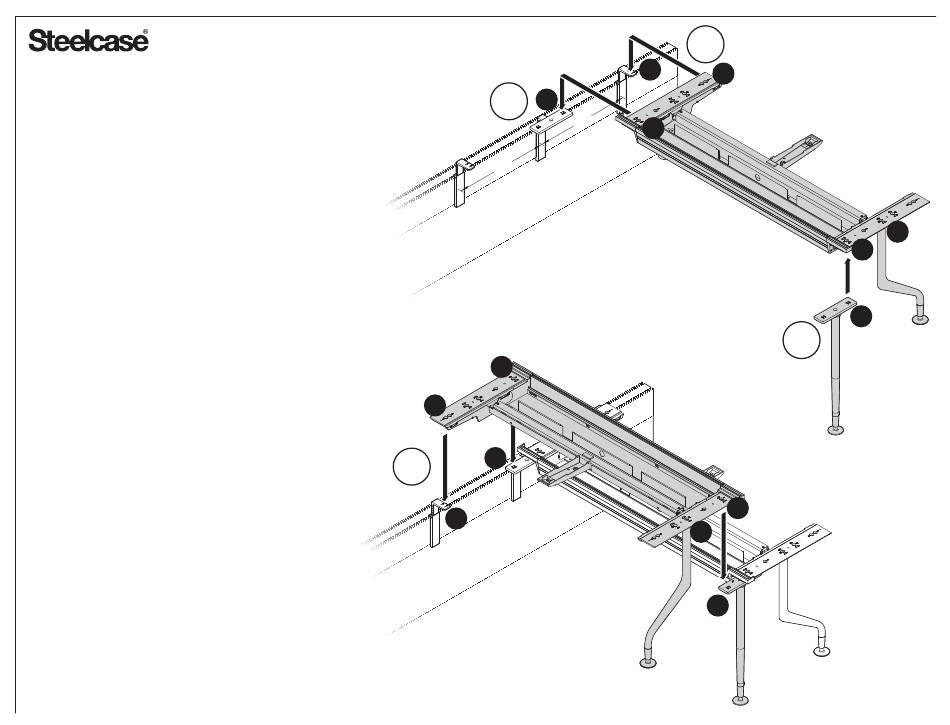

1.
Attach legs to understructure
•"L" leg uses 24" or 30" depending on worksurface depth.
•Attach shared plate to top of post leg.
NOTE: You need to lower leg height by 1 detent (1/2").
•Attach shared support plate "G" to understructure "A".
2.
Attach tethers to beam or storage
•Sub-assemble shared plate to tether "B".
•Lower tether 1 detent (1/2") to account for plate
thickness.
•Install shared tether centerline to back edge of desk.
•2nd and 3rd tethers 21" edge to edge of shared tether.
3.
Attach understructure onto tethers
•Understructure "A" to shared support plate "G" (GAP).
•Understructure "D" to tether "B" (BEAM).
4.
Attach 2nd understructure onto tethers:
•Understructure "A" to shared support plate "G" (both ends).
•Understructure "D" to tether "B".
5.
Level both units.
6.
If you are installing a 'cutout' version worksurface, you will
need to install the felt liner into the connect zone trough.
7.
Install power and data components.
8.
Install worksurfaces and level.
2
G
21"
21"
A
D
G
4
B
3
B
D
A
1
A
24
G
24
A
G
Page 16 of 21
939505503 Rev A
