Benching - Mounted Parallel To Beam Tethered To Storage - Steelcase c:scape Manual

Benching - Mounted Parallel to
Beam Tethered to Storage
(continued)

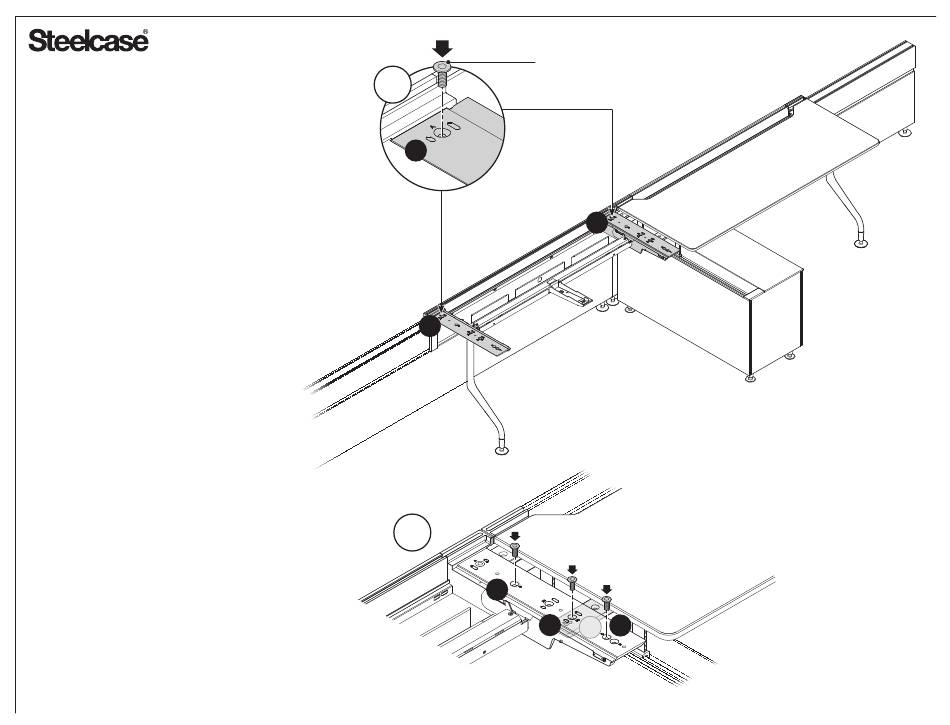

8.
Install power and data components.
9.
Install worksurface onto understructure.
10.
Lower worksurface assembly into tether
brackets on storage unit.
11.
Lower to proper height and tighten set screws
on tether bracket.
12.
Attach leg to understructure.
•"L" leg uses 24" or 30" depending on
worksurface depth.
13.
Place understructure in position and attach.
•Understructure "A" and "30" to
support plate "F" (FLUSH).
•Understructure "B" and "C" to upper
'L' tether bracket "S" (STORAGE).
14.
If you are installing a 'cutout' version
worksurface, you will need to install the felt liner into
the connect zone trough.
15.
Install power and data components.
16.
Install worksurface onto understructure.
17.
Level units.
18.
Adjust front bracket to contact the top.
3/8-16 X 3/4" BOLT
13
A
A
13
B
30
A
ALTERNATE ATTACHMENT METHODS:
Attach understructures to beam/storage units
prior to worksurface attachment & attach
worksurface with 90 degree driver.
NOTE: 90 degree driver must be used when
benching application consists of storage units
on both ends of desk.
C
F
