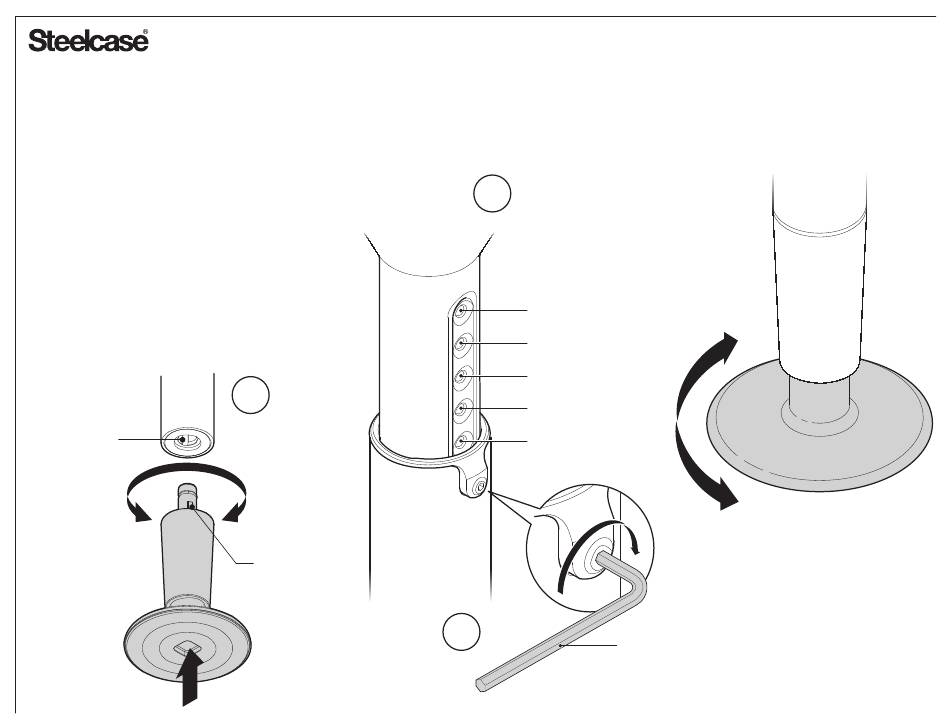

Adjusting Legs
1.
Loosen set screw using a 3/32" hex drive,
raise or lower to desired height and tighten screw.
NOTE: Ensure set screw is properly seated in
detent of desired height.
2.
Legs are factory pre-set to the 28-1/2" height
once fully assembled (5 detents showing).
3.
Align ribs on glide stem with grooves inside leg
before inserting glide into leg.
GROOVES
Major Vertical
Adjustment
3
RIBS
1.
Spin glide base to adjust
glides. Glide has 3/4" of
2
adjustment.
26" HEIGHT
26-1/2" HEIGHT
27" HEIGHT
27-1/2" HEIGHT
28" HEIGHT
1
3/32" HEX DRIVE OR
ALLEN WRENCH
Minor Vertical
Adjustment
