Freestanding
Application

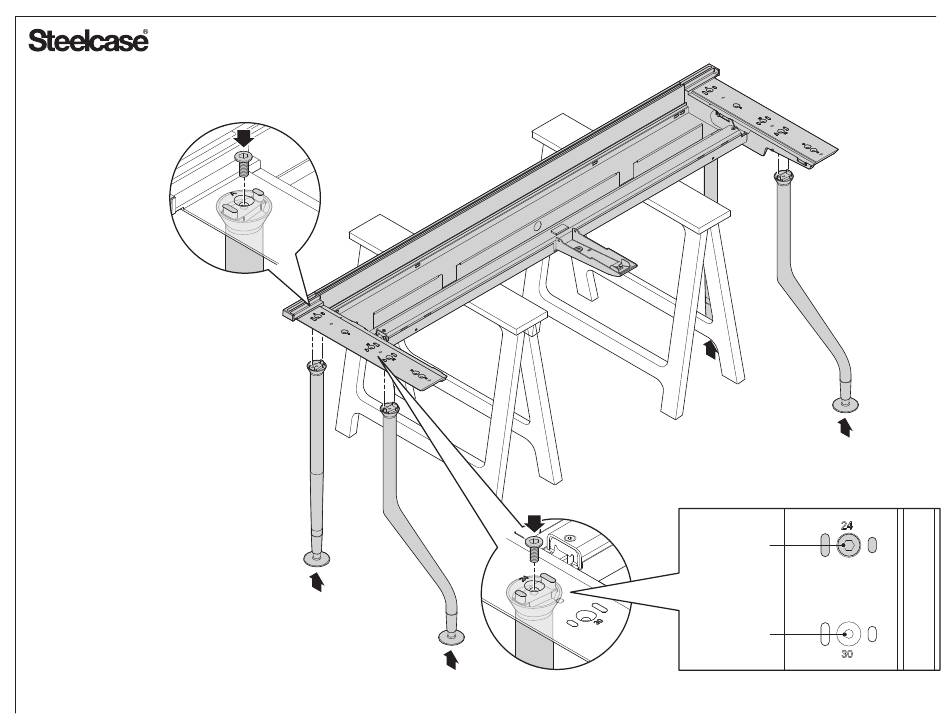

1.
Rest understructure
on supports.
2.
Pre-set the height of
legs and attach.
3.
If you are installing a
'cutout' version worksurface,
you will need to install the
felt liner into the connect
zone trough.
4.
Install any electrical
(RPT's).
5.
Install worksurface
onto understructure.
6.
Level the unit.
7.
Adjust front bracket
to contact the top.
24" DEEP
WORKSURFACE
LEG LOCATION
30" DEEP
WORKSURFACE
LEG LOCATION
Page 13 of 21
939505503 Rev A
