Mounted Perpendicular
to Beam or Storage

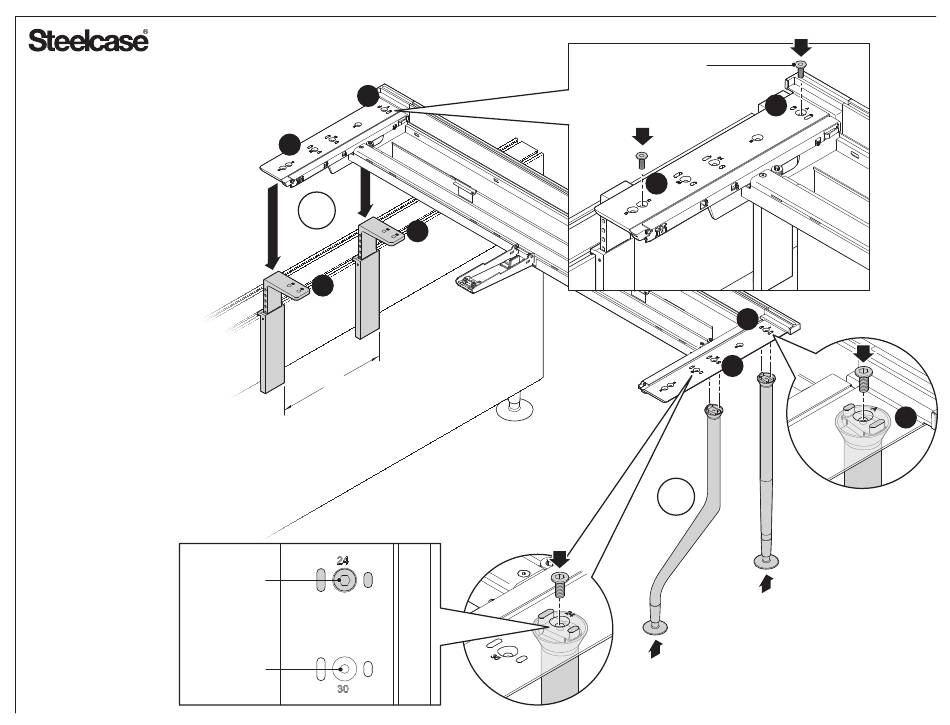

1.
Attach legs to understructure
•Posts use "A".
•"L" leg uses 24" or 30"
depending on worksurface
depth.
2.
Attach tethers to beam or
storage
•1st tether is 2" from back
edge of desk.
•2nd tether is 16-1/2" edge
to edge of 1st tether.
3.
Attach understructure onto
tethers
•For attaching to beam:
Understructure "A" and "C"
to tether "B" (BEAM).
•For attaching to storage:
Understructure "A" and "C"
to tether "S" (STORAGE).
4.
Level unit.
5.
Install power and
data components.
WORKSURFACE
6.
LEG LOCATION
Sub-assemble
worksurface and
mounting brackets.
7.
Install worksurface
WORKSURFACE
and level.
LEG LOCATION
8.
Install covers.
A
C
2
B
16-1/2"
24" DEEP
30" DEEP
B
3/8-16 X 3/4" BOLT
A
C
A
24
1
A
Page 18 of 24
939500367 Rev E
