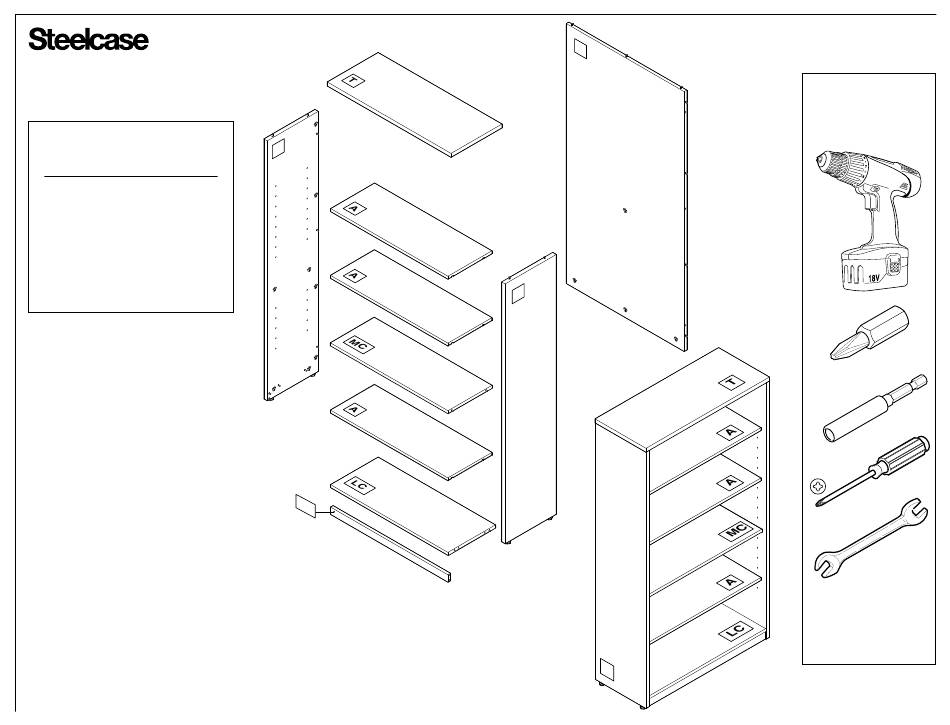

Components
Letter Description
E
End Panel
B
Back Panel
T
Top Panel
MC
Middle Fixed Shelf
LC
Lower Fixed Shelf
A
Adjustable Shelf
LO
Kick Plate
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2012 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.
E
L O
B
E
E
®
Currency
Bookcase
#2 ACR BIT
Page 1 of 6
939500297 Rev D
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Steelcase Currency Bookcase
Summary of Contents for Steelcase Currency Bookcase
- Page 1 Kick Plate #2 ACR BIT If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
- Page 2 ® (Tips for Proper Alignment of Parts) Use mallet, before tightening cam screws, to bring parts together and avoid light leaks. CAM LOCK ADJUSTMENT TOOL TURN WRONG CLOCKWISE Make sure the cam lock is located parallel to the side of the If the cam lock screw is not Fasten Cam Locks surface as shown.
- Page 3 ® NOTE: Assemble as close to assembled units final desired location to avoid moving a heavy unit. Lower the B (back panel) onto E (end panel) as shown. Make sure pins engage into cams (see page 2 for alignment of parts). Lower LC (lower fixed shelf) (2a) and MC (middle fixed shelf) (2b) onto the end panel and against the back panel.
- Page 4 ® Lower the second E (end panel) onto the back panel, middle fixed shelf and lower fixed shelf as shown. Start at the top of the unit and work towards the bottom, aligning each pin and dowel. This may require a rubber mallet to fully seat all of the pins. Align five (5) black plastic brackets with the lower fixed shelf and the end panel or the kick plate as shown.
- Page 5 ® Fasten Cam Locks in 7 places Raise the unit into an upright position as shown. (The cam lock screw needs to be turned TURN 3/4 full turn or 270 clockwise for CLOCKWISE complete engagement.) Lower the T (top panel) onto the back panel and both end panels as shown.
- Page 6 ® NOTCH SHELF SUPPORT PIN Insert twelve (12) shelf pins into holes located on the end panels. Align A (adjustable shelves) withshelf pins and lower onto pins. UNDERSIDE OF SHELF Apply stickers on all visible cam joint faces to Page 6 of 6 cover the connector faces, after assembly.
