Steelcase c:scape Manual

Steelcase c:scape Manual

Desk and supports
Hide thumbs Also See for c:scape:
Table of Contents

Advertisement

Quick Links

Download this manual
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2009 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.

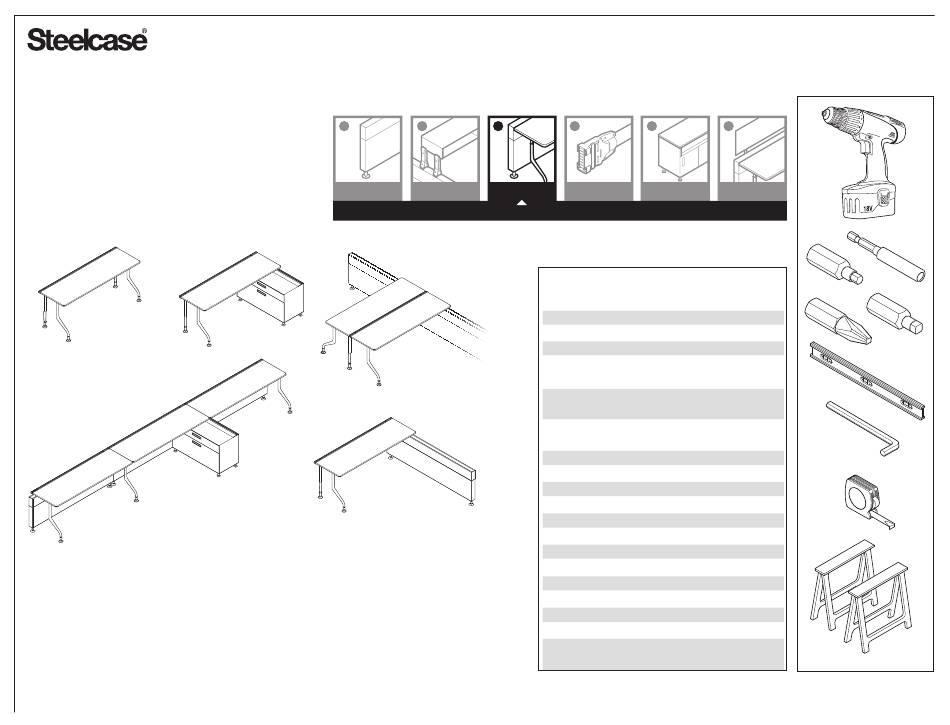

Furniture should be installed in sequence shown below.
1
2
3
BEAM
MID STORAGE
DESKING
THIS INSTALLATION SEQUENCE IS HERE.
c:scape
™
4
5
POWER
LOW STORAGE

Table of Contents

Topic
Desk and Supports
6
PRIVACY
Page
2
3-4
5
6
7
8
9
10
11-12
13-14
15
15
16
17
18
19
20
21-22
23-24
Page 1 of 24
939500367 Rev E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the c:scape and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Steelcase c:scape

Summary of Contents for Steelcase c:scape

  • Page 1: Table Of Contents

    Ensuring a Smooth Sliding Surface Installing Roller Channel Covers If you have a problem, question, or request, call Freestanding Application your local dealer, or Steelcase Line 1 at Mounted Perpendicular to Beam or Storage 888.STEELCASE (888.783.3522) Back-to-Back Desks for immediate action by people who want to help you.

  • Page 2: Uncartoning And Supporting

    Un-Cartoning and Supporting Remove cartoning/packaging materials. NOTE: There are three (3) packages inside the understructure frame. Do not throw these away!! a. Worksurface mounting brackets b. Handle and Latch Mechanism Assembly c. Covers Rest understructure on some type of supports. Page 2 of 24 939500367 Rev E...

  • Page 3: Attaching And Adjusting Legs

    Attaching Legs NOTE: It's easier to pre-set the heights of the legs before attaching them to the frame (see next page). Post legs attach in the "A" position. "L" legs attach in the 24" or 30" position depending on the depth of the worksurface being applied.
  • Page 4 Major Vertical Minor Vertical Adjusting Legs Adjustment Adjustment Loosen set screw using a Spin glide base to adjust 3/32" hex drive, raise or lower to glides. Glide has 3/4" of desired height and tighten adjustment. screw. Legs are factory pre-set to the 28-1/2"...

  • Page 5: Adjusting Height Of Tether Brackets

    TIP: Tether brackets arrive from the factory adjusted for a 28-1/2" desk height. USE "S" POSITION Adjusting Height of WHEN ATTACHING TO LOW STORAGE Tether Brackets USE "B" POSITION WHEN ATTACHING Loosen set screws using a TO BEAM 3/32" Allen/hex drive. Loosen until upper "L"...

  • Page 6: Assembling Tether Brackets To Beam

    Beam Storage Unit w/ Connection Zone Assembling Tether Brackets to Beam or Storage Rail NOTE: If tether is in lowest 2 positions, tether will stick down below the reveal and trap skin on. Beams and storage rails have Mount skin first, then lower tether holes on their undersides, for discrete brackets.

  • Page 7: Locating Tether Brackets To The Beam (Perpendicular Application)

    16-1/2" 2" Locating Tether Brackets BEAM to the Beam (Perpendicular Application) Locate the desired position along the beam for the back edge of the desk. TETHER BRACKET First tether should be 2" from the position to the edge of the tether. Attach tether to beam. Next tether should be 16-1/2"...

  • Page 8: Locating Tether Brackets To The Beam

    Locating Tether Brackets to the Beam (Parallel Application) Locate the desired position along the beam for TETHER the edge of the desk. BRACKET First tether should be 2" LENGTH OF DESK -6" from that position to the edge of the tether. Attach BEAM tether to beam.

  • Page 9: Attaching Desk To Tether Brackets

    Attaching Desk to Tether Brackets 3/8-16 X 3/4" BOLT Place the understructure onto the tether brackets. Align mounting holes of end support with holes in tethers. Connect together using two (2) 3/8-16 x 3/4" bolts. Tighten securely using a 3/16" hex drive. Page 9 of 24 939500367 Rev E...

  • Page 10: Installation Of Electrical Power And Data

    Skip to Power and Data assembly instructions: 939549924 c:scape Modular Desk Power and Data 939549925 c:scape Desk Hardwire Power 939549926 c:scape Desk Connect Zone Power Strip 939549927 c:scape Receptacles - Desk, Base or Storage Page 10 of 24 939500367 Rev E...

  • Page 11: Sub-Assembly Of Worksurfaces

    Sub-Assembly of Worksurfaces Place worksurface upside down on smooth surface. Align mounting brackets to respective pre-drilled pilot holes. Drive three (3) #10-12 x 5/8" screws per bracket with square or phillips driver. TIP: Do not use screws longer than 5/8". Longer screws wil go though worksurface.
  • Page 12 #10-12 X 5/8" SCREW Sub-Assembly of Worksurfaces (continued) Align handle and latch mechanism to respective pre-drilled pilot holes. Drive four (4) #10-12 x 5/8" screws into latch with square or phillips driver. LATCH MECHANISM Slide handle cover back until screw holes align and drive two (2) #10-12 x 5/8"...

  • Page 13: Installing Worksurface To Understructure

    Installing Worksurface to Understructure WORKSURFACE Remove shipping tape from roller channels and slide channels outward. Set worksurface onto end supports centering it onto the understructure, aligning worksurface brackets with roller channels. CHANNEL Page 13 of 24 939500367 Rev E...
  • Page 14 WORKSURFACE Installing Worksurface to Understructure (continued) REAR MOUNTING BRACKET HOOK Slide roller channels FRONT LOOP up against the OF ROLLER worksurface. CHANNEL FRONT MOUNTING LOOP BRACKET TAB Rotate the worksuface guiding the brackets into the loops on the roller channels. As you are rotating the worksurface, guide the rear mounting bracket...

  • Page 15: Ensuring A Level Surface

    Ensuring a Level Surface (Adjusting Desk Front Roller) (To remove any bow in top if necessary) Loosen front screw with a 3/16" hex driver. Slide bracket forward until worksurface is level. Tighten screw. Ensuring a Smooth Sliding Surface (Side-to-side adjustment) (To align worksurface to understructure if necessary) ADJUSTING DESK...

  • Page 16: Installing Roller Channel Covers

    Installing Covers Installing Roller Channel Covers Snap cover onto roller channel engaging spring clips into slots in channel. Slide backward to flush cover to end support. Page 16 of 24 939500367 Rev E...

  • Page 17: Freestanding Application

    Freestanding Application Rest understructure on supports. Pre-set the height of legs and attach. Install any electrical (RPT's). Sub-assemble worksurface and install onto understructure. Level the unit. Adjust front rollers to contact the top. Install covers. 24" DEEP WORKSURFACE LEG LOCATION 30"...

  • Page 18: Mounted Perpendicular To Beam Or Storage

    3/8-16 X 3/4" BOLT Mounted Perpendicular to Beam or Storage Attach legs to understructure •Posts use "A". •"L" leg uses 24" or 30" depending on worksurface depth. Attach tethers to beam or storage •1st tether is 2" from back edge of desk. •2nd tether is 16-1/2"...

  • Page 19: Back-To-Back Desks

    21" Back-to-Back Desks 21" Perpendicular to Beam Attach legs to understructure •"L" leg uses 24" or 30" depending on worksurface depth. •Attach shared plate to top of post leg. NOTE: You need to lower leg height by 1 detent (1/2"). •Attach shared support plate "G"...
  • Page 20 Mounted Parallel to Beam Attach legs to understructure •"L" leg uses 24" or 30" depending on worksurface depth. Attach tethers to beam •1st tether 2" from desired edge of desk location. •2nd tether specing depends on width of desk and types of attachment: -Single desk: 6"...
  • Page 21 Benching - Mounted Parallel to Beam Tethered to Storage Attach legs to understructure •"L" leg uses 24" or 30" depending on worksurface depth. Attach tethers to beam •Sub-assemble tether "position B" and shared plate center position. •Lower shared tether 1 detent (1/2") to account for plate •Attach 2nd and 3rd tethers depending on 3"...

  • Page 22: Benching - Mounted Parallel To Beam

    3/8-16 X 3/4" BOLT Benching - Mounted Parallel to Beam Tethered to Storage (continued) Set understructures onto tethers and install screws thru positions "A". Attach understructure positions "B" and "C" to desk tethers "S" (STORAGE). Attach shared plate under end supports and attach thru 30"...

  • Page 23: Tethered To Storage

    DESK DESK TETHER SHARED POST "L" LOW STORAGE BEAM UNDERSTRUCTURE BRACKET SUPPORT PLATE (w/ CONNECTION ZONE) Component Key Most Common Desking Applications NOTE: All applications on this sheet assume a 24" deep desk. If a 30" deep desk is used, replace 24 with 30. Desk Understructure Freestanding Tethered to Beam...
  • Page 24 DESK DESK TETHER SHARED POST "L" LOW STORAGE BEAM UNDERSTRUCTURE BRACKET SUPPORT PLATE (w/ CONNECTION ZONE) Component Key Most Common Desking Applications NOTE: All applications on this sheet assume a 24" deep desk. If a 30" deep desk is used, replace 24 with 30. Desk Understructure Tethered to Beam Parallel Tethered Perpendicular...
