Installing Worksurface
to Understructure
1.

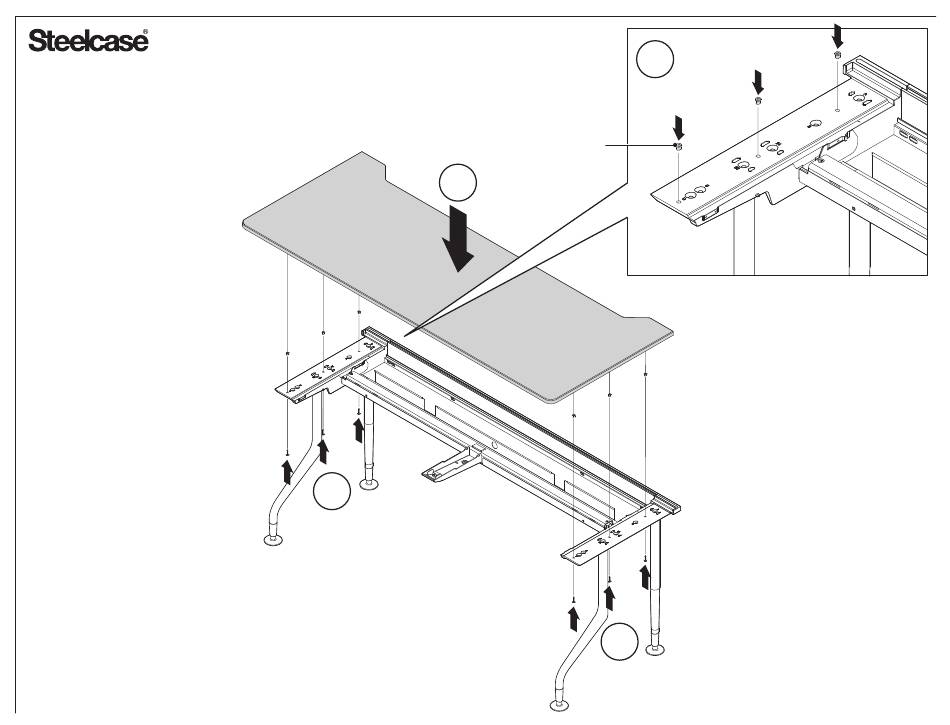

Place the six (6) spacers into
the holes on the understructure as
shown.
2.
Place the worksurface onto the
understructure and align with the
pilot holes that are on the bottom of
the worksurface.
3.
Install six (6) #10-10 x 1" truss
head wood screws as shown.
2
3
1
SPACER
3
Page 11 of 21
939505503 Rev A
