Locating Tether Brackets
to the Beam
(Perpendicular Application)

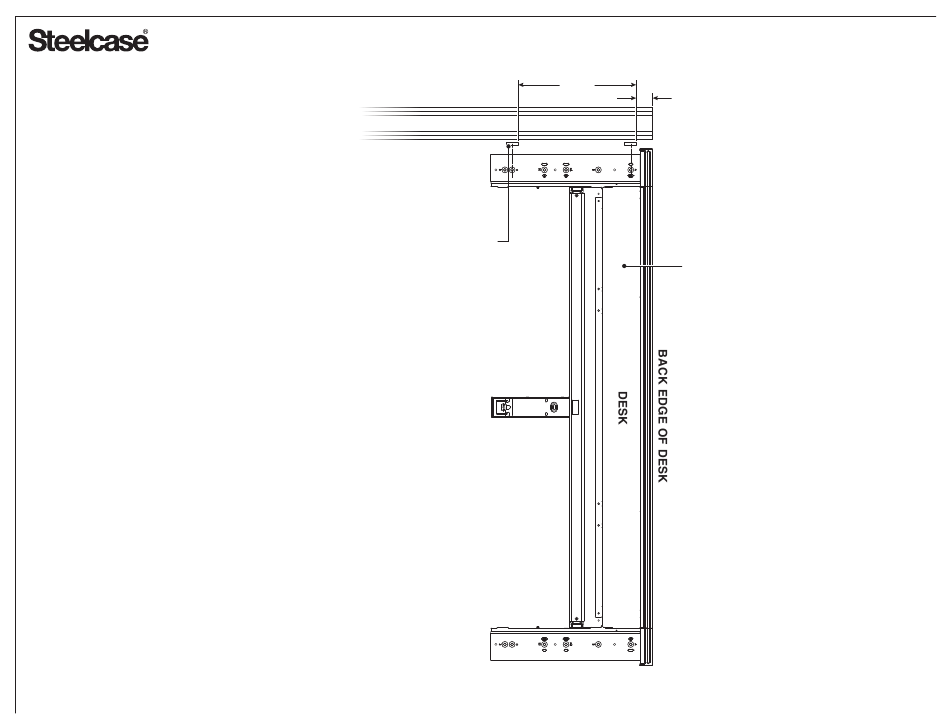

1.
Locate the desired position along the beam
for the back edge of the desk.
2.
First tether should be 2" from the position to
the edge of the tether. Attach tether to beam.
3.
Next tether should be 16-1/2" edge-to-edge
from the first tether. Attach the 2nd tether.
16-1/2"
BEAM
TETHER
BRACKET
2"
"CUTOUT" VERSION SHOWN
939505503 Rev A
Page 7 of 21
