Steelcase c:scape Replacement Manual

Mid storage outer side, top and back replacement

Hide thumbs Also See for c:scape:

If you have a problem, question, or request, call

your local dealer, or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

for immediate action by people who want to help you.

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

and the U.S. Virgin Islands, call: 1.616.247.2500)

Or visit our website: www.steelcase.com

2009 Steelcase Inc.

Grand Rapids, MI 49501

U.S.A.

Printed in U.S.A.

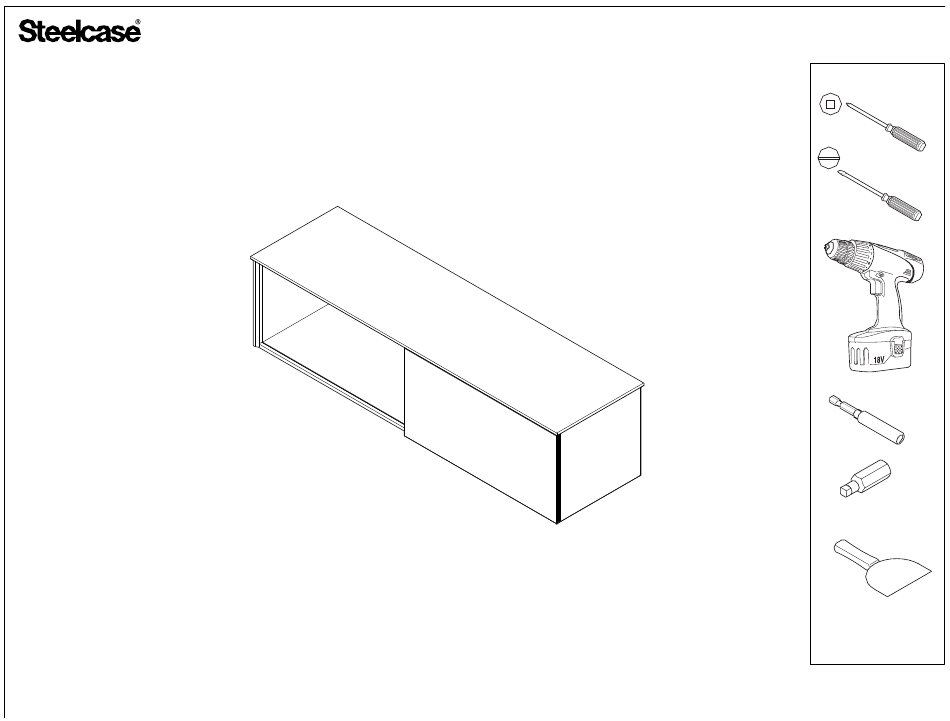

c:scape

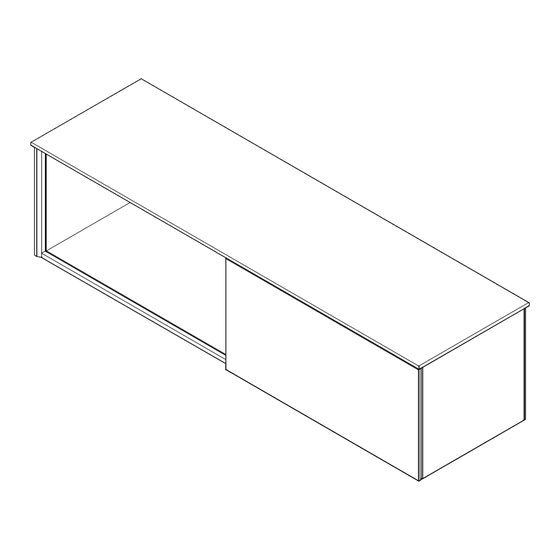

Mid Storage Outer Side, Top and Back Replacement

™

#2 SQUARE

OR QUADREX

#2 SQUARE

OR QUADREX

DRIVE BIT

PUTTY KNIFE

Page 1 of 5

939500421 Rev A

Table of Contents

Need help?

Do you have a question about the c:scape and is the answer not in the manual?

Page 1 #2 SQUARE OR QUADREX DRIVE BIT If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. PUTTY KNIFE (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
Page 2 #8-18 X 3/8" SCREW Removing Outer Side Remove three (3) #8-18 x 3/8" screws. Gently pull the bottom flange of the outer sides out past the inner side flange (Fig.1) and then pull toward the bottom of the unit to disengage the inner side hooks (Fig.
Page 3 #8-18 X 3/8" SCREW Removing the Top Remove both outer sides by performing steps 1 and 2 on page 2. Remove two (2) #8-18 x 3/8" screws from each side of the underside of the top. Top slides off from side-to-side. NOTE: Top will only slide one direction, either left to right or right to left.
Page 4 Removing the Back BACK A: For All Units Except Mid Storage Tall Shared Slider Units #8-18 X 3/8" SCREW Remove both outer sides by performing steps 1 and 2 on page 2. Remove the top by performing steps 2 and 3 on page 3.
Page 5 Side View BACK FLANGE PUTTY KNIFE Removing the Back BACK B: For Mid Storage Tall Shared Slider Units Remove both outer sides by performing steps 1 and 2 on page 2. Remove the top by performing steps 2 and 3 on page 3. NOTE: Just remove the (1/2) back that needs to be replaced.
