glowing LED in the image represents the negative shooting or shutter release
time lag.
Defocus time: time period between triggering the defocus and start of LED-Panel and
iQ-Trigger
Sequence: time period between iterations
Iterations: defining the amount of release iterations
Release time: determines how long the camera release button will be pressed by iQ-Trigger,
value ranges from 0.1s to 25s

5.5.3 Image view

The image view panel (Figure 15, ③) shows the image that is currently selected in the file list.
With the +��-button you can zoom in. The -��-button resets the zoom level to fit the view panel.
After a successful analysis you can toggle the highlighting of the detected LEDs in the image
with the "eye"-button.

5.5.4 Meta data

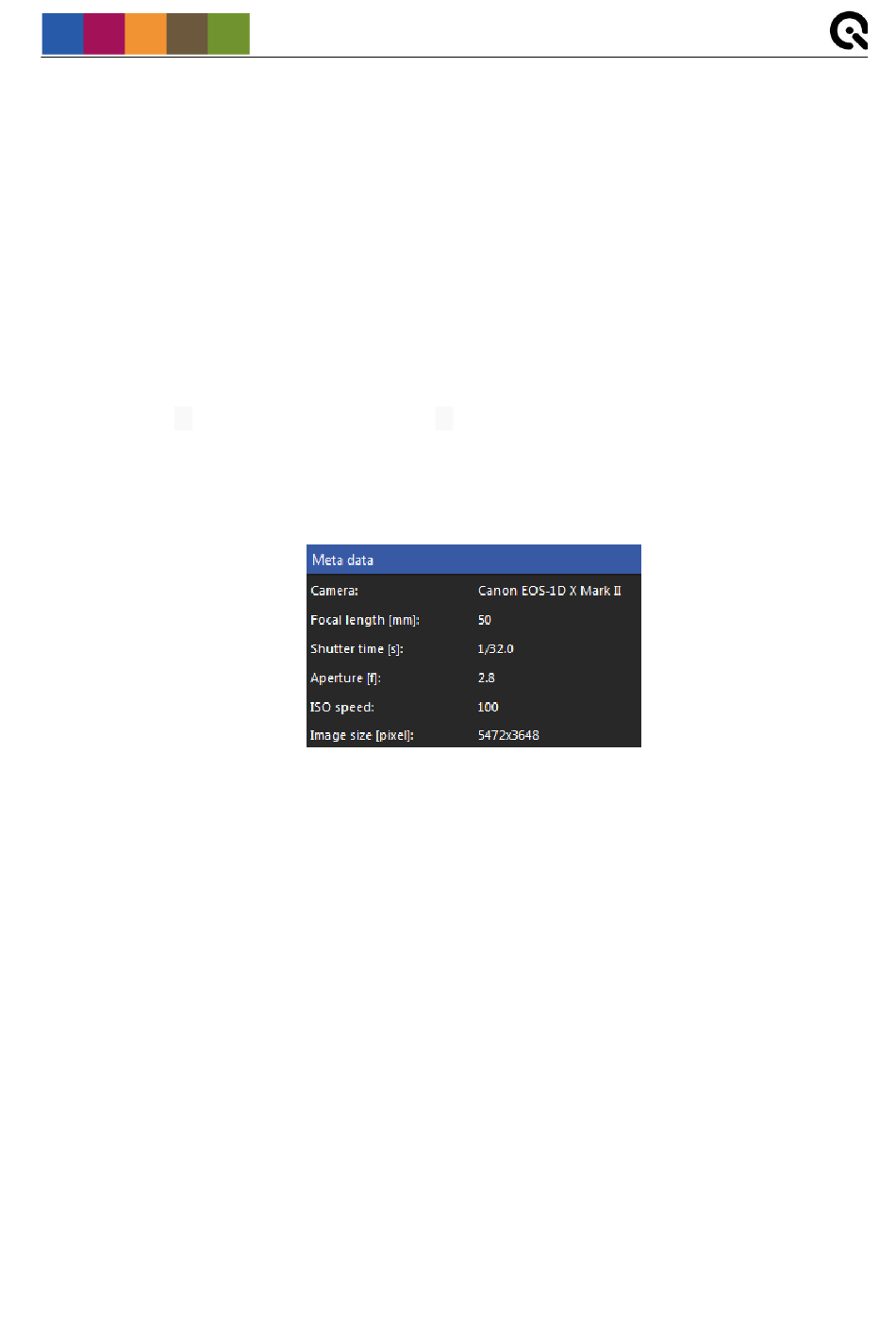

The meta data panel (Figure 21) gives a quick overview of some important camera and lens
settings such as ISO speed or focal length. The meta data of each image will also be written
into the results file.
Operating instructions software
Figure 21
