Operating instructions software

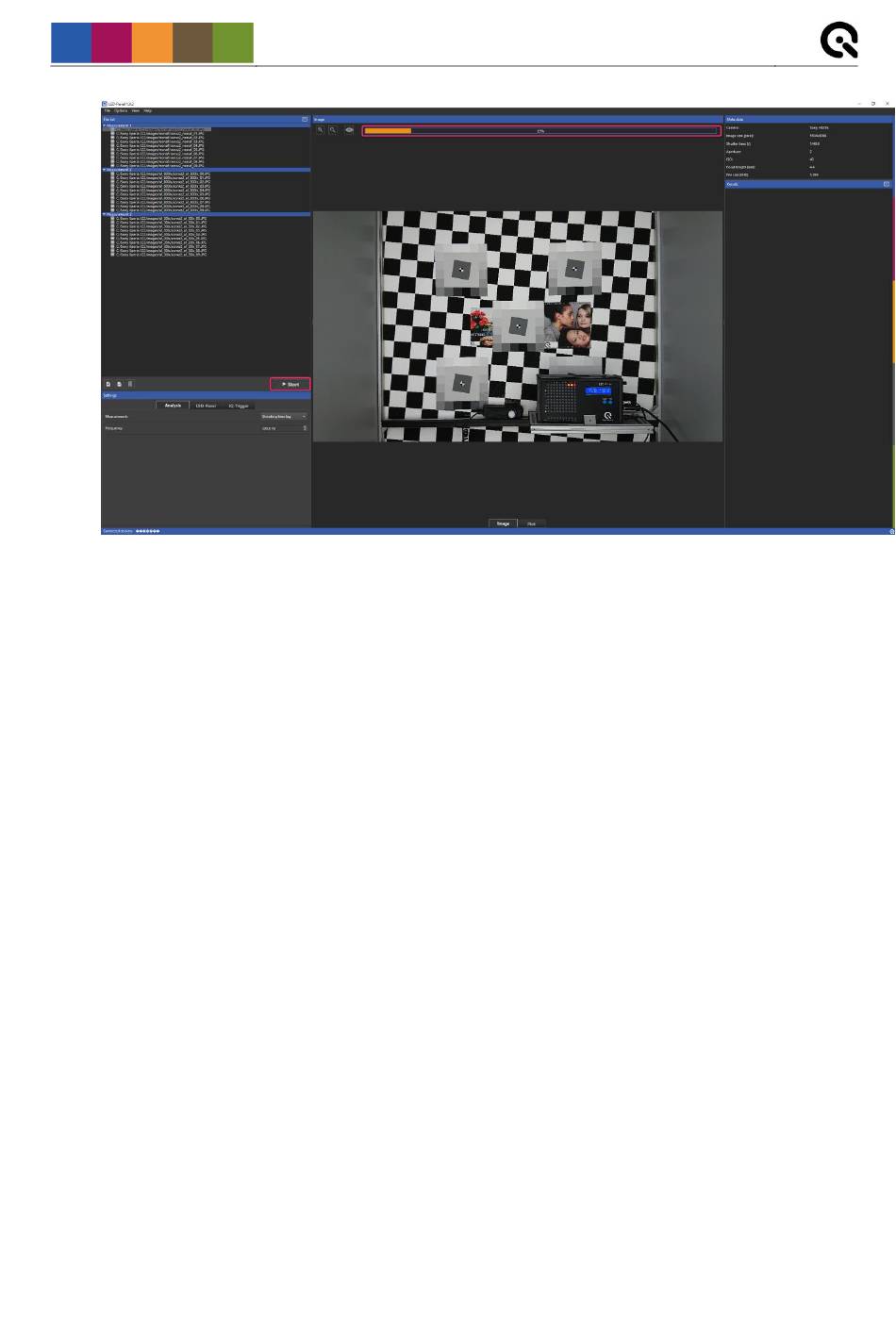

Figure 25
After the images are loaded into the file list make sure that the settings in the analysis tab match
the settings of the LED-Panel in the images. To start the analysis, please click the Start button
under the control panel. A progress bar above the image view will display the analysis progress.
It will disappear immediately when the analysis was finished. Now you can see the detected
LEDs in the image view (Figure 15, ③). On the right side the results will appear and they will be
written into result files in the selected folder.
