Measurement methods
For software based rolling shutter analysis we recommend two LED-Panels in "Exposure Time"
mode, one in the top left corner and one in the bottom right corner. For detailed information on
how to set up two LED-Panels with you device under test, please see the following two
infographics.

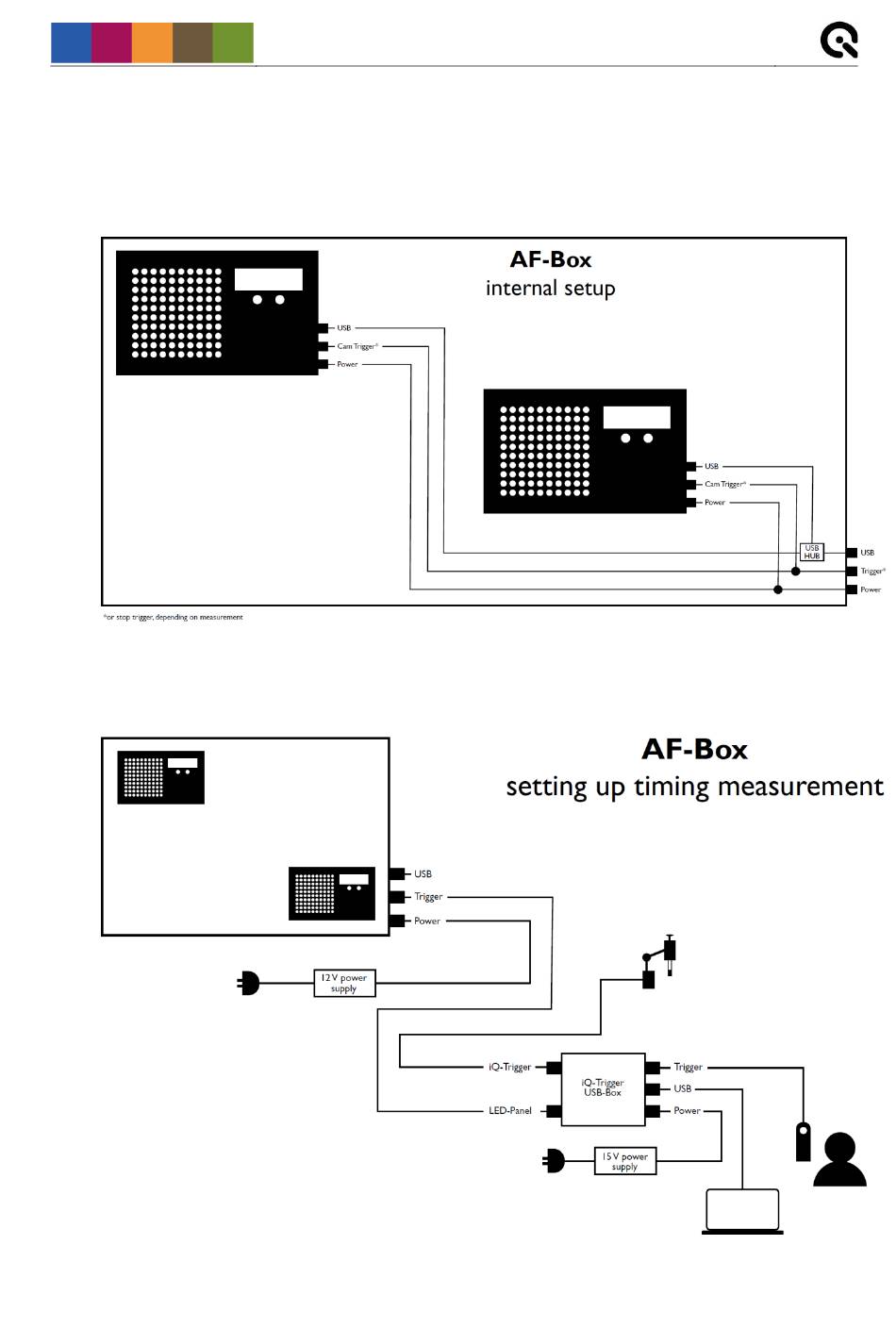

Figure 12: internal wiring
Figure 13: setting up for timing measurement
