Analysis

The "Analysis" tab contains the general settings. "LED-Panel" and "iQ-Trigger" tabs are used to
control connected devices.

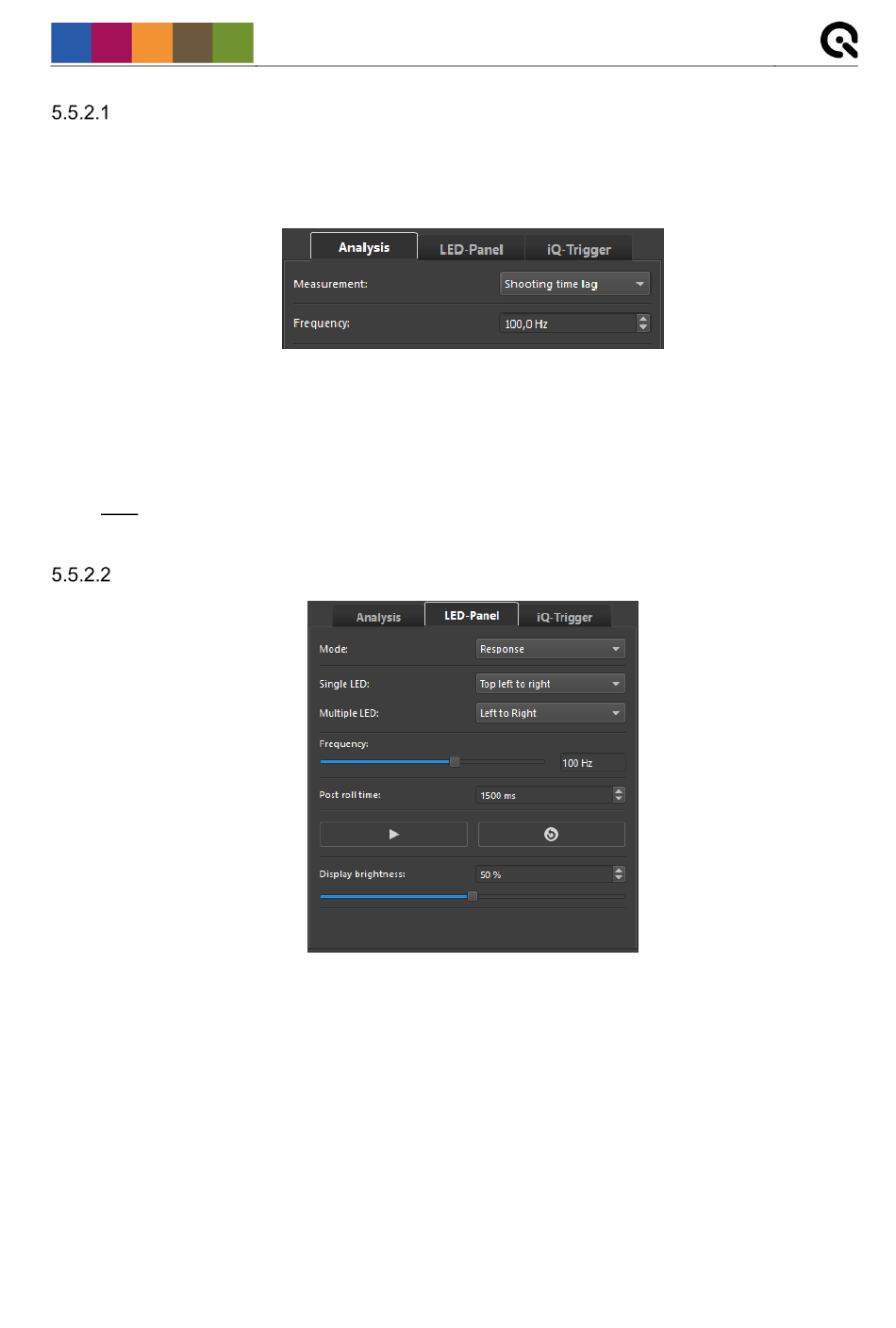

In the "Analysis tab" (Figure 17) you can choose the measurement method and the frequency.
The set frequency is used to calculate the time shown by the LED-Panel in your images. For
further details on how to measure different camera timings please refer to chapter 5 and ISO
15781.
Note: Ensure that the frequency setting matches the device setting that was used when
capturing your images.

LED-Panel

In this tab (Figure 18) you can control multiple connected LED-Panels.
At first choose your desired operating mode. Define the movement direction of the LEDs:
•
Single LED: the LEDs light up in succession (for modes Response, Exposure time and
Framerate
•
Multiple LED: all LEDs in a row or a column light up simultaneously (for mode Rolling
shutter)
By moving the slider you can set the device frequency. With the two buttons you can start, stop
and reset and the LED-Panel. Reset sets the LED(s) to starting position.
Operating instructions software
Figure 17
Figure 18
