HDMI EXTENDER OVER CAT.5/5E/6

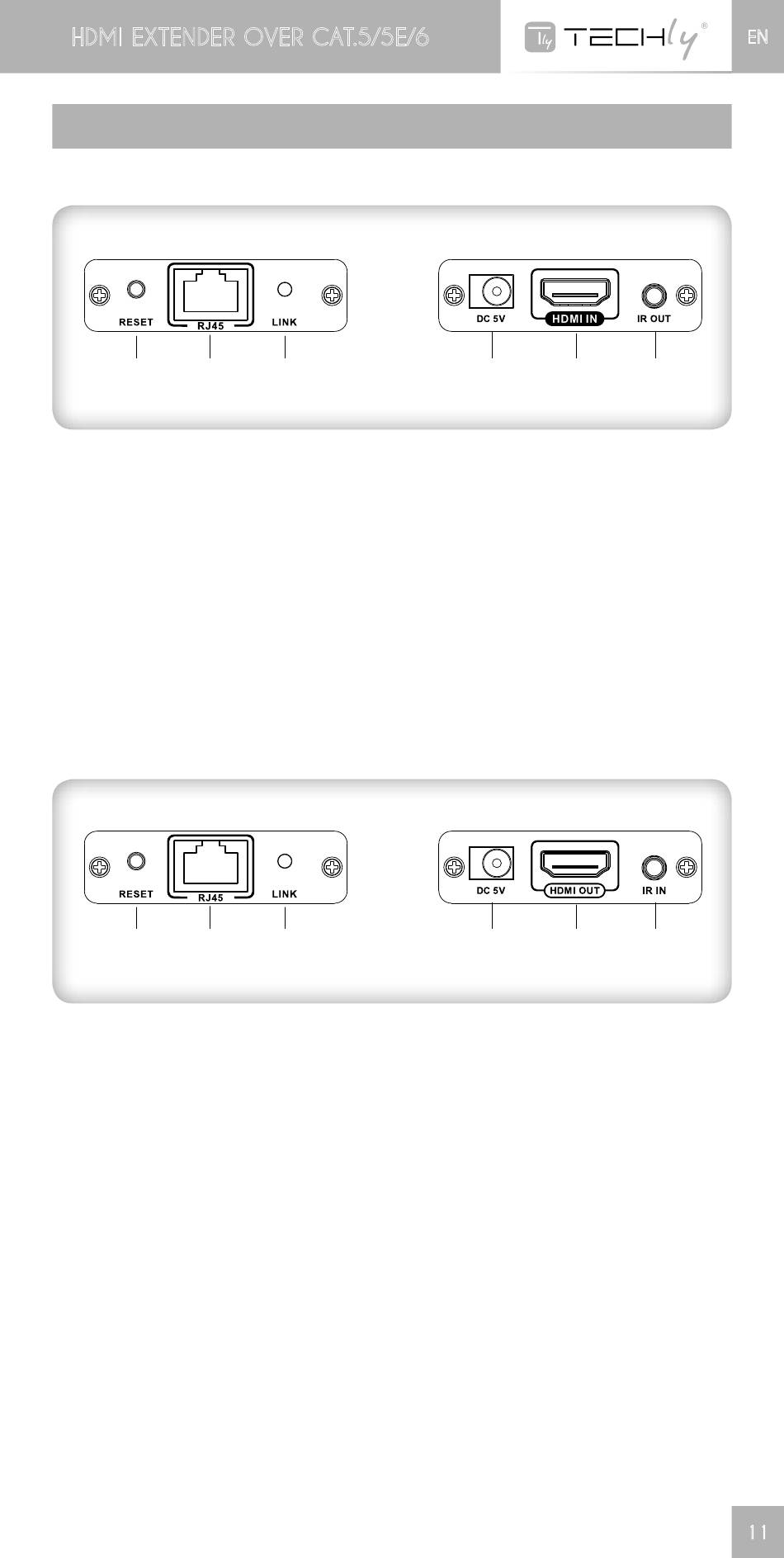

PanEL dEscrIPtIon

1. transmitter unit (tx)
➊ ➋
Reset button
➊
RJ45 signal output
➋
➌ LINK indicator
Power input
➍
HDMI signal input
➎
IR signal output
➏
2. receiver unit (rx)
➊ ➋
Reset button
➊
R145 signal input
➋
LINK indicator
➌
Power input
➍
➎ HDMI signal output
IR signal input
➏
➌
Restart the unit
Connect with network cable
LED turn on all the time with HDMI
signal transmission, flashes with no signal
transmission
Connect with DC5V1A power supply
Connect with HDMI source device
Connect with IR blaster extension cable
➌
Restart the unit
Connect with network cable
LED turns on all the time with HDMI
signal transmission, flashes with no signal
transmission
Connect with DC5V1A power adapter
Connect with the display device
Connect with IR receiver extension cable
➍ ➎
➍ ➎
EN EN
➏
➏
11
