InstaLLatIon and connEctIon

How to make a cat5/5e/6 network cable?
Follow the standard of EIa-568:
1-Orange/white
4-Blue
7-Brown/white

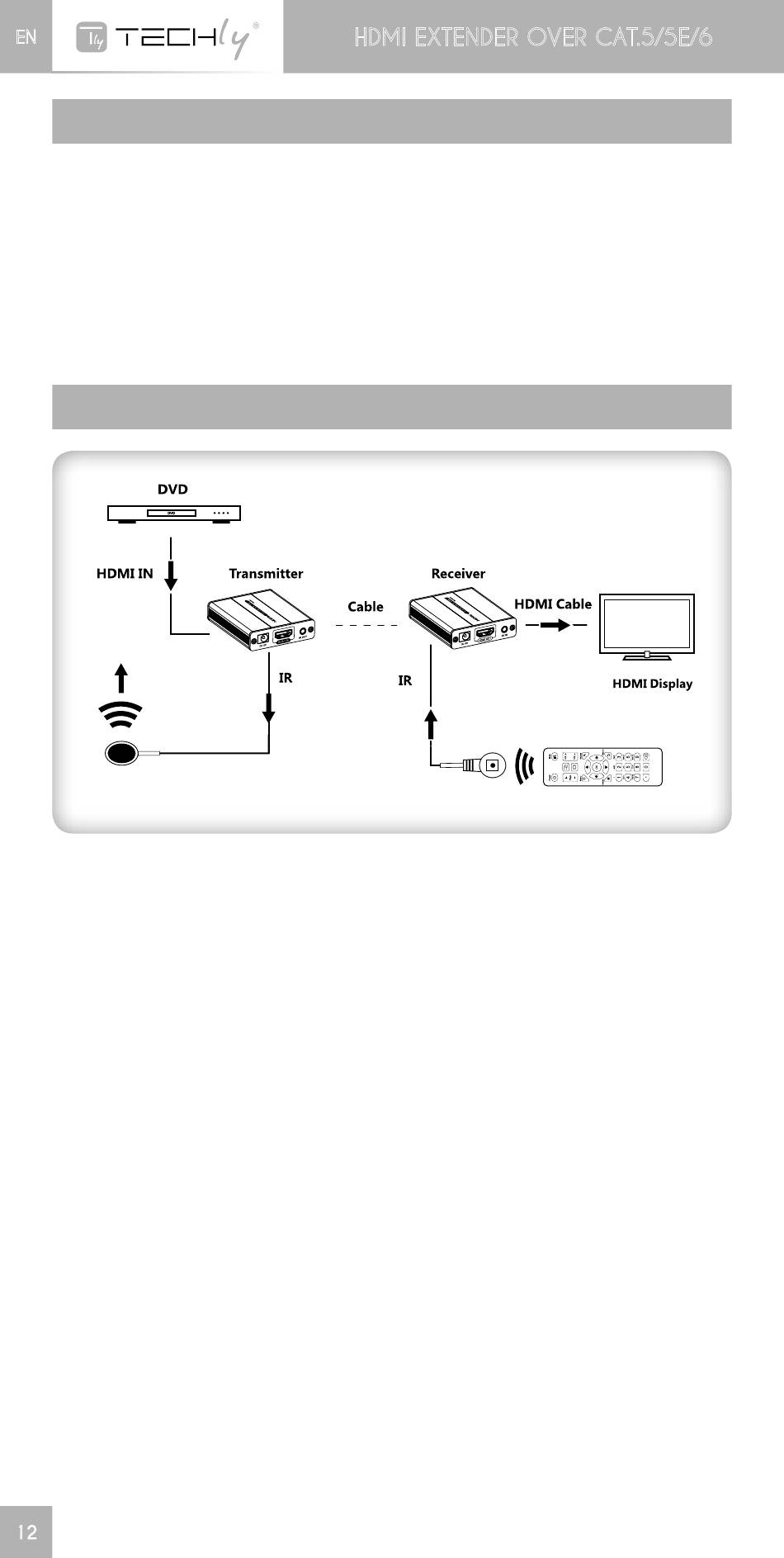

connEctIon
connection instruction:
1) Connect source device to transmitter unit (TX) and display device
to receiver unit (RX) via HDMI cables.
2) Connect transmitter unit (TX) and receiver unit (RX) via network
cables (CAT5/5e/6)
3) Plug the power supplies to transmitter and receiver units, each
unit will power up then initialize itself, this HDMI extender works.
12
HDMI EXTENDER OVER CAT.5/5E/6
2-Orange
5-Blue/white
8-Brown
3-Green/white
6-Green
