Installing the Air Filter

Required Tools and Equipment

• Air filter for the line card

• ESD-preventive Wrist Strap

Note

Attach an ESD-preventive wrist strap to your wrist and connect its end to the grounding lug that is connected

to the chassis.

To install the Air Filter to the RPD, do the following steps:

1. Slide the Air Filter top and bottom into the slots on the RPD front panel bezels behind the ejectors.

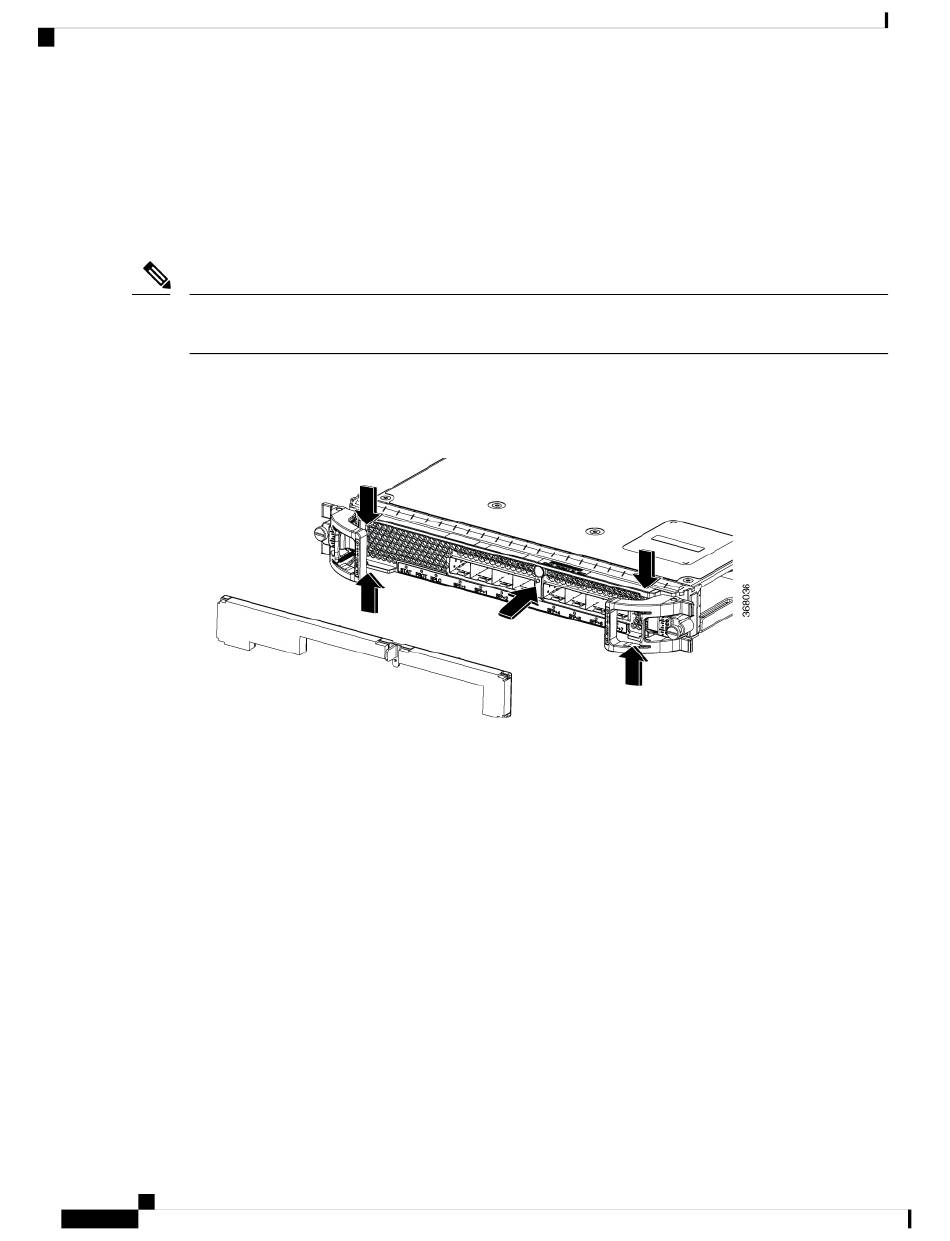

Figure 10: Installing the Air Filter for the RPD

2. Locate the Form Hole beside the Pull Tab on the Air Filter. Gently press the Form Hole onto the faceplate

protrusion feature.

3. Manipulate and tuck the Air Filter and frame around the SFP modules on the RPD faceplate.
