Installing the Cisco Remote PHY Shelf 7200
4. Repeat steps 1-3 for the right side RF management bracket.

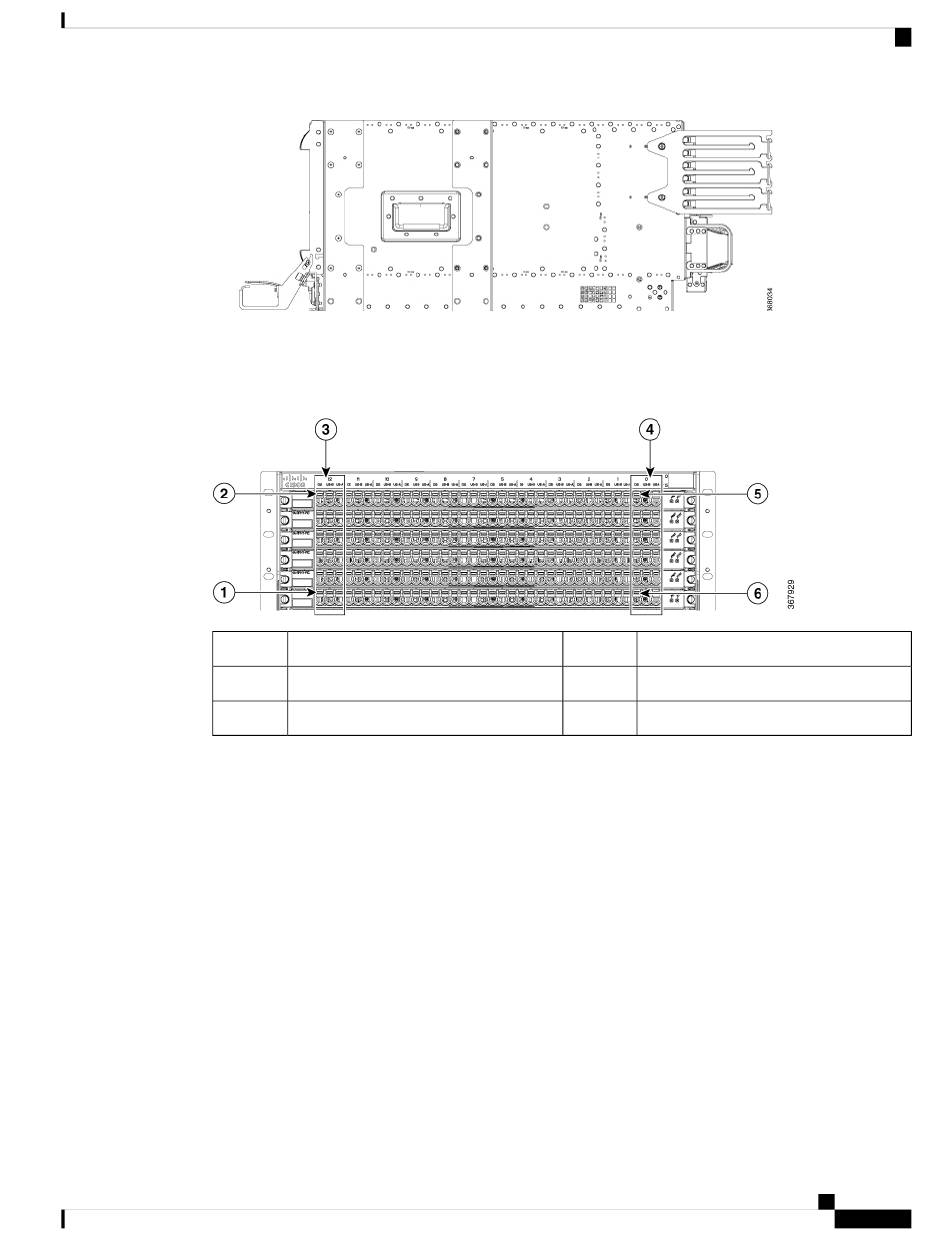

The Cisco Remote PHY Shelf 7200 has 216 ports, and the coax cable routing was designed for half the cables
that are routed to either side of the system.
1
3
5
After routing the RF cables through the cable management, latches can be closed for retention of the cables.
See the following image.
Slot12/DS5
Slot 12
Slot0/DS0
Attaching the Cable-Management Bracket
2 Slot12/DS0
4 Slot 0
6 Slot0/DS5
