Installing the Cisco Remote PHY Shelf 7200

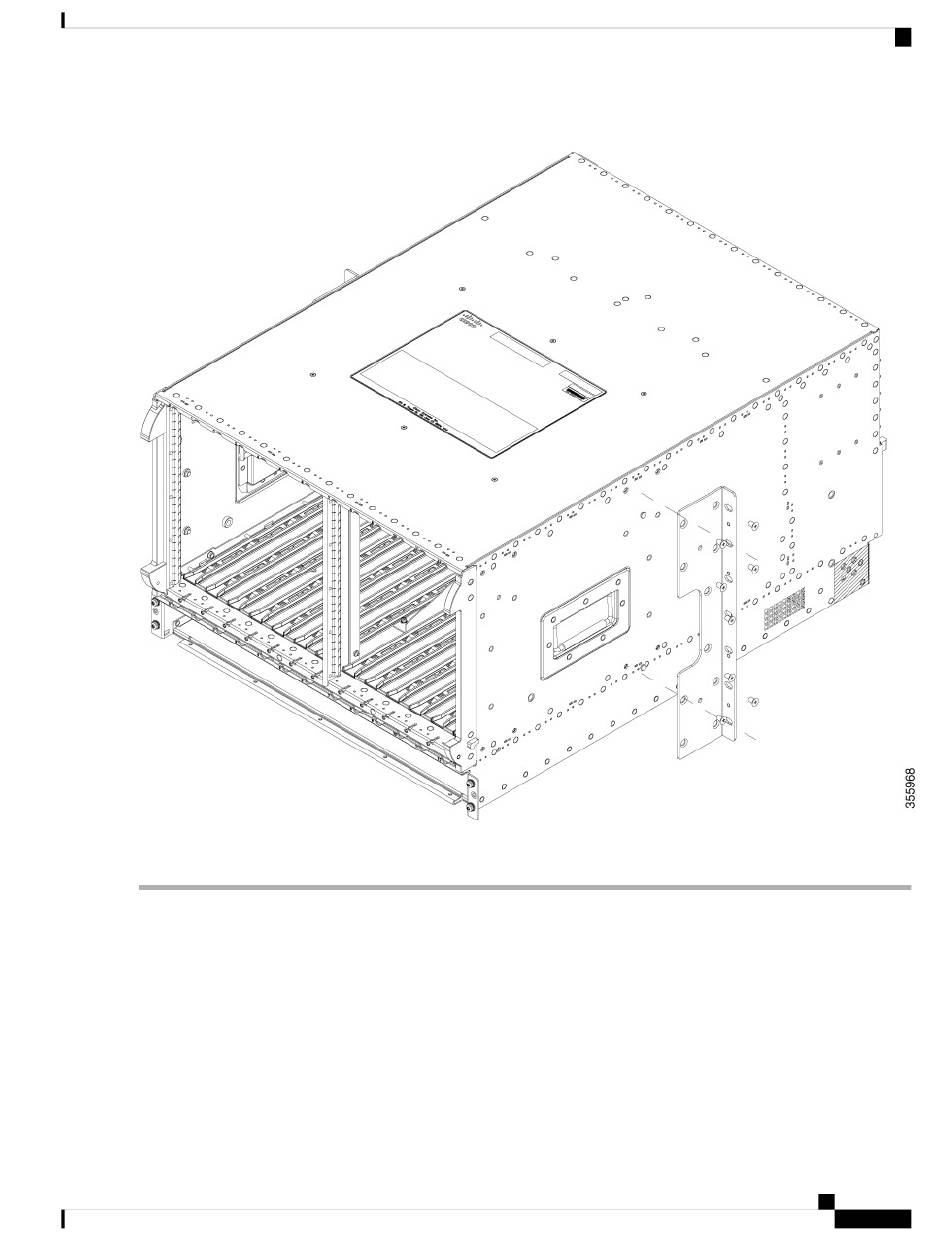

Figure 4: Installing rack-mount brackets mid mount
Step 4
Repeat the steps 1, 2, and 3 on the other side of the chassis.
Installing the Cisco Remote PHY Shelf 7200 in a Rack
You can install the chassis in either a four-post rack unit or a two-post rack unit.
Before you begin
1. Verify rack dimensions.
2. Install chassis installation brackets.
3. Attach the chassis rack-mount brackets.
Installing the Cisco Remote PHY Shelf 7200 in a Rack
Installing the Cisco Remote PHY Shelf 7200
5
