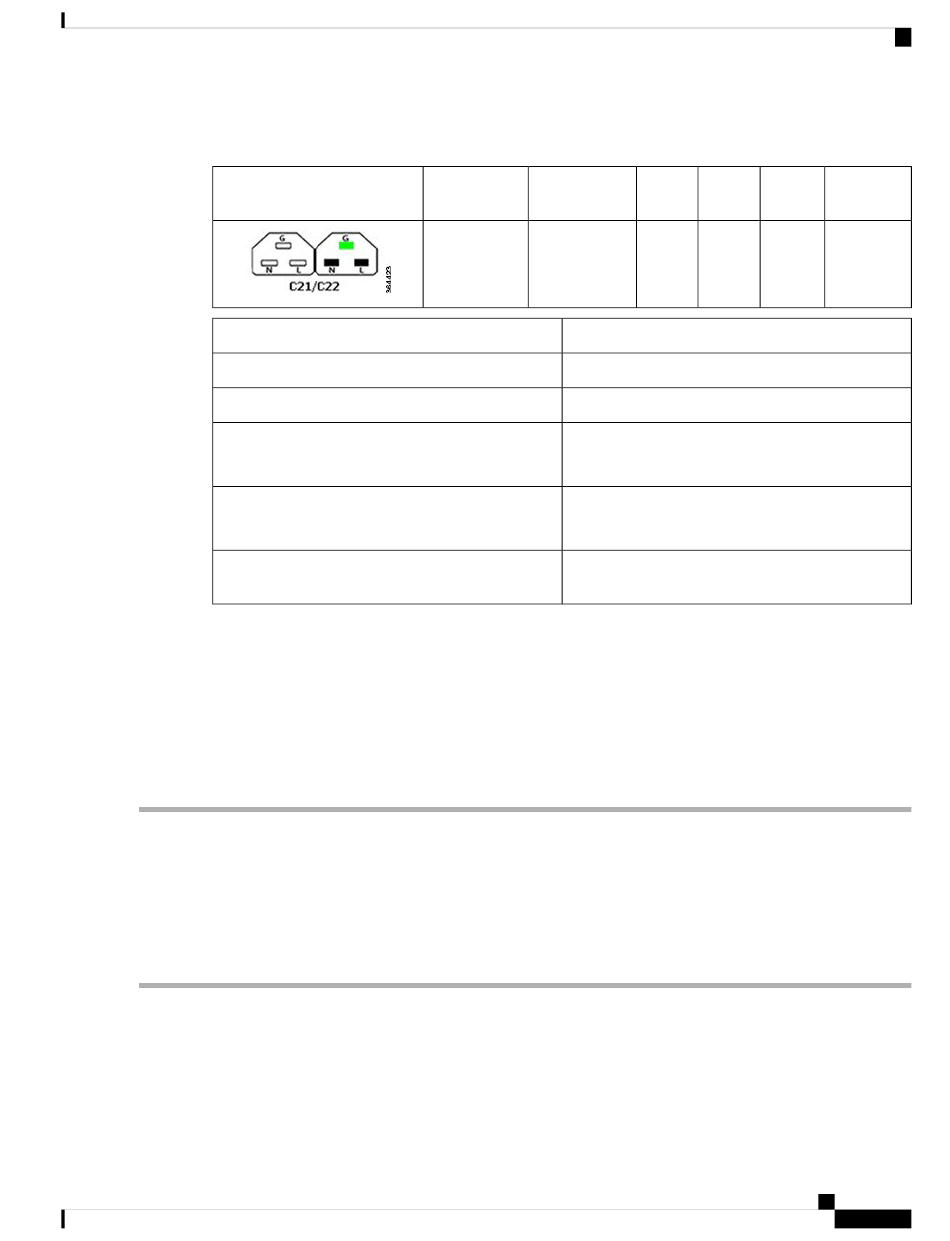

Installing the Cisco Remote PHY Shelf 7200
chamfers in the upper corners, which are used to distinguish them as rated for 155C instead of the typical 70C
used on the C19/C20.
Configuration Female/Male
Description
AC Power Modules per system
Total AC input power per AC Power Module
Rated input voltage per AC Power Module
Rated input line frequency
Source AC service requirement
Before you begin
Required Tools and Equipment
• AC power cord
• #2 Phillips torque screwdriver
Step 1
Ensure that the power switch on the front lower right of the chassis power shelf is in off (down) position.
Step 2
Connect the AC power cord to the receptacle on the rear of the AC power shelf.
Step 3
Tighten the Phillips-head screw on the cable retaining bracket using a #2 Phillips torque screwdriver with a torque of
8-10 in-lb (0.90-1.13Nm).
Step 4
Connect the other end of the AC power cord to the AC source receptacle.
Step 5
Repeat
Step 2, on page 27
Attaching a Chassis Ground Connection, on page
to
Step 4, on page 27
Connecting Power to the AC-Powered Cisco Remote PHY Shelf 7200
Rated Current
Rated Current
International
North America
250 V
125/250 V
16 A
16 A
Value
Up to four
3400 VAC facility input
200-240 VAC nominal (range: 180 to 264 VAC)
220-240 VAC (UK)
50/60 Hz nominal (range: 47 to 63 Hz)
50/60 Hz (UK)
20 A North America; 16 A international; 13 A UK
(IEC60320 C22 connector on the chassis input side)
14.
for all power connections.
Installing the Cisco Remote PHY Shelf 7200
Wires
Poles
Inlet
3
2
C22
Connector
C21
27
