Cisco AS5350 Installation Manual

Cisco systems universal gateway chassis installation guide.
Hide thumbs

Advertisement

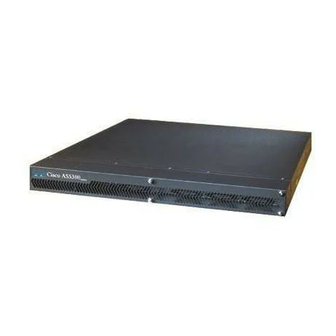

Cisco AS5350 Universal Gateway Chassis
Installation Guide
Corporate Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: 408 526-4000
800 553-NETS (6387)
Fax: 408 526-4100
Customer Order Number: DOC-7810754=
Text Part Number: 78-10754-03 0A

Advertisement

Chapters

Troubleshooting

   Related Manuals for Cisco AS5350

   Summary of Contents for Cisco AS5350

  • Page 1

    Cisco AS5350 Universal Gateway Chassis Installation Guide Corporate Headquarters Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 http://www.cisco.com Tel: 408 526-4000 800 553-NETS (6387) Fax: 408 526-4100 Customer Order Number: DOC-7810754= Text Part Number: 78-10754-03 0A...

  • Page 2

    CCIP, CCSP, the Cisco Arrow logo, the Cisco Powered Network mark, Cisco Unity, Follow Me Browsing, FormShare, and StackWise are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn, and iQuick Study are service marks of Cisco Systems, Inc.; and Aironet, ASIST, BPX, Catalyst, CCDA, CCDP, CCIE, CCNA...

  • Page 3: Table Of Contents

    C H A P T E R Chassis Components Dial Feature Cards (DFCs) Power Supply Chassis Specifications Preparing to Install the Cisco AS5350 Chassis C H A P T E R Safety Recommendations Maintaining Safety with Electricity Preventing Electrostatic Discharge Damage...

  • Page 4: Connecting A Modem To The Auxiliary Port

    Safety Recommendations Chassis Cover Removal Replacing the Boot ROM Required Tools and Equipment Boot ROM Replacement Replacing SDRAM DIMMs Required Tools and Equipment SDRAM DIMM Replacement Cisco AS5350 Universal Gateway Chassis Installation Guide 3-11 3-11 3-12 3-13 3-14 3-15 3-19...

  • Page 5: Replacing The Chassis Cover

    Auxiliary Port Cables and Pinouts Ethernet Port Pinouts BITS Port Pinouts Alarm Port Pinouts Bantam Jack Port Pinouts I N D E X 78-10754-03 0A A-10 A-10 A-12 A-12 A-12 B-10 B-12 Cisco AS5350 Universal Gateway Chassis Installation Guide Contents...

  • Page 6

    Contents Cisco AS5350 Universal Gateway Chassis Installation Guide 78-10754-03 0A...

  • Page 7: Document Organization

    Describes the tasks you must perform before you begin to Cisco AS5350 Chassis install the chassis. Installing the Cisco AS5350 Describes the tasks you must perform to install the Cisco AS5350 chassis. Troubleshooting Describes how to troubleshoot the chassis by referring to the chassis LEDs.

  • Page 8: Document Conventions

    This symbol means the following information will help you solve a problem. The tips information might not be troubleshooting or even an action, but could be useful information, similar to a Timesaver. Cisco AS5350 Universal Gateway Chassis Installation Guide viii Description Commands and keywords.

  • Page 9: Warning Definition

    Huomautus SÄILYTÄ NÄMÄ OHJEET Huomautus Tämä asiakirja on tarkoitettu käytettäväksi yhdessä tuotteen mukana tulleen asennusoppaan kanssa. Katso lisätietoja asennusoppaasta, kokoonpano-oppaasta ja muista mukana toimitetuista asiakirjoista. Cisco AS5350 Universal Gateway Chassis Installation Guide 78-10754-03 0A...

  • Page 10

    Nota La presente documentazione va usata congiuntamente alla guida di installazione specifica spedita con il prodotto. Per maggiori informazioni, consultare la Guida all'installazione, la Guida alla configurazione o altra documentazione acclusa. Cisco AS5350 Universal Gateway Chassis Installation Guide 78-10754-03 0A...

  • Page 11

    OBS! SPARA DESSA ANVISNINGAR OBS! Denna dokumentation ska användas i samband med den specifika produktinstallationshandbok som medföljde produkten. Se installationshandboken, konfigurationshandboken eller annan bifogad ytterligare dokumentation för närmare detaljer. Cisco AS5350 Universal Gateway Chassis Installation Guide 78-10754-03 0A...

  • Page 12: Related Documentation

    Related Documentation Related Documentation This guide describes how to install and maintain the Cisco AS5350 universal gateway chassis. You will also need the following publications to configure the universal gateway: • Refer to the Cisco AS5350 Universal Gateway Regulatory Compliance and Safety Information document to see translations of the warnings that appear in this publication.

  • Page 13: New Hardware Features

    • For information about isolating problems with the network connections to your Cisco AS5350, refer to the publication Internetwork Troubleshooting Guide available on the Cisco Documentation CD-ROM. • Refer to the appropriate Cisco IOS software configuration guides, command reference publications, Cisco IOS Dial Technologies Configuration Guide, Release 12.2T, and the Cisco IOS Dial...

  • Page 14: Ordering Documentation

    Nonregistered Cisco.com users can order documentation through a local account representative by • calling Cisco Systems Corporate Headquarters (California, U.S.A.) at 408 526-7208 or, elsewhere in North America, by calling 800 553-NETS (6387). Documentation Feedback You can submit comments electronically on Cisco.com. On the Cisco Documentation home page, click Feedback at the top of the page.

  • Page 15: Technical Assistance Center

    If you have Internet access, we recommend that you open P3 and P4 cases through the Cisco TAC website so that you can describe the situation in your own words and attach any necessary files. 78-10754-03 0A Obtaining Technical Assistance Cisco AS5350 Universal Gateway Chassis Installation Guide...

  • Page 16: Obtaining Additional Publications And Information

    Information about Cisco products, technologies, and network solutions is available from various online and printed sources. The Cisco Product Catalog describes the networking products offered by Cisco Systems as well as • ordering and customer support services. Access the Cisco Product Catalog at this URL: http://www.cisco.com/en/US/products/products_catalog_links_launch.html...

  • Page 17: Overview

    Overview This chapter provides an overview of the Cisco AS5350 universal gateway, a versatile data and voice communications platform that provides high performance, high density, and hot-swap capability in only one rack unit. The Cisco AS5350 is intended for small- to medium-size companies who require dense and scalable solutions to create new multiservice access networks, replace existing gateway hardware, or expand and enhance their current access offering.

  • Page 18: Chapter 1 Overview

    The chassis includes one backplane slot which accepts a DFC carrier card. The DFC carrier card accepts two DFCs, which allow OIR. The motherboard accepts one DFC in its own dedicated slot. Cisco AS5350 Universal Gateway Chassis Installation Guide Chapter 1...

  • Page 19: Power Supply

    Cooling is provided by two self-contained fans. Note The Cisco AS5350 redundant power supply is supported in Cisco IOS Release 12.2(2)XB5 or later. Each power module is capable of supplying a maximum DC load of 150 watts, and is composed of four independent output voltages: 3.3V, 5V, 12V, and -12V.

  • Page 20

    Description Console and auxiliary ports Regulatory compliance 1. dB = decibels. 2. VAC = volts alternating current. Cisco AS5350 Universal Gateway Chassis Installation Guide Specification Asynchronous serial (RJ-45) See the Regulatory Compliance and Safety Information document that shipped with your universal gateway.

  • Page 21: Chapter 2 Preparing To Install The Cisco As5350 Chassis

    Preparing to Install the Cisco AS5350 Chassis This chapter describes the tasks you must perform before you begin to install the Cisco AS5350 and includes the following sections: Safety Recommendations, page 2-1 • • Required Tools and Equipment, page 2-3 Preparing to Connect to a Network, page 2-3 •...

  • Page 22: Preventing Electrostatic Discharge Damage

    Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. Connect the grounding clip to an unpainted surface of the chassis frame to Cisco AS5350 Universal Gateway Chassis Installation Guide Chapter 2...

  • Page 23: Required Tools And Equipment

    Chapter 2 Preparing to Install the Cisco AS5350 Chassis safely ground unwanted ESD voltages. To guard against ESD damage and shocks, the wrist strap and cord must operate properly. If no wrist strap is available, ground yourself by touching the metal part of the chassis.

  • Page 24: Ethernet Connections

    Two Fast Ethernet (FE) ports, RJ-45 ports, are located on the rear panel of the universal gateway: FE0 and FE1 (selectable). To configure the Ethernet ports, refer to the Cisco AS5350 and Cisco AS5400 Universal Gateway Software Configuration Guide. Both ports use unshielded twisted-pair (UTP) cable and require Category 5 cable.

  • Page 25: 2t Serial Ports

    Cisco AS5350.” See Appendix C, “Cabling Specifications,” for cable and port pinouts. 2T Serial Ports Two high speed 12-in-1 serial ports on the rear panel of the Cisco AS5350 provide backhaul WAN and IP support. The following types of serial interface standards (in DTE/DCE) are supported: •...

  • Page 26: Power Supply Considerations

    Removable DC connector (A label near the power inlets indicates the correct voltage, current draw, • and power dissipation for the unit.) Double-hole grounding lug for reliable grounding to the chassis • Cisco AS5350 Universal Gateway Chassis Installation Guide Chapter 2 Preparing to Install the Cisco AS5350 Chassis 78-10754-03 0A...

  • Page 27: Installing The Cisco As5350

    Installing the Cisco AS5350 This chapter guides you through the installation of the Cisco AS5350 universal gateway and includes the following sections: Setting Up the Chassis, page 3-2 • • Connecting to the Network, page 3-6 Connecting to the Console and Auxiliary Ports, page 3-11 •...

  • Page 28: Setting Up The Chassis

    Remove the wax paper from the bottom of each rubber foot and press the foot into the small depression on the bottom of the chassis. (See Figure 3-1.) Cisco AS5350 Universal Gateway Chassis Installation Guide Chapter 3 Installing the Cisco AS5350...

  • Page 29: Rack-mounting The Chassis

    DC units. To see translations of the warnings that appear in the publication, refer to the Regulatory Compliance and Safety Information document that accompanied this device. 78-10754-03 0A Universal gateway chassis bottom Cisco AS5350 Universal Gateway Chassis Installation Guide Setting Up the Chassis...

  • Page 30

    Standard Bracket Installation—Front Panel Forward Note: The second bracket attaches to the other side of the chassis. The chassis can also be installed with the rear panel forward. Cisco AS5350 Universal Gateway Chassis Installation Guide Bracket for 23-inch rack Chapter 3...

  • Page 31: Attaching The Chassis To A 19-inch Rack

    Tighten the screws to a torque of 8 to 10 in-lb (0.9 to 1.1 N-m). Step 4 Connect the other end of the ground wire to a suitable grounding point at your site. 78-10754-03 0A Cisco AS5350 Universal Gateway Chassis Installation Guide Setting Up the Chassis...

  • Page 32: Connecting To The Network

    Cisco AS5400 Ground Lug Attachment Connecting to the Network This section describes how to connect the Cisco AS5350 to your network. The cables required to connect the universal gateway to a network are not provided. For ordering information, contact customer service.

  • Page 33: Connecting To An Ethernet Network

    Note The Cisco AS5350 arrives with all carrier cards and DFCs already installed, unless you order a card separately as a spare. Refer to the Cisco AS5350 Universal Gateway Card Installation Guide for card installation instructions.

  • Page 34

    2) while the housing is open. To see translations of the warnings that appear in the publication, refer to the Regulatory Compliance and Safety Information document that accompanied this device. You can connect the Cisco AS5350 to a WAN in the following ways: •...

  • Page 35

    Use software commands to choose a specific port and the line termination on that port. For information Note on software commands, see the Cisco AS5350 and Cisco AS5400 Universal Gateway Software Configuration Guide. This document is available on the Cisco.com and the documentation CD-ROM that comes with your universal gateway.

  • Page 36

    Figure 3-10 Connecting a 2-Port or 4-Port DFC to an RJ-45 Jack RJ-45 jack E1 cable Figure 3-11 Connecting an 8-Port DFC to an RJ-45 Jack T1/E1 8 PRI connector RJ-45 jack E1 cable Cisco AS5350 Universal Gateway Chassis Installation Guide 3-10 78-10754-03 0A...

  • Page 37: Connecting To The Console And Auxiliary Ports

    2 stop bits. Step 3 Configure the console port. See the Cisco AS5350 and Cisco AS5400 Universal Gateway Software Configuration Guide. This document is available on the World Wide Web and the documentation CD-ROM that comes with your universal gateway. (See the “Obtaining Documentation” section on page xiii.)

  • Page 38: Connecting A Modem To The Auxiliary Port

    To connect a modem to the auxiliary port, follow this procedure: Step 1 Connect a modem to the auxiliary port on the Cisco AS5350 using an RJ-45 rollover cable with an RJ-45-to-DB-25 adapter. The adapter provided is labeled MODEM. The adapter and the rollover cable are included in the accessory kit that comes with the universal gateway.(See Figure 3-14.)

  • Page 39: Connecting A Signal Generator To The Bits Port

    Use a coaxial cable to connect a Timing Signal Generator (TSG) to the BITS port. The BITS port is used for external clocking. (See Figure 3-15.) Figure 3-15 Connecting to the BITS Port To timing signal generator Coaxial cable BITS port connector Cisco AS5350 Universal Gateway Chassis Installation Guide 3-13 78-10754-03 0A...

  • Page 40: Connecting An Alarm To The Alarm Port

    The alarm connector is a 3-wire connector that plugs into a receptacle in the rear of the chassis. The connector is provided in the accessory kit that ships with the Cisco AS5350. Insert the three pin alarm port connector (included in the accessory kit) into the alarm port terminal Step 1 block.

  • Page 41: Supplying Power

    • Follow this procedure to connect power to the universal gateway: Connect one end of the AC power cord to the power connector on the rear panel of the Cisco AS5350 (See Step 1 Figure 3-17 or Figure 3-18.) Or, if you are using a DC-powered unit, refer to Figure 3-19 or Figure 3-20, and complete Step a through Step e.

  • Page 42

    OFF position, and tape the switch handle of the circuit breaker in the OFF position. To see translations of the warnings that appear in this publication, refer to the Regulatory Compliance and Safety Information document that accompanied this device. Cisco AS5350 Universal Gateway Chassis Installation Guide 3-16 Chapter 3...

  • Page 43

    Ground Source B - RTN Source A - RTN Source B - NEG Caution Do not overtorque the terminal block contact screws. The recommended torque is 4.5 lb-in (0.50 N-m). Cisco AS5350 Universal Gateway Chassis Installation Guide 3-17 78-10754-03 0A...

  • Page 44

    Insert the -48 VDC wires into the DC connector negative connectors (-) and tighten the locking screws. Ensure that no bare wire is exposed. Make sure that the power supply wires are secured to cable strain-relief clamps with cable ties. Cisco AS5350 Universal Gateway Chassis Installation Guide 3-18 To DC source...

  • Page 45: Where To Go Next

    The internal power supply fan should power on. Where to Go Next When you power ON the Cisco AS5350 for the first time, messages will begin to appear on your console screen. Refer to the Cisco AS5350 and Cisco AS5400 Universal Gateway Software Configuration Guide for configuration instructions.

  • Page 46

    Chapter 3 Installing the Cisco AS5350 Where to Go Next Cisco AS5350 Universal Gateway Chassis Installation Guide 3-20 78-10754-03 0A...

  • Page 47: Leds

    Getting Help, page 4-12 LEDs The LEDs indicate the current operating condition of the Cisco AS5350. You can observe the LEDs, note any fault condition that the product is encountering, and then contact your system administrator or a customer service representative (see the “Obtaining Technical Assistance” section on page xiv), if necessary.

  • Page 48: Leds

    Rear Panel LEDs Table 4-1 Chassis LEDs Function Alarm Fast Ethernet Console/Auxiliary System Board Status (Located to right of Console/Auxiliary ports) Cisco AS5350 Universal Gateway Chassis Installation Guide BITS ACTIVITY (ACT) ACTIVITY (ACT) State Alarm Activity (ACT) Flickering Link (LNK) Activity (ACT)

  • Page 49: Monitoring Environment

    Serial Ports BITS Port Monitoring Environment The Cisco AS5350 contains temperature sensors to detect abnormal temperature conditions during system operation. The three levels of sensor detection are as follows: • If the operating temperature of the system exceeds 45 C, the system reaches a warning state. A warning message appears on the console.

  • Page 50: Displaying Environment Status

    Fans:monitor dropped. Temperature:warning. Temperature:sensor recovered. Fans:monitor recovered. Fans:normal. Cisco AS5350 Universal Gateway Chassis Installation Guide Temperature at inlet is measured as 22C/71F. Temperature at outlet is measured as 27C/80F. Temperature is in normal state. Temperature at inlet is measured as 52C/125F.

  • Page 51

    Temperature is in shutdown state. A DFC is powered down. Slot:1, Type:NP60 DFC A DFC is powered down. Slot:2, Type:T1 2 PRI DFC A DFC is powered down. Slot:3, Type:NP60 DFC Cisco AS5350 Universal Gateway Chassis Installation Guide Monitoring Environment...

  • Page 52: Troubleshooting Network Interfaces

    Temperature:shutdown. Troubleshooting Network Interfaces For information about isolating problems with the network connections to your Cisco AS5350, refer to the publication Internetwork Troubleshooting Guide available on the Cisco Documentation CD-ROM. For more information, see the section “Related Documentation” section on page xii.

  • Page 53: Loosen Fan Tray Screws

    Grasp the edge of the fan tray near the two end-screws and carefully pull it towards you. (See Figure 4-5.) The fan tray power connector disconnects from its receptacle. (See Figure 4-6.) 78-10754-03 0A Cisco AS5350 Universal Gateway Chassis Installation Guide Replacing the Fan Tray...

  • Page 54: Fan Tray

    Fan Tray Power Connector Disconnecting From Receptacle Slide the metal tabs located at the other end of the fan tray out of their slots. (See Figure 4-7.) Step 5 Cisco AS5350 Universal Gateway Chassis Installation Guide Chapter 4 Troubleshooting 78-10754-03 0A...

  • Page 55

    Chapter 4 Troubleshooting Replacing the Fan Tray Figure 4-7 Slide Metal Tabs out of Slots Tabs Cisco AS5350 Universal Gateway Chassis Installation Guide 78-10754-03 0A...

  • Page 56: Installing The Fan Tray

    Figure 4-8 Inserting the Metal Tabs into Slots Tabs Cisco AS5350 Universal Gateway Chassis Installation Guide 4-10 78-10754-03 0A...

  • Page 57

    Sliding the Fan Tray Power Connector into Receptacle Carefully slide the fan tray connector into its receptacle until the fan tray touches the front panel. (See Step 3 Figure 4-9.) 78-10754-03 0A Cisco AS5350 Universal Gateway Chassis Installation Guide Replacing the Fan Tray 4-11...

  • Page 58: Getting Help

    Figure 4-10 Tightening Fan Tray Screws Getting Help For information about technical support, onsite service, and exchange and repair services, refer to the “Obtaining Technical Assistance” section on page xiv. Cisco AS5350 Universal Gateway Chassis Installation Guide 4-12 78-10754-03 0A...

  • Page 59: Appendix

    Replacing Memory Components This appendix contains procedures on how to replace memory chips in the Cisco AS5350 field-replaceable units. The appendix contains the following sections: Removing the Chassis Cover, page A-1 • • Replacing the Boot ROM, page A-4 Replacing SDRAM DIMMs, page A-7 •...

  • Page 60: Chassis Cover Removal

    Turn the power switch on the universal gateway off and disconnect site power. Step 2 Remove all interface cables from the rear panel of the universal gateway. Step 3 Place the gateway so that the front panel is facing you. Cisco AS5350 Universal Gateway Chassis Installation Guide Appendix 78-10754-03 0A...

  • Page 61

    Figure A-2, and pull it away from the tabs on the rear of the chassis. Figure A-2 Removing the Chassis Cover Front panel 78-10754-03 0A Chassis cover Chassis bottom Cisco AS5350 Universal Gateway Chassis Installation Guide Removing the Chassis Cover...

  • Page 62: Replacing The Boot Rom

    A1.) Step 5 Remove the carrier card to access the system board. (See the Cisco AS5350 Universal Gateway Card Installation Guide for instructions on removing the carrier card. This document is available on Cisco.com and the documentation CD-ROM that comes with your universal gateway. See the “Obtaining Documentation”...

  • Page 63: System Board Layout

    Socket 0 Socket 1 Socket 2 Flash memory Boot memory 78-10754-03 0A FE0 FE1 2T serial Interface BITS Alarm port port Cisco AS5350 Universal Gateway Chassis Installation Guide Replacing the Boot ROM Backplane connector System board DFC connector Boot ROM...

  • Page 64

    Step 9 Replace the carrier card. (See the AS5350 Universal Gateway Card Installation Guide for instructions on installing the carrier card. This document is available on the World Wide Web and the documentation CD-ROM that comes with your gateway.

  • Page 65: Replacing Sdram Dimms

    Remove the chassis cover. (See the instructions in the “Removing the Chassis Cover” section on Step 4 page A1.) Use Figure A-3 to locate the DIMM you are replacing. Step 5 78-10754-03 0A Replacing SDRAM DIMMs Cisco AS5350 Universal Gateway Chassis Installation Guide...

  • Page 66: Removing And Replacing The Sdram Dimm

    To prevent damage, do not press on the center of the DIMM. Handle the DIMM carefully. Figure A-5 Removing and Replacing the SDRAM DIMM Step 7 Position the new DIMM so that the polarization notch is located at the right end of the DIMM socket. Cisco AS5350 Universal Gateway Chassis Installation Guide Appendix 78-10754-03 0A...

  • Page 67: Replacing Flash Memory Simms

    Figure A-3.) For future expansion, install the second SIMM in the second Flash memory socket. The SIMMs are 32 MB, and the capacity of both SIMMs must match. – For system memory, the total capacity is 64 MB (two, 32 MB SIMMs). 78-10754-03 0A Replacing Flash Memory SIMMs Cisco AS5350 Universal Gateway Chassis Installation Guide...

  • Page 68: Required Tools And Equipment

    To prevent damage, do not press on the center of the SIMMs. Handle each SIMM carefully. Caution Repeat these steps for all the Flash memory SIMMs that you need to replace. Step 7 Cisco AS5350 Universal Gateway Chassis Installation Guide Appendix 78-10754-03 0A...

  • Page 69: Inserting The Flash Memory Simm

    Step 9 the connector might break. When inserting the new SIMM, make sure that the polarization notch is located at the right end of the SIMM socket. 78-10754-03 0A Replacing Flash Memory SIMMs Cisco AS5350 Universal Gateway Chassis Installation Guide...

  • Page 70: Replacing The Chassis Cover

    Step 2 Hold the chassis cover over the chassis bottom, and align each of the cover tabs with the chassis tabs at the top rear of the chassis. Cisco AS5350 Universal Gateway Chassis Installation Guide Chassis cover Chassis bottom Appendix...

  • Page 71

    Reinstall all interface cables. Reconnect the AC power cord to the power supply. Power on the universal gateway. Step 7 The internal power supply fan should power on. 78-10754-03 0A Replacing the Chassis Cover Cisco AS5350 Universal Gateway Chassis Installation Guide...

  • Page 72

    Appendix Replacing the Chassis Cover Cisco AS5350 Universal Gateway Chassis Installation Guide 78-10754-03 0A...

  • Page 73: Appendix

    • Replacing the Chassis Cover, page B-12 Overview The Cisco AS5350 universal gateway can have a single AC or DC power supply or a redundant AC or DC power supply. Note The redundant power supply is supported in Cisco IOS Release 12.2(2)XB5 or later releases.

  • Page 74: Required Tools And Equipment

    Required Tools and Equipment You need the following tools and equipment: Medium-size Phillips screwdriver • Small or medium flat-blade screwdriver • ESD-preventive wrist strap • Tie-wraps (optional) • • Antistatic bag (optional) Cisco AS5350 Universal Gateway Chassis Installation Guide Appendix 78-10754-03 0A...

  • Page 75: Removing The Chassis Cover

    DC Power Supply Connections—Single Power Supply 78-10754-03 0A Power switch To DC source Source A - NEG Ground Source B - RTN Source A - RTN Source B - NEG Cisco AS5350 Universal Gateway Chassis Installation Guide Removing the Chassis Cover DC connector...

  • Page 76

    Remove all interface cables from the rear panel of the universal gateway. Step 2 Place the universal gateway so that the front panel is facing you. Step 3 Cisco AS5350 Universal Gateway Chassis Installation Guide To DC source A - A + B - B + Ground...

  • Page 77

    Figure B-4, and pull it away from the tabs on the rear of the chassis. Figure B-4 Removing the Chassis Cover Front panel Step 6 Continue with the “Removing the Old Power Supply” section on page B-6. 78-10754-03 0A Chassis cover Chassis bottom Cisco AS5350 Universal Gateway Chassis Installation Guide Removing the Chassis Cover...

  • Page 78: Removing The Old Power Supply

    Remove the mounting screw that secures the power supply to the chassis and set it aside. (See Figure B-5 or Figure B-6.) Note Although the following illustrations show only the AC power supply, the procedures are the same for the DC power supply. Cisco AS5350 Universal Gateway Chassis Installation Guide Appendix 78-10754-03 0A...

  • Page 79

    Turn the universal gateway so that the front panel is facing you. Step 3 Lift the air separator out of the chassis. (See Figure B-7.) Step 4 78-10754-03 0A Mounting screw Cisco AS5350 Universal Gateway Chassis Installation Guide Removing the Old Power Supply...

  • Page 80: Power Supply Connectors

    Power Supply Connectors Power supply Step 5 Disconnect both power supply connectors. Disconnect the backplane connector first, followed by the system board connector. (See Figure B-9.) Cisco AS5350 Universal Gateway Chassis Installation Guide Chassis bottom Backplane connector System board connector...

  • Page 81: Disconnecting The Power Connectors From The Backplane

    (See Figure B-10.) Remove the power supply from the chassis. Figure B-10 Lifting the Power Supply Out of the Chassis Front panel 78-10754-03 0A Backplane Power supply Cisco AS5350 Universal Gateway Chassis Installation Guide Removing the Old Power Supply Chassis bottom Chassis bottom...

  • Page 82: Installing The Power Supply

    (See Figure B-12.) The system board connector is located on the system board, below and left of the backplane Note connector. Cisco AS5350 Universal Gateway Chassis Installation Guide Power supply Chassis bottom...

  • Page 83: Reconnecting The Power Cables To The Backplane

    Reinstall the power supply mounting screw. Step 5 Replace the chassis cover using the procedures in the “Replacing the Chassis Cover” section on page B-12. 78-10754-03 0A Backplane Cisco AS5350 Universal Gateway Chassis Installation Guide Installing the Power Supply Chassis bottom Chassis bottom...

  • Page 84: Replacing The Chassis Cover

    The chassis cover side tabs on both sides fit inside the chassis side panels so that they are not exposed. When the chassis cover is properly assembled, no tabs are visible. Secure the chassis cover with five screws. Step 4 Cisco AS5350 Universal Gateway Chassis Installation Guide Chassis cover Chassis bottom Appendix 78-10754-03 0A...

  • Page 85: Power Ratings Label For Ac Power Supply

    78-10754-03 0A 150VA 2 – 1A Power switch Source A - NEG Source A - RTN Source B - NEG Cisco AS5350 Universal Gateway Chassis Installation Guide Replacing the Chassis Cover To DC source DC connector Ground Source B - RTN...

  • Page 86

    Insert the safety ground (green wires) into the DC connector ground connector and tighten the locking screw. Ensure that no bare wire is exposed. Cisco AS5350 Universal Gateway Chassis Installation Guide To DC source DC connector...

  • Page 87

    Regulatory Compliance and Safety Information document that accompanied this device. Power on the universal gateway. Step 9 The internal power supply fan should power on. 78-10754-03 0A Replacing the Chassis Cover Cisco AS5350 Universal Gateway Chassis Installation Guide...

  • Page 88

    Appendix Replacing the Chassis Cover Cisco AS5350 Universal Gateway Chassis Installation Guide 78-10754-03 0A...

  • Page 89: Appendix

    Note This appendix provides cabling information for chassis connections only. For cabling information for the Cisco AS5350 dial feature cards, see the Cisco AS5350 Universal Gateway Card Installation Guide. Note This appendix specifies pinouts only for the pins used. Pins not listed in the tables in this appendix are not connected.

  • Page 90: Identifying A Rollover Cable

    (See Figure C-1.) If your cable was purchased from Cisco Systems, pin 1 will be white on one connector, and pin 8 will be white on the other connector (a rollover cable reverses pins 1 and 8, 2 and 7, 3 and 6, and 4 and 5).

  • Page 91: Rollover Cable

    Terminal Adapter RJ-45 Pin DB-9 Pin RJ-45-to-RJ-45 rollover cable RJ-45-to-DB-25 adapter (labeled TERMINAL) RJ-45-to-DB-25 Terminal Adapter RJ-45 Pin DB-25 Pin Cisco AS5350 Universal Gateway Chassis Installation Guide Console and Auxiliary Port Cables and Pinouts Console Device Signal Terminal Console Device Signal...

  • Page 92: Auxiliary Port Cables And Pinouts

    Connecting the Auxiliary Port to a Modem Universal gateway Table C-3 Auxiliary Port Signaling and Cabling Using a DB-25 Adapter AUX Port (DTE) Signal Cisco AS5350 Universal Gateway Chassis Installation Guide RJ-45-to-RJ-45 rollover cable RJ-45-to-DB-25 adapter (labeled MODEM) RJ-45-to-RJ-45 RJ-45-to-DB-25...

  • Page 93: Ethernet Port Pinouts

    Bantam Jack Port Pinouts Table C-7 Bantam Jack Port Pinouts 78-10754-03 0A Description TXD+ TXD– RXD+ – – RXD– – – Description BITS signal Ground Description Normally open Pole Normally closed Description Ring Cisco AS5350 Universal Gateway Chassis Installation Guide Ethernet Port Pinouts...

  • Page 94

    Appendix Bantam Jack Port Pinouts Cisco AS5350 Universal Gateway Chassis Installation Guide 78-10754-03 0A...

  • Page 95: I N D E X

    Cisco AS5350 Universal Gateway Chassis Installation Guide I N D E X A-10 3-14 A-11 A-10 viii A-12 B-12 IN-1...

  • Page 96

    Cisco AS5350 Universal Gateway Chassis Installation Guide IN-2 console port description console port signaling and cabling using a DB-25 adapter console port signaling and cabling using a DB-9 adapter conventions, document...

  • Page 97

    3-10 Standard Rack-Mount Brackets System Board Layout Tightening Fan Tray Screws Flash memory, replacing Flash memory insertion, caution front panel (figure) front panel illustration (figure) Cisco AS5350 Universal Gateway Chassis Installation Guide A-11 4-10 supply 3-18 A-11 B-11 A-12 B-12...

  • Page 98

    B-10 interface options, LAN and WAN ISDN connection warning jewelry removal warning LAN connections LAN interface options Cisco AS5350 Universal Gateway Chassis Installation Guide IN-4 LEDs alarm (description) BITS port (description) chassis (table) console/Auxiliary (description) descriptions...

  • Page 99

    (figure) replacing the fan tray replacing the power supply, required tools B-14 required tools, rack-mounting required tools, replacing boot ROM required tools, replacing the power supply Cisco AS5350 Universal Gateway Chassis Installation Guide (figure) B-11 3-15 B-11 A-12 B-12...

  • Page 100

    4-12 supported standards, serial ports Symbols Caution viii Note viii Cisco AS5350 Universal Gateway Chassis Installation Guide IN-6 Timesaver A-10 Tips system board layout (figure) system memory, size T1 card, connections Tables 10BASE-T Port Pinouts...

  • Page 101

    (SELV) circuits service personnel telecommunications lines TN power systems trained personnel WAN ports WAN port voltages weight, Cisco AS5350 chassis 78-10754-03 0A 3-19 Cisco AS5350 Universal Gateway Chassis Installation Guide Index IN-7...

  • Page 102

    Index Cisco AS5350 Universal Gateway Chassis Installation Guide IN-8 78-10754-03 0A...
