Installing the Cisco Remote PHY Shelf 7200

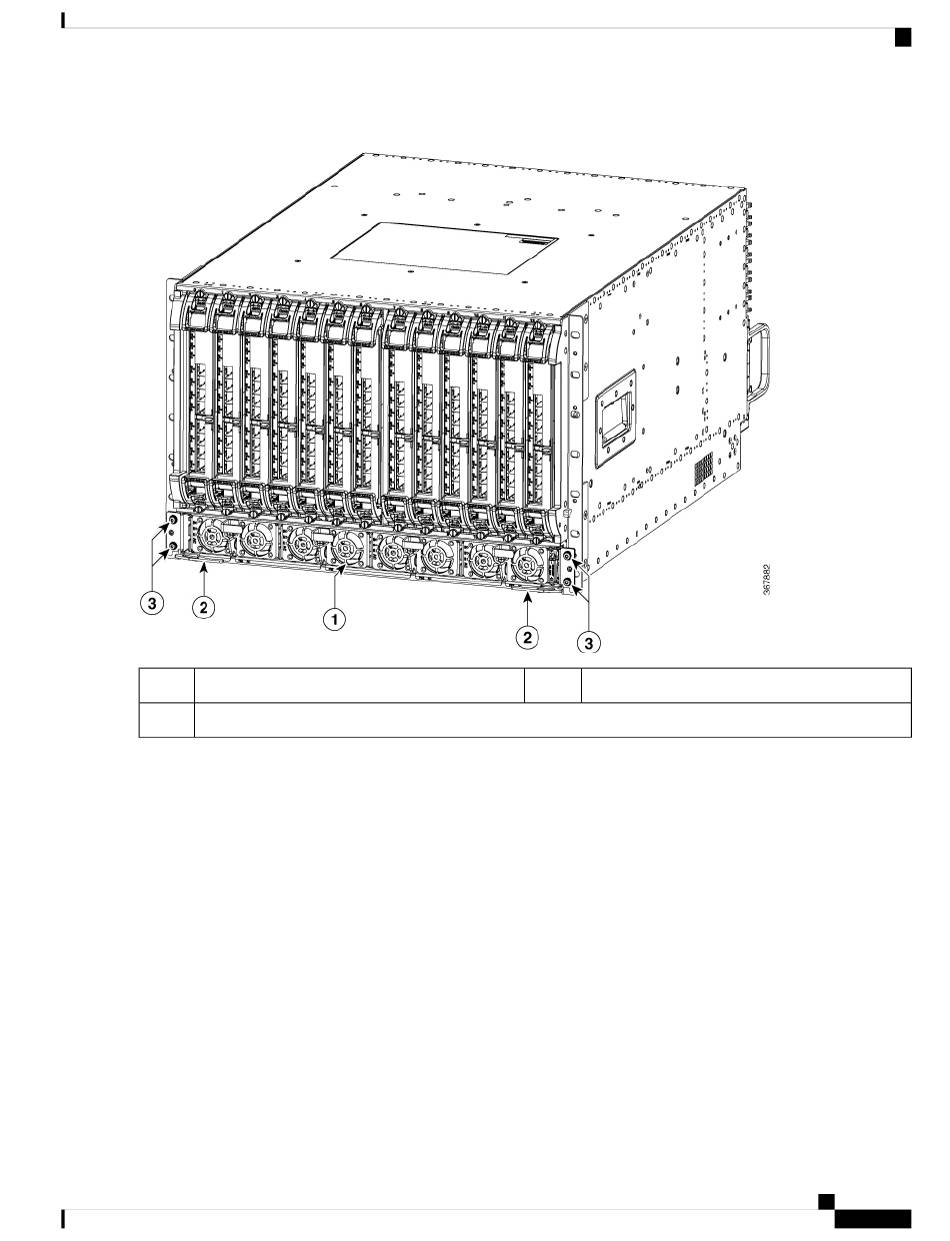

Figure 8: Removing the Front Power Shelf from the Chassis
1
4X AC or DC Power Modules
3
Power Shelf T15 Securing Screws
Step 5
Loosen and remove the four T15 screws on the front power shelf chassis mounting ears using a T15 torx screwdriver.
Save these screws for installation of the new power shelf.
2
Power Shelf Ejectors
Installing the Cisco Remote PHY Shelf 7200
Installing the Power Shelf
25
