Installing the Cisco Remote PHY Shelf 7200 in a Four-Post Rack
Step 6

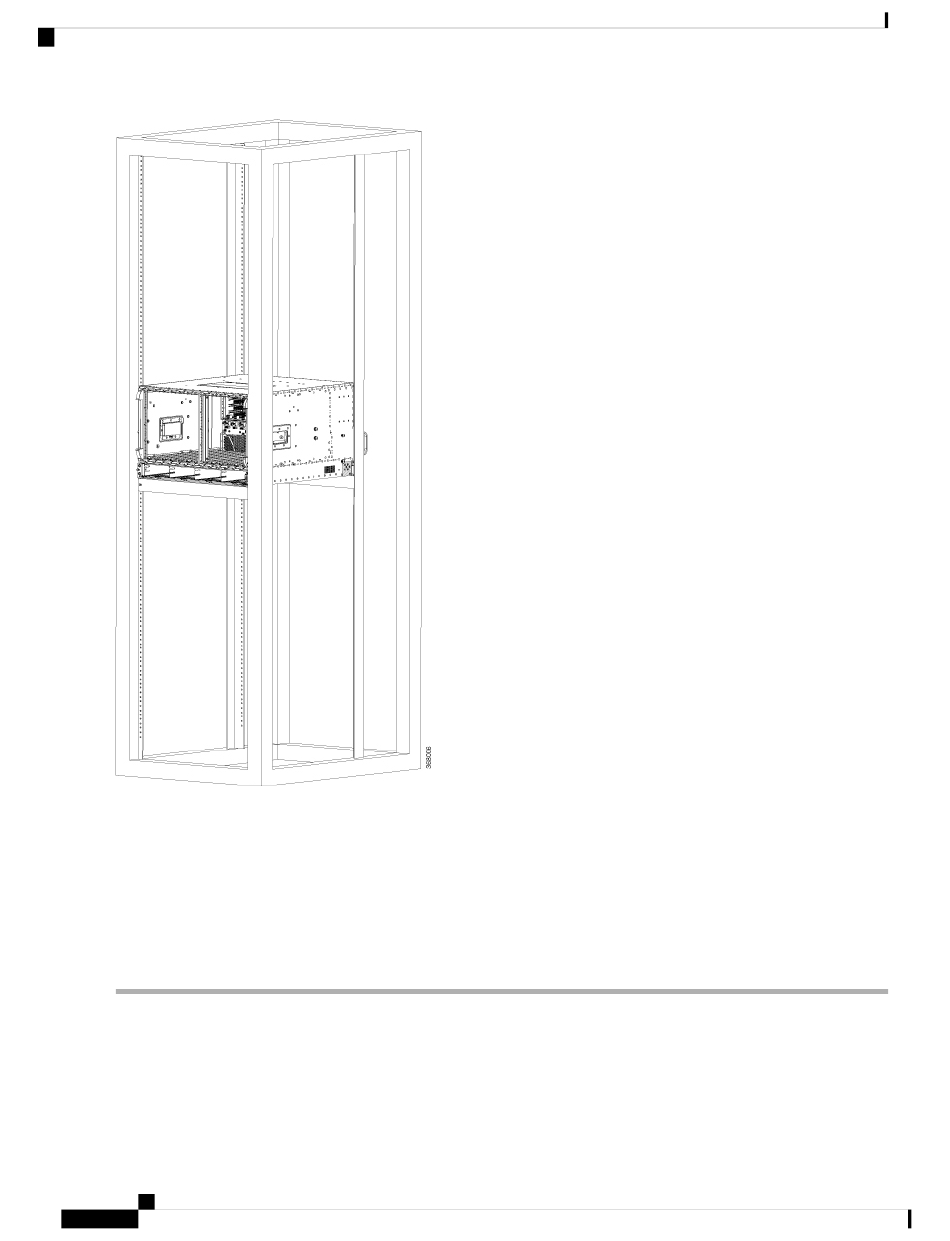

Hold the chassis in position against the mounting rails and do the following:
a) Insert a bottom screw into the rack mount ear on each side and use a hand-held screwdriver to tighten the screw to
the rack rail.
b) Insert a top screw into each side rack mount bracket and tighten the screw to the rack rail.
Insert a minimum of four screws per bracket on both sides of the chassis.
Note Install a minimum of 4 screws through each sides rack mount into the rack rails for proper support.
What to do next
• If necessary, remove the chassis installation brackets after ensuring that all screws are tightly secured to
•
Installing the Cisco Remote PHY Shelf 7200
8
the rack unit.
Attaching the Cable-Management Bracket, on page
Installing the Cisco Remote PHY Shelf 7200
11.
