Installing the Cisco Remote PHY Shelf 7200

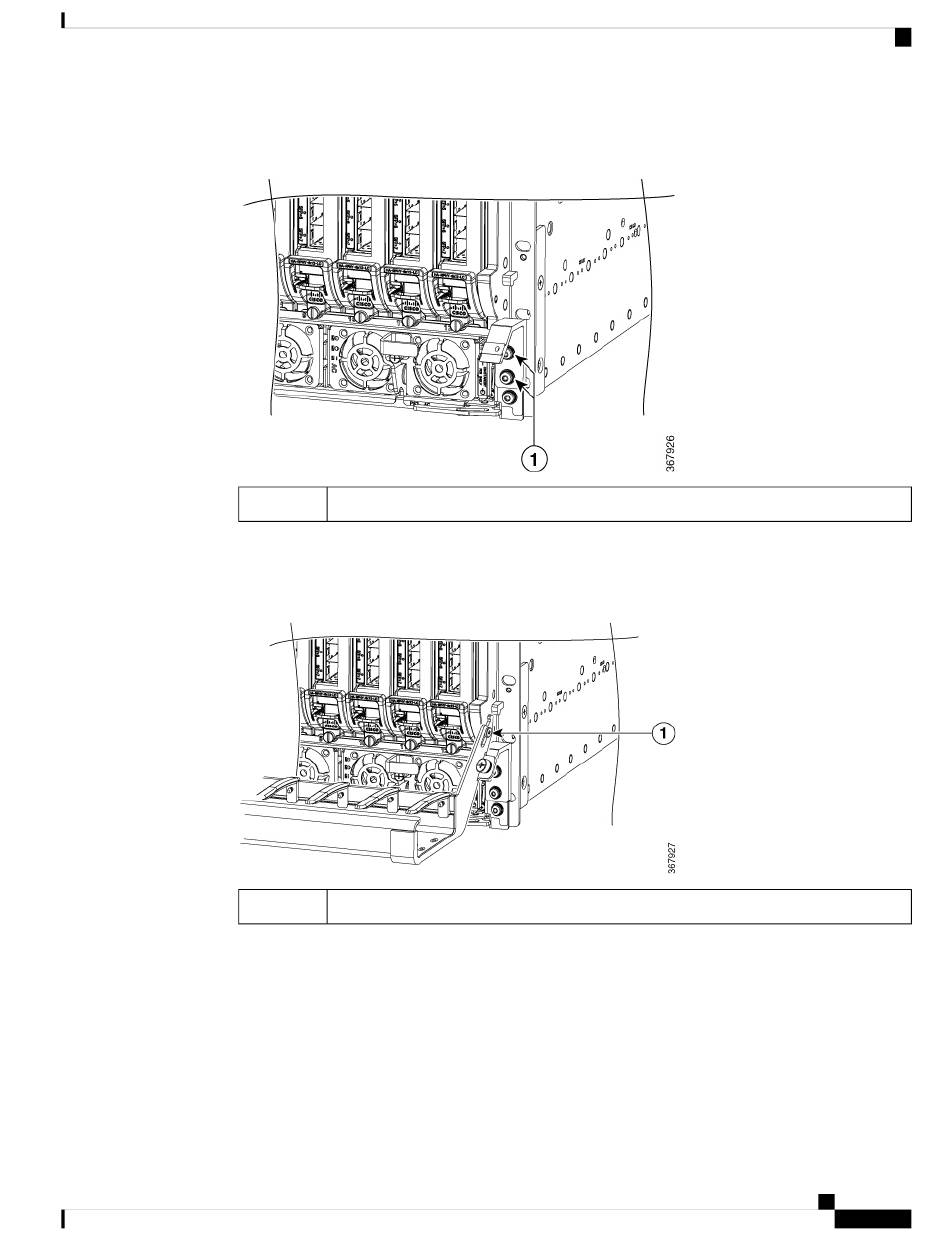

3. Install the right and left cable management support brackets onto the power shelf flanges as shown in the
following image. Secure the bracket with four T15 Torx screws. Tighten to 6-8 Lb-In torque.
1
4. Install the shoulder screws through the cable management tray slots and into the chassis side bezel threaded
holes. Secure the shoulder screw using a T10 Torx screwdriver, tighten to 5-6 Lb-In torque.
Figure 5:
1
5. Orient the cable tray and secure the two captive screws to the support brackets by hand.
You can feed the optical cables into the tray through the tray retaining fingers as shown in the following figure.
Cables can be routed left or right through the tray.
T15 Drive Screws
Shoulder Screw
Installing the Optical Cable Management Kit (Optional)
Installing the Cisco Remote PHY Shelf 7200
