Installing the Cisco Remote PHY Shelf 7200
Installing the Cisco Remote PHY Shelf 7200 in a Two-Post Rack
Step 7

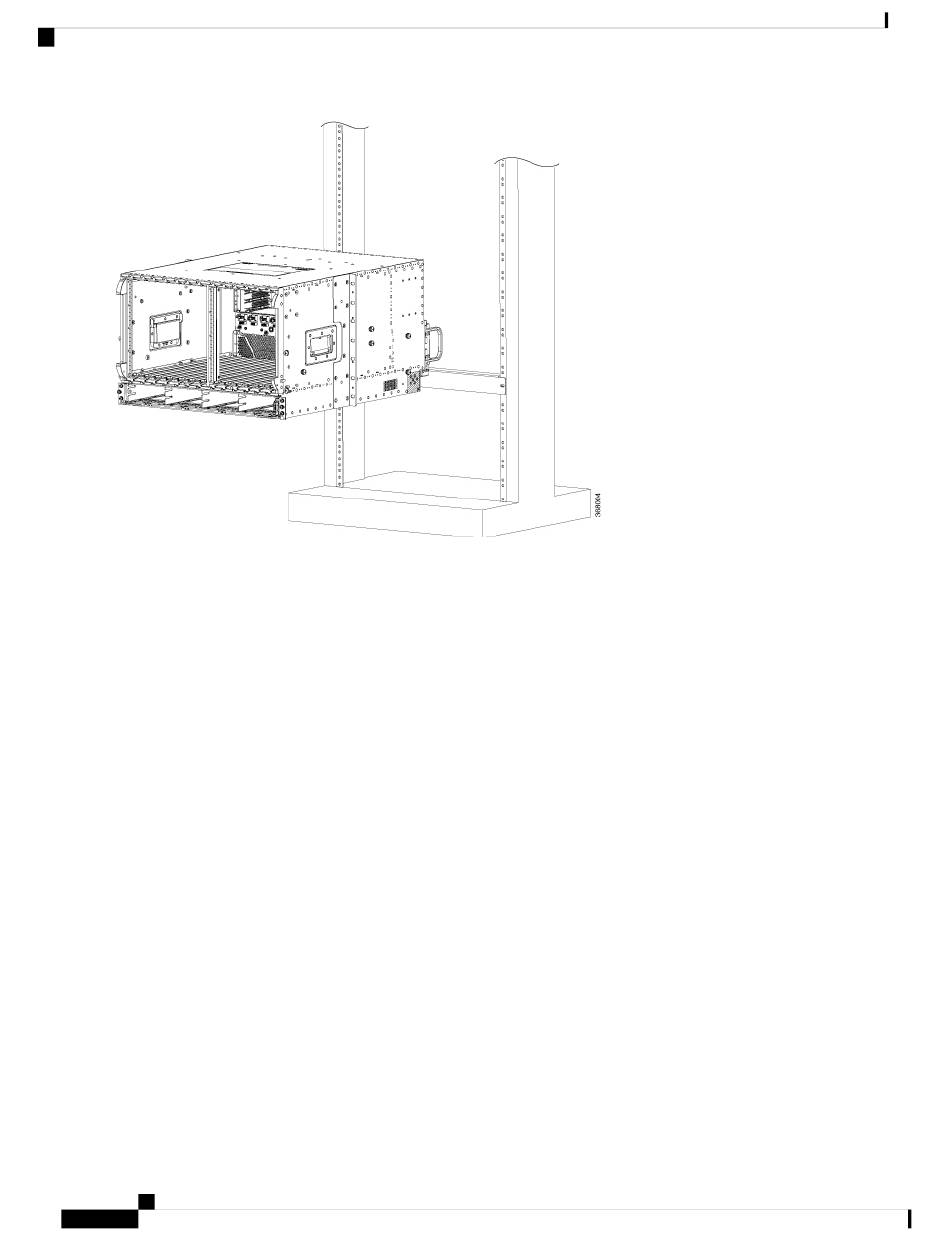

Hold the chassis in position against the mounting rails and do the following:
a) Insert a bottom screw into the rack mount ear on each side and use a hand-held screwdriver to tighten the screw to
the rack rail.
b) Insert a top screw into each side rack mount bracket and tighten the screw to the rack rail.
c) Insert a minimum of four screws per bracket on both sides of the chassis.
