Installing the Cisco Remote PHY Shelf 7200

Attaching the Cable-Management Bracket

Note

The chassis will not fit through a 19-inch rack rail opening with the cable management system pre-installed.

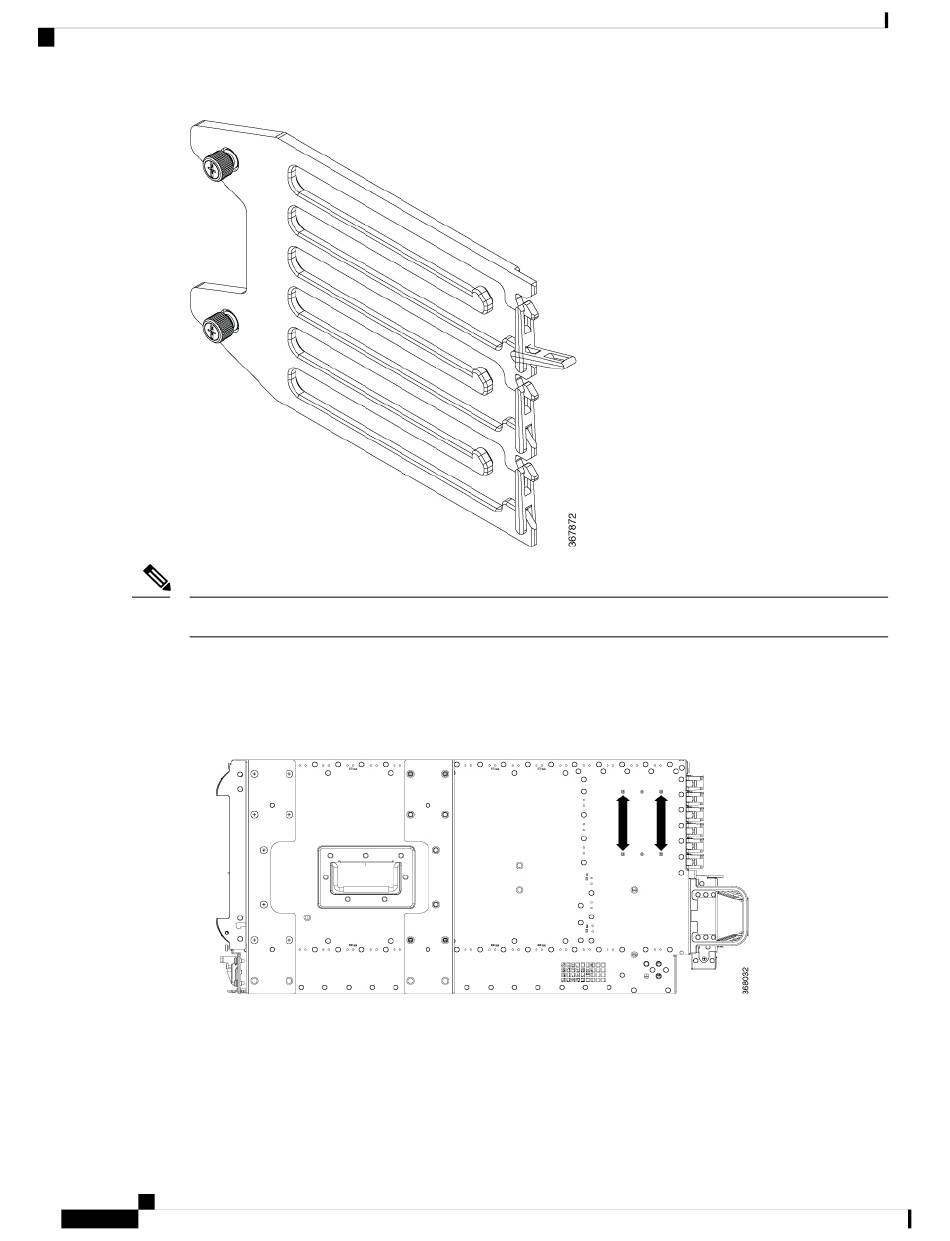

Complete the following steps to install the Cable-Management Bracket:

1. Install the chassis into the rack.

2. Align the RF left side RF cable management to a set of holes on the side of the chassis. There are three

mounting positions on the chassis depending on the number of cables that are required to be supported.

3. Secure the left side RF cable management using the thumb screws on the bracket.
