Hardware dimension

The mini module has the following dimensions:
• PCB area: 127 mm x 114.3 mm
• Top components height: 20 mm max
• Bottom components height: 3.5 mm max
• PCB thickness: 1.6 mm
UM2725 - Rev 1

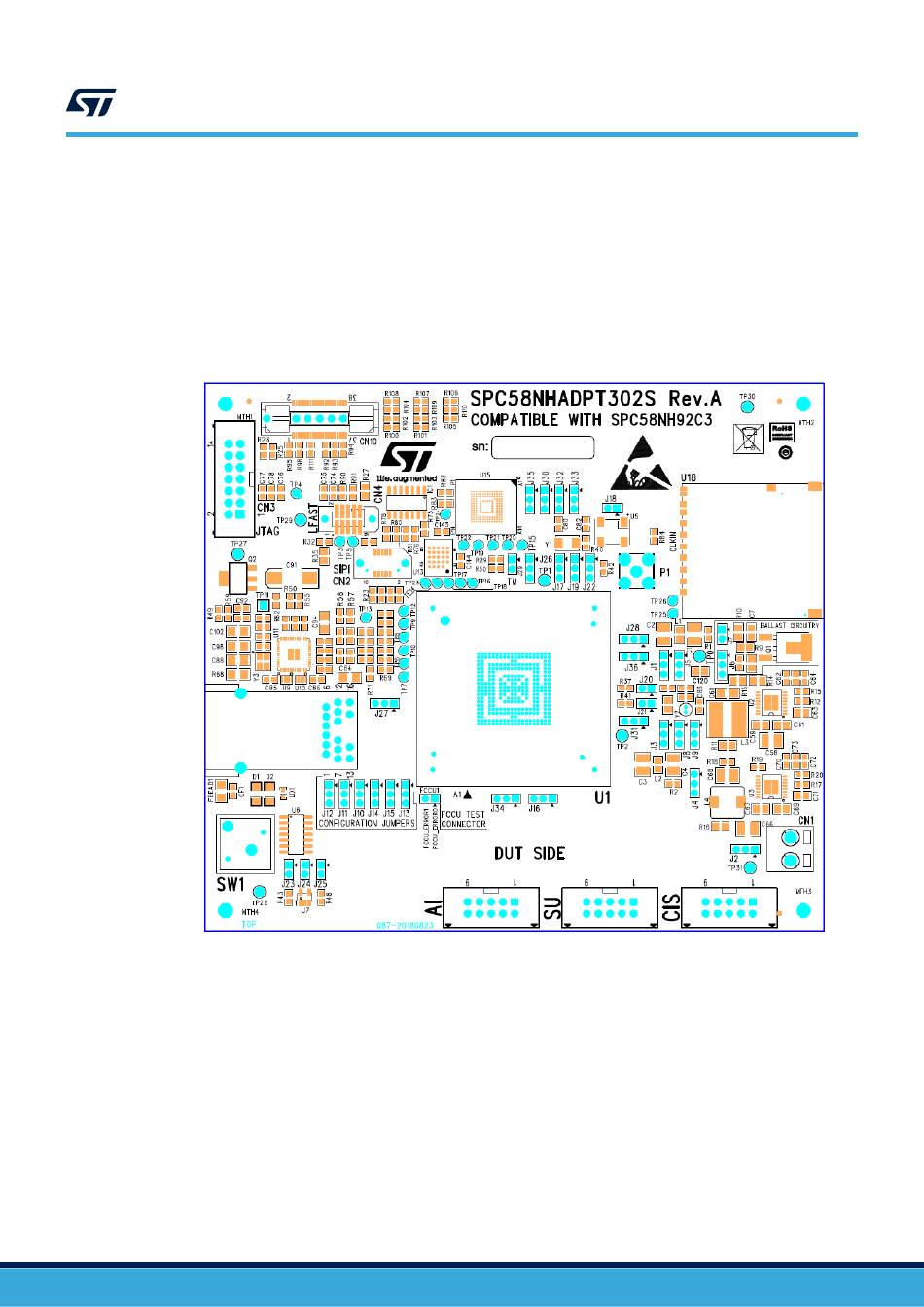

Figure 2. SPC58NHADPT302S Rev. A top component view
