UM2841
User manual
SPC570SADPT64S rev. B evaluation board
Introduction
The
SPC570SADPT64S rev. B
"mini module" is an evaluation board supporting STMicroelectronics SPC570S50E1 device in
eTQFP64 package.

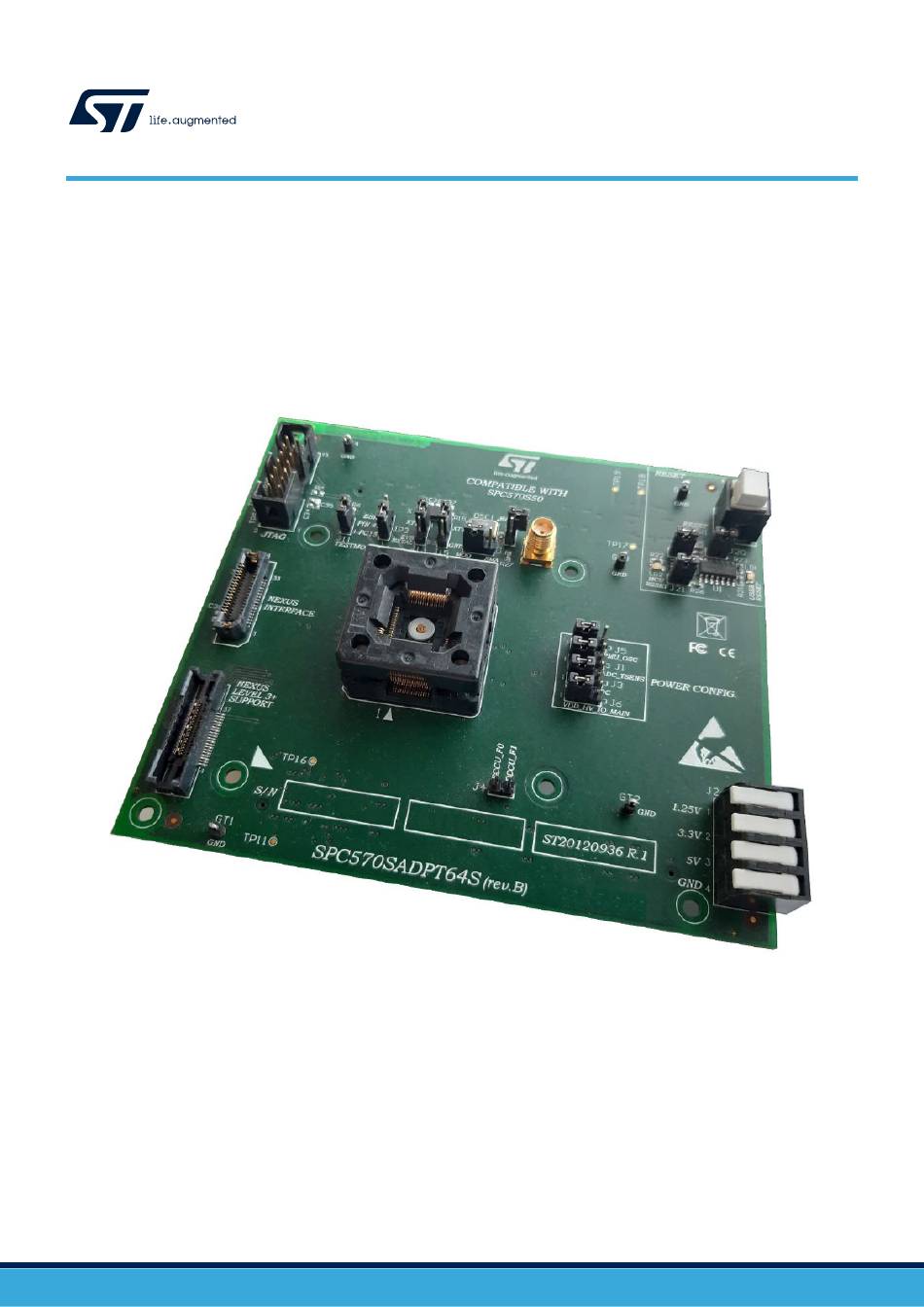

Figure 1.
SPC570SADPT64S rev.B
Note:
picture is not contractual.
UM2841 - Rev 1 - April 2021
www.st.com
For further information contact your local STMicroelectronics sales office.
Advertisement
Table of Contents
Related Manuals for STMicroelectronics SPC570SADPT64S rev. B
Summary of Contents for STMicroelectronics SPC570SADPT64S rev. B
-
Page 1: Figure 1. Spc570Sadpt64S Rev.b
UM2841 User manual SPC570SADPT64S rev. B evaluation board Introduction SPC570SADPT64S rev. B "mini module" is an evaluation board supporting STMicroelectronics SPC570S50E1 device in eTQFP64 package. Figure 1. SPC570SADPT64S rev.B Note: picture is not contractual. UM2841 - Rev 1 - April 2021 www.st.com... -
Page 2: Overview
The "mini module" may be used as a stand-alone unit allowing access to the CPU, but no access to the I/O pins as any motherboard peripherals. Figure 2. Overview of SPC570SADPT64S rev. B mini module - top UM2841 - Rev 1 page 2/28... -
Page 3: Package Contents
Package contents An SPC570SADPT64S rev. B adapter package includes the following items: • SPC570SADPT64S rev. B evaluation board Supported devices The SPC570SADPT64S rev. B evaluation board supports STMicroelectronics family of microcontrollers in eTQFP64: • SPC570S50E1 UM2841 - Rev 1 page 3/28... -
Page 4: License Agreement
". Upon breaking the seal, you and STMicroelectronics entered into the evaluation board license agreement, a copy of which is also enclosed with the evaluation board for convenience. -
Page 5: Handling Precautions
UM2841 Handling precautions Handling precautions Please take care to handle the package content in order to prevent electrostatic discharge. Before the EVB is used or power is applied, please fully read the following sections on how to correctly configure the board. Failure to correctly configure the board may cause irreparable component, MCU or EVB damage. UM2841 - Rev 1 page 5/28... -
Page 6: Hardware Description
UM2841 Hardware description Hardware description Hardware features The SPC570SADPT64S rev. B "mini module" board has the following features: • Can be used as a stand- alone board by providing external power supplies input (5 V, 3.3 V) • Reset button with driver and led indicator •... -
Page 7: Power And System Configuration
"mini module" should NOT be used. When the SPC570SADPT64S rev. B "mini module" is used as a stand-alone board, external power supplies must be used (5 V, 3.3 V, 1.25 V). -
Page 8: Port Configuration
UM2841 Port configuration Port configuration The following jumpers need to configure the ports: Table 2. Ports related jumpers Jumper Description Default Position VDD_LV2 configuration for external 1.25 V use: • Open: TESTMODE not connected • Closed: TESTMODE connected to: Close (default pull-down) Figure 10 - A2 –... -
Page 9: Table 5. Jtag Header 2X7 Pins Connector Pinout
UM2841 Connectors The following Figure 5 shows the JTAG connector schema: Figure 5. JTAG connector schema The following Table 5 shows the JTAG connector pinout: Table 5. JTAG Header 2x7 pins connector pinout Pin number Signal EVTI N.C. PORST VDD HV IO MAIN EVTO N.C. -
Page 10: Table 6. Nexus Samtec Asp-137973-01 Connector Pinout
UM2841 Connectors Figure 6. NEXUS SAMTEC ASP-137973-01 The following Table 6 shows the NEXUS SAMTEC ASP-137973-01 connector pinout: Table 6. NEXUS SAMTEC ASP-137973-01 connector pinout Pin number Signal N.C. 3.3 V N.C. TX1P TX1N JCOMP N.C. N.C. N.C. EVTI UM2841 - Rev 1 page 10/28... -
Page 11: Figure 7. Aurora Schema
UM2841 Connectors Pin number Signal EVTO N.C. PORST N.C. ESRO N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. The following Figure 7 shows the NEXUS Level 3+ schema: Figure 7. AURORA schema UM2841 - Rev 1 page 11/28... -
Page 12: Table 7. Nexus Level 3+ Connector Pinout
UM2841 Connectors The following Table 7. Nexus level 3+ connector pinout shows the Nexus level 3+ connector pinout: Table 7. Nexus level 3+ connector pinout Pin number Signal Not connected Not connected Not connected Not connected Not connected TRACE_D2_P Not connected TRACE_D2_N Not connected TRACE_D0_P... -
Page 13: Table 8. Fccu Connector Pinout
UM2841 Connectors Pin number Signal Not connected The following Figure 8 shows the FCCU (Fault Collection and Control Unit) connector schema: Figure 8. FCCU connector schema Table 8. FCCU connector pinout Pin number Signal FCCU_F0 FCCU_F1 The following Figure 9 shows the external power supply connector schema: Figure 9. -
Page 14: Table 9. External Power Supply Connector Pinout
UM2841 Connectors Table 9. External power supply connector pinout Pin number Signal 1.25 V 3.30 V UM2841 - Rev 1 page 14/28... -
Page 15: Test Points
Test points Test points Several test points of different shape and functionality are scattered around the SPC570SADPT64S Rev. B evaluation board to allow easy access to MCU and reference signals. This chapter summarizes and describes the available test points. Test points are listed and detailed in the following Table Table 10. -
Page 16: Layout Overview
UM2841 Layout overview Layout overview Figure 10. SPC57SADPT64S Rev.B top "mini module" overview UM2841 - Rev 1 page 16/28... -
Page 17: Figure 11. Spc57Sadpt64S Rev.b Bottom "Mini Module" Overview
UM2841 Layout overview Figure 11. SPC57SADPT64S Rev.B bottom "mini module" overview UM2841 - Rev 1 page 17/28... -
Page 18: Bom
UM2841 Table 11. Item Qty. Reference Value Option Description CCERSMD105-0805M 1 µF Mult. cer. cap. 50 V SMD0805 C2, C5, C8, C10, C13, C15, C16, CCERSMD104-0603M 100 nF Mult. cer. cap. 50 V SMD0603 C19, C26, C29, C32, C39 C3, C9, C18 CCERSMD102-0603V 1 nF Mult. - Page 19 UM2841 Item Qty. Reference Value Option Description LEDSMDGIAL-0805 Yellow Led diode yellow SMD0805 LEDSMDRED-0805 Led diode red SMD 0805 Hybrid quartz Osc SMD ECS OSC1 Q8MHZ-SMD-3953M 8 MHz 3953M RESMD100-805 Resistor 1/10 W 1% SMD 0805 Resistor 1/10 W 1% SMD 0603 R4, R5, R25 RESMD472-0603 Resistor 1/10 W 1% SMD 0603...
-
Page 20: Schematics
Schematics Figure 12. Power and decoupling 5.0V_LR 3.3V_SR 5.0V_SR 1.25V_SR DEFAULT 1-2 CLOSED VREFH_ADC STRIP3PM 1/10W 1.25V_SR 3.3V_SR 5.0V_SR 100nF 0805 100V 0805 0603 0603 5.0V_LR DEFAULT 1437671-6 1-2 CLOSED VDD_HV_ADC_TSENS STRIP3PM 470nF 100nF 1nF DNP NOT MOUNTED 100V 0805 0603 0603 VDD_HV_PMU_OSC... -
Page 21: Figure 13. Signals
Figure 13. Signals TP3 TP4 TP5 TP6 PE[0..15] PE[0..15] DUT1B PE[2] PE[3] / MSEO PA[0..15] PA[0..15] PE[5] / MDO3 PE[6] / MDO2 PE[7] / MDO1 PE[8] / MDO0 PA[0] PA[3] PE11 PA[4] PE[11] / MCKO PA[7] PA[8] PE14 PA[9] PE[14] / EVTO PA11 PA[11] PA12... -
Page 22: Figure 14. Reset, Jtag, Nexus Level 3+ Support, Nexus Interface And Crystal Oscillator
Figure 14. Reset, JTAG, Nexus level 3+ support, Nexus interface and crystal oscillator VDD_HV_IO_MAIN Jtag interface JTAG Connector NOT MOUNTED 0R DNP 1/10W 0603 EVTI EVTI PORST PORST EVTO EVTO EVB-EXTAL N2514-6002RB NOT MOUNTED 47pF DNP 27pF STRIP3PM EXTAL EXTAL DEFAULT 0603 0603... - Page 23 Figure 15. Daughter card to motherboard connectors PortA PortB PortC PortD PortE PA[0..15] PB[0..15] PC[0..15] PD[0..15] PE[0..15] PA[0..15] PB[0..15] PC[0..15] PD[0..15] PE[0..15] PB10 PD10 PA11 PB11 PC11 PD11 PE11 PA12 PA13 PA14 PB14 PD14 PE14 PB15 PC15 PD15 PE15 J23B J24B J23A 5.0V_LR...
-
Page 24: Revision History
UM2841 Revision history Table 12. Document revision history Date Version Changes 06-Apr-2021 Initial release. UM2841 - Rev 1 page 24/28... -
Page 25: Table Of Contents
UM2841 Contents Contents Overview ................2 Package Contents. - Page 26 UM2841 List of tables List of tables Table 1. Power configuration jumpers ............7 Table 2.
- Page 27 Overview of SPC570SADPT64S rev. B mini module - bottom ....... .
- Page 28 IMPORTANT NOTICE – PLEASE READ CAREFULLY STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement.
