Connecting The Peripheral; Connector Pin Assignment; 50-Pin Sub-D Male Front Connector St1; Fig. 8-1: Pin Assignment: Apci-3701-16 - Addi-Data APCI-3701 Technical Description

APCI-3701
8

CONNECTING THE PERIPHERAL

8.1

Connector pin assignment

8.1.1 50-pin SUB-D male front connector ST1

Signal
OSC+ (Red pins) or
OSC- (Blue pins)
BACK+ (green pins) or
BACK- (yellow pins)
CHx (white pins)
PWRGND (black pins)

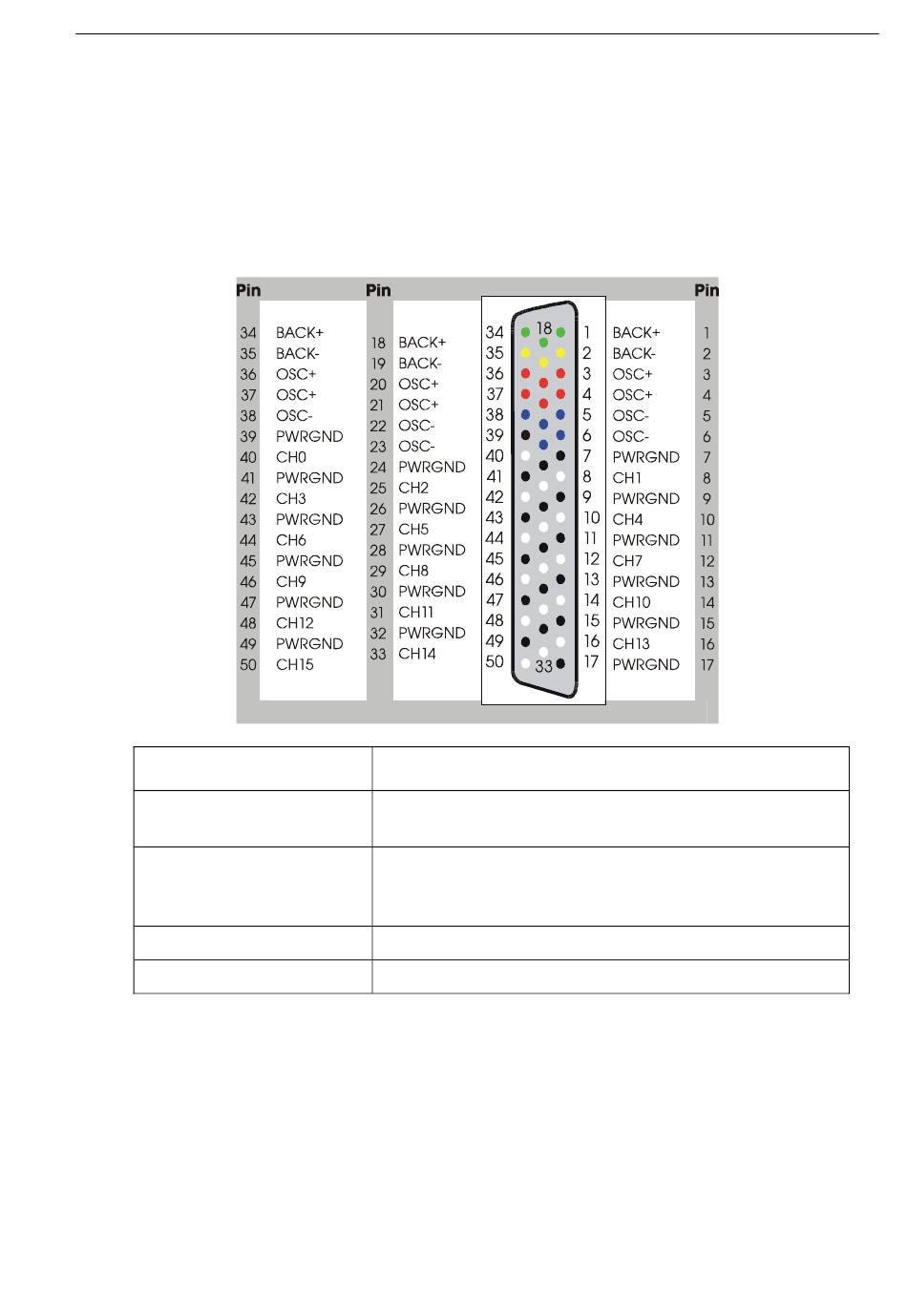

Fig. 8-1: Pin assignment: APCI-3701-16

phase-shifted supply signal of the inductive transducers
Return lines of the supply voltage for measuring the
amplitude. It serves as true value signal of the oscillator
for the supply voltage.
Transducer input and input number
Ground
Connecting the peripheral
Meaning
