Transducer Monitoring Menu; Acquisition; Fig. 11-10: Monitoring Menu - Addi-Data APCI-3701 Technical Description

APCI-3701

11.7.1 Transducer monitoring menu

Starts the monitoring
Selects all channels
Transducer monitoring
help

11.7.2 Acquisition

You can select one or more channels for the monitoring. For each channel you can
select any available transducer type. The commands "Select all" and "Unselect
all" enable the selection of all channels by one click. The acquisition rate depends
on the number of channels to be acquired. For starting the monitoring click on
"Start". You can stop the monitoring at any time with "Stop".
After having started the monitoring, you can open a trend graphics window for
one channel. To do this, double-click on the selected channel result.

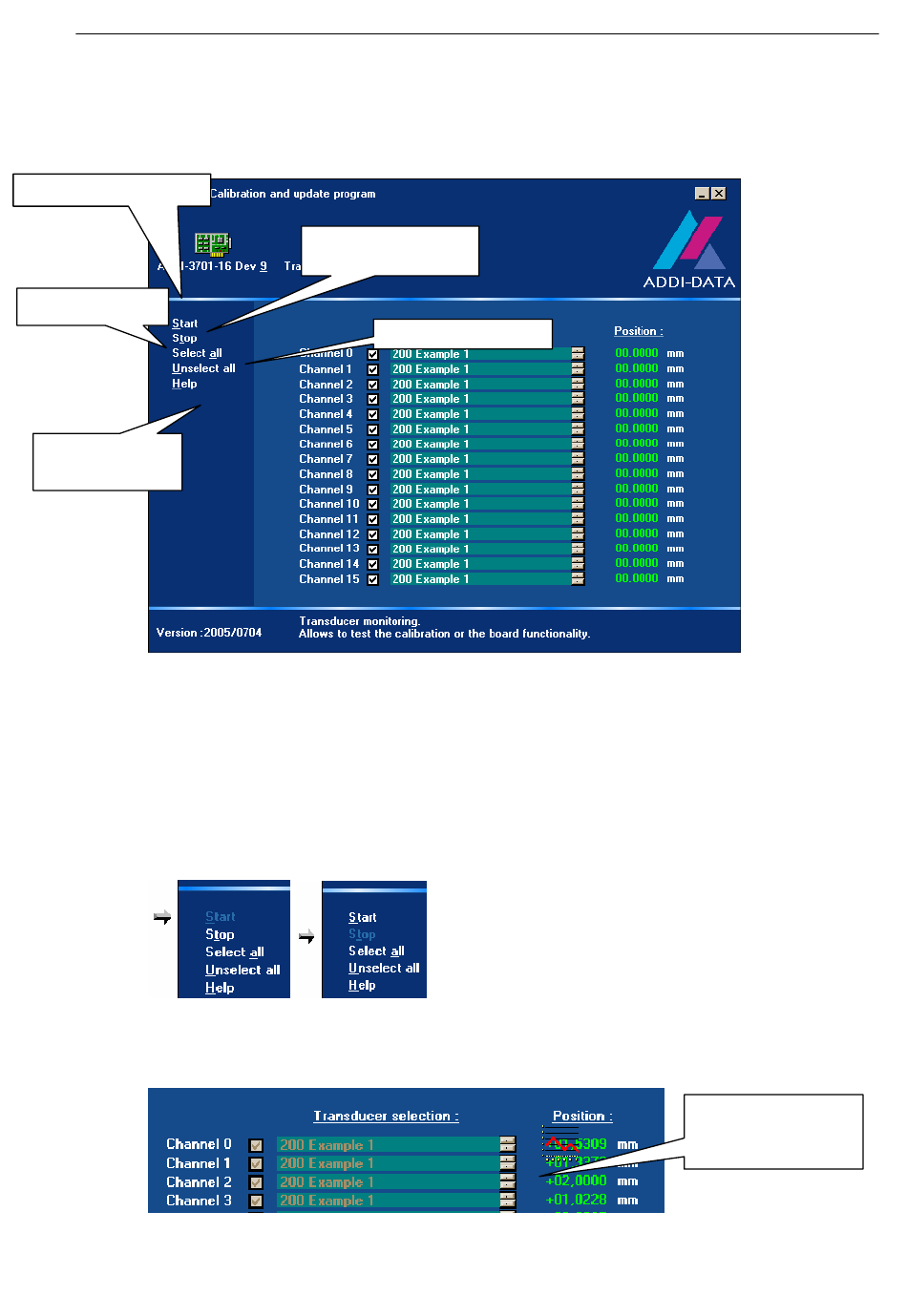

Fig. 11-10: Monitoring menu

Stops the monitoring
Unclicks all channels
SET3701: Calibration and update tool
Double-click to open
the graphics
