APCI-3701
4.3

Versions

The board APCI-3701 is available in the following versions:
Standard
APCI-3701-16
APCI-3701-8
Please observe:
If you use LVDT transducers ≥±1 mm, please use the version
APCI-3701-LVDT+.
4.4

Limit values of the standard version

Max. altitude: ............................................ 2000 m
Operating temperature: .............................. 0 to 60°C
Storage temperature: ................................. -25 to 70°C
Relative humidity: ..................................... 30% to 99% non condensing
Minimum PC requirements:
PCI BIOS from Version 1.0
Bus speed: ................................................. < 33 MHz
Operating system: ..................................... Windows NT, 98, 2000, XP
Slot: ........................................................... PCI 5 V or PCI 3.3 V, 32-bit
PCI bus interface
Bus speed: ................................................. < 33 MHz
Data access: ............................................... 32-bit
Decoding: .................................................. in 32-byte I/O address range
1
Since the switching to RoHS-compliant products, the position of Pin 1 changed (see figure)
Version Number of connected

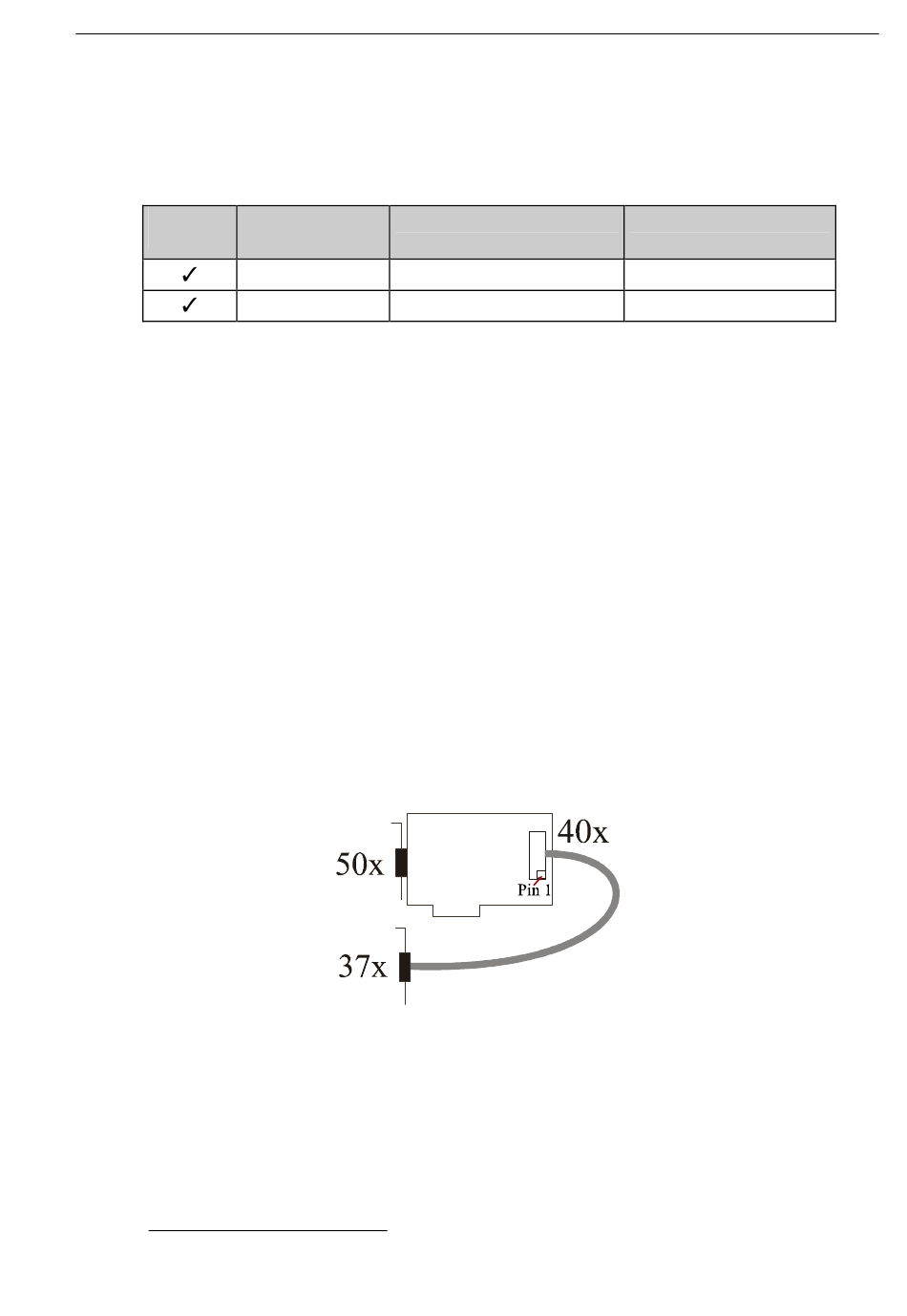

Fig. 4-1: Required slots

transducers
16
8
+ 1 slot opening for connecting
the digital I/O
1
of the PC
in 256-byte memory range
of the PC
Technical data
Number of connected
digital I/O
8 inputs and 8 outputs
8 inputs and 8 outputs
13
