Addi-Data APCI-3701 Technical Description page 3

Solutions for industrial automation and measurement
___________________________________________________________________________________________________
3. Position Pin 1 of the connector ST3
Old:
APCI-3701 before the change to
RoHS-compliant

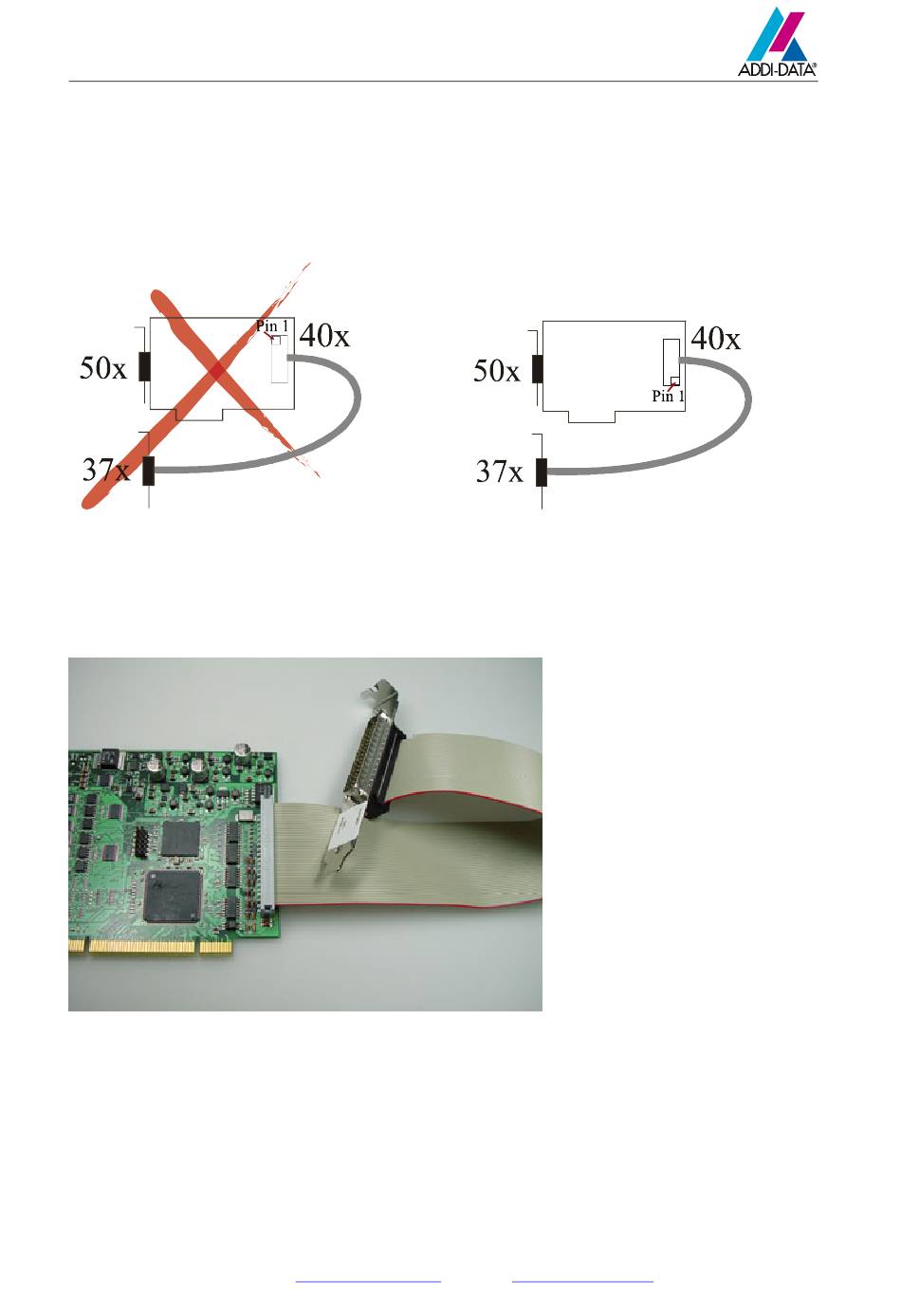

4. New cable FB3702
The ribbon cable FB3702 replaces the cable FB3701.
Connection new cable FB3702
Connection FB3701:
Should you still have a FB3701 cable and want to use it, please do observe also the
new position of Pin 1 and that the red cable line must be connected to Pin 1 (right
side below). Therefore you must turn the cable. Thus, we recommend you to use the
new cable FB3702 – for an easy connection.
ADDI-DATA GmbH • Dieselstr. 3 • D-77833 Ottersweier • Phone +49(0)72 23 / 94 93-0 • Fax: +49(0)72 23 / 94 93-92
E-Mail: info@addi-data.com
New:
APCI-3701 after the change to
RoHS-compliant
